Steel Floor Decking Panel Roll Forming Machine parameters

Feeding platform

1 Frame structure: steel plate welded
2 roller flatting system and pre-hand cutting system
3 Advantage: not scratch the surface of metal plate

Roll forming M/C

1 Machine weight: 13 tons
2 Installation dimensions: 1500*1800*1500mm
3 Machine under frame: steel 400 H-beam
4 Sidewall: 45# steel plates
5 Roller stations: 28 rows
6 Shaft diameter: 85mm
7 Side wall plate: 24mm
8 Main shaft material: 45# steel with finish turning
9 Roller material: 45# forging steel with chromium plate
10 Chromium plate thickness: 0.05mm
11 Motor power: 15kW*2, brand Siemens
12 Reducer type: 2-8# gear speed reducer-Shanghai, China
13 Chain wheel and cycle chain: 1.2-inch
14 Production line speed: 10-12m/minutes

PLC control system

1

Functions: adapts quantity cutting system, length of roof sheet can be set on the computer

2 Tolerance: within 1.0mm
3

Frequency converter: Delta

4

PLC is Siemens

5

Encoder: Omron

6

Touchscreen: Delta

7

Voltage standard: 3 phases 380V/50Hz or according to customer’s need

8

Pressing die material: Cr12

 Hydraulic pressing device

1

Quenched treatment 58 to 62ºC

2

Length tolerance: ±2mm

3

Pump station motor: 5.5kW, LICHAO, Shanghai

4

Hydraulic oil: 40#

Hydraulic cutting device

1

Functions: adapts electric drive and automatic location system to decide the dimension and cut the target

2

Working method: stop to post then post to cut

3

Cutting mold material: Cr12

4

Quenched treatment 58 to 62°C

5

Length tolerance: ±2mm

6

Pump station motor: 5.5kW, LICHAO, Shanghai

Machine photos

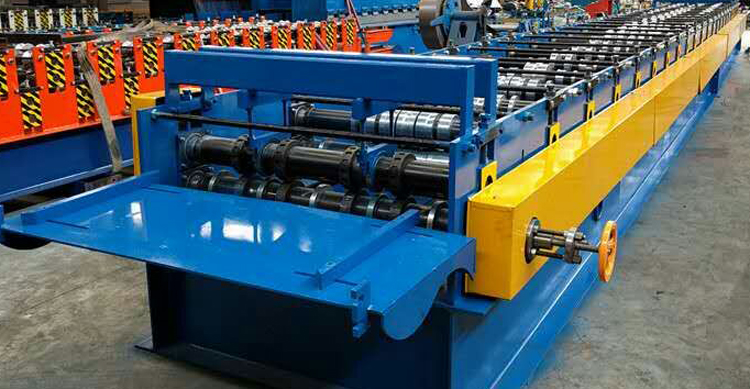

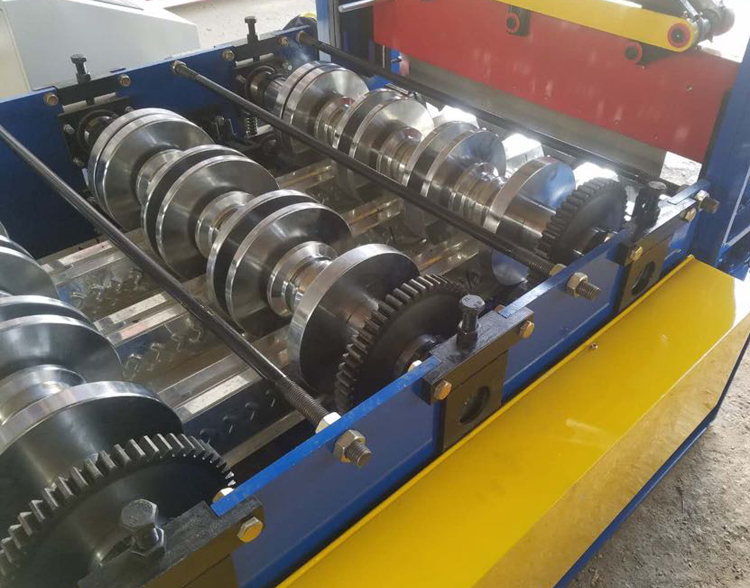

floor deck machine1 floor deck machine2
