Vertical Arch Roof Sheet Crimping Panel Curving Machine

Short Description:

Suitable Material

Colored or galvanized steel coil, HRB60 or equivalent

Material thickness

0.3-0.8 mm

Coil Width Range

914, 1000, 1220 or 1250 mm, or according to your actual drawing.

Mold material

#45 HRC 55-60

Control system

It is controlled by PLC


Product Detail

Product Tags

Main parameters of vertical arch roof sheet crimping panel curving machine

Name

Vertical arch roof sheet crimping panel curving machine

Suitable Material

Colored or galvanized steel coil, HRB60 or equivalent

Material thickness

0.3-0.8 mm

Coil Width Range

914, 1000, 1220 or 1250 mm, or according to your actual drawing.

Mold material

#45 HRC 55-60

Control system

It is controlled by PLC

Speed

10 m/min

Main motor power

1.5 Kw

Electric Power

380V, 50 Hz, 3 phase or according to your need.

Dimension

About 2.6*1.6*1.2m(L*V*H), as per the drawing

Weight

0.8T

Feeding way

Follow the machine feeding, and also need person as an assistant

Cutting

Automatically stop and cutting when it comes to the set length.

Length of the Sheet

You can set the length according to your need;
length accuracy: ±1mm.

The advantages of curving roof machine:

1. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.

2. Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, maintenance-free.

3. We can make and designs will kinds of roll forming machine according to customer’s request.

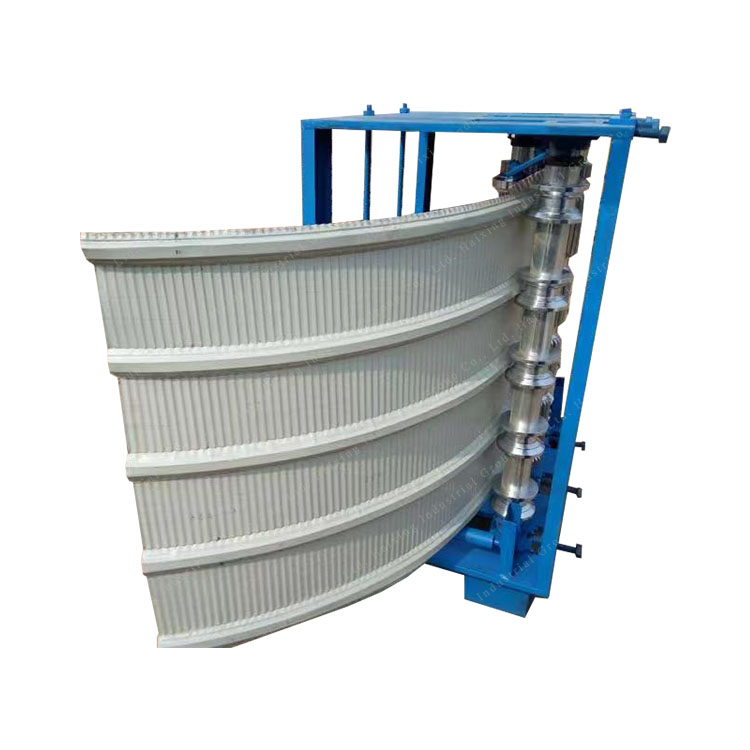

Machine photos:

roof curving machine(1)

roof curving machine(2)

Terms:

1. Delivery: within 60 days after receiving the deposit.

2. Package: export standard package for container.

3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
