The trapezoidal tile double roll forming machine adopts high-level automatic control software to realize production information management.
Parameters of double layer roll forming machine
| 1 |
Main motor power |
4kW, 3-phase or as your requests |
| 2 |
Hydraulic motor power |
3kW |
| 3 |
Hydraulic pressure |
10-12MPa |
| 4 |
Voltage |
380V/3-phase/50Hz (or as your requirements) |
| 5 |
Control system |
PLC delta inverter |
| 6 |
Mainframe |
300/350mm H-beam or 350mm |
| 7 |
Backboard thickness |
16mm |
| 8 |
Chain size |
1 Inch |
| 9 |
Feeding material |
color steel coils |
| 10 |
Feeding thickness |
0.3-0.8mm |
| 11 |
Feeding width |
1000mm |
| 12 |
Effective width |
840mm, 850mm |
| 13 |
Productivity |
0-15/min |
| 14 |
Roll station |
13 roll steps (according to different design) |
| 15 |
Roller diameter |
70mm (depends on different design) |
| 16 |
Roller material |
45# steel |
| 17 |
Cutter material |
Cr12 |
| 18 |
Cr-plating size |
0.05mm |
| 19 |
Overall size |
6800*1400*1150mm |
| 20 |
Total weight |
4.8 tons |

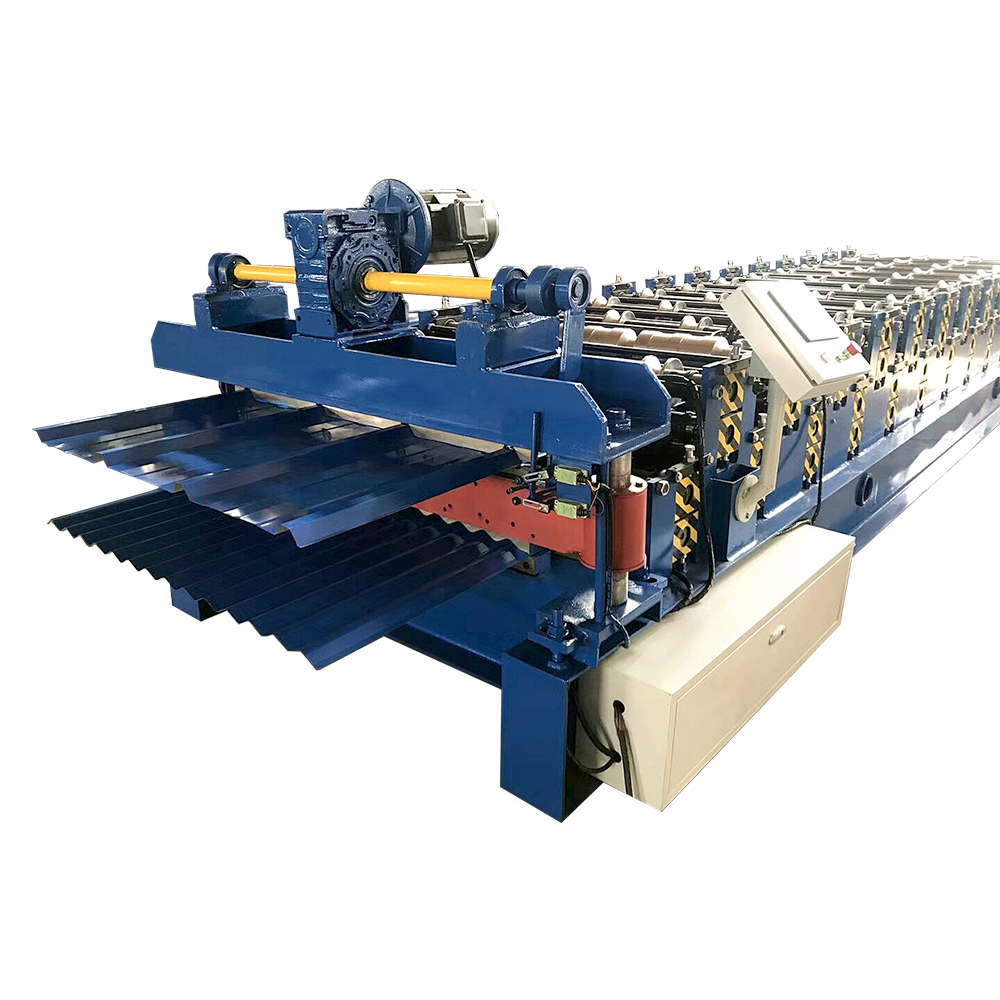

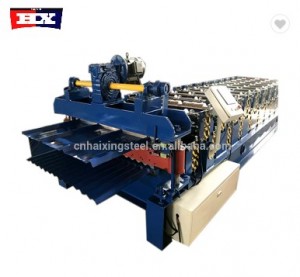

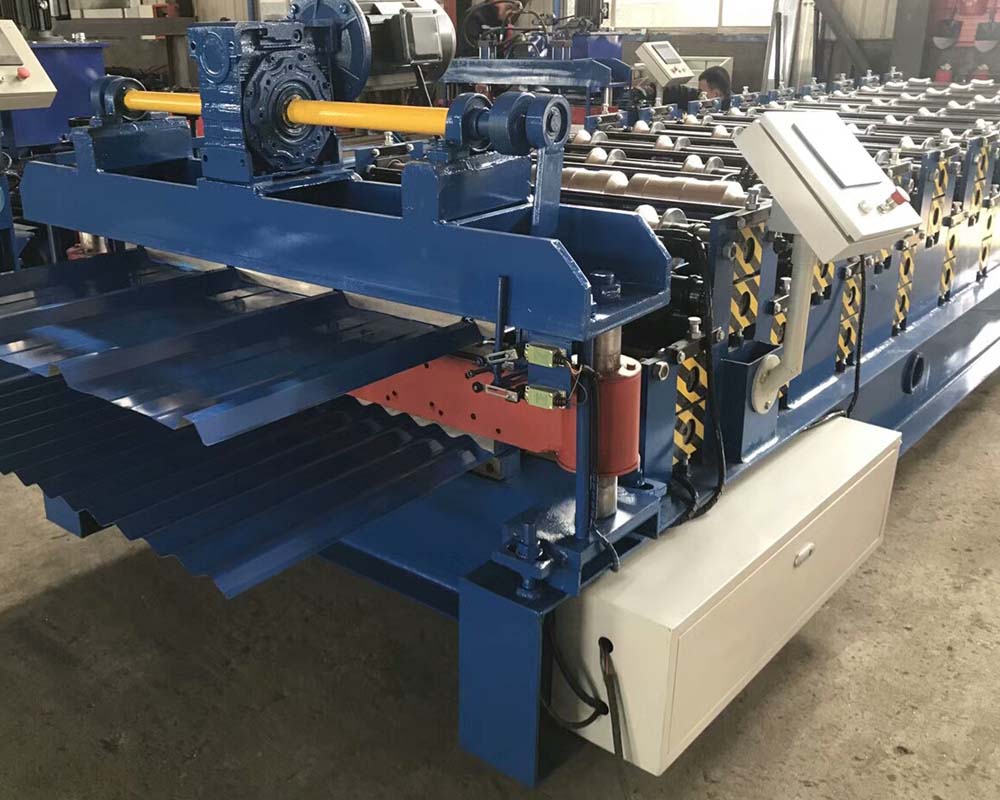

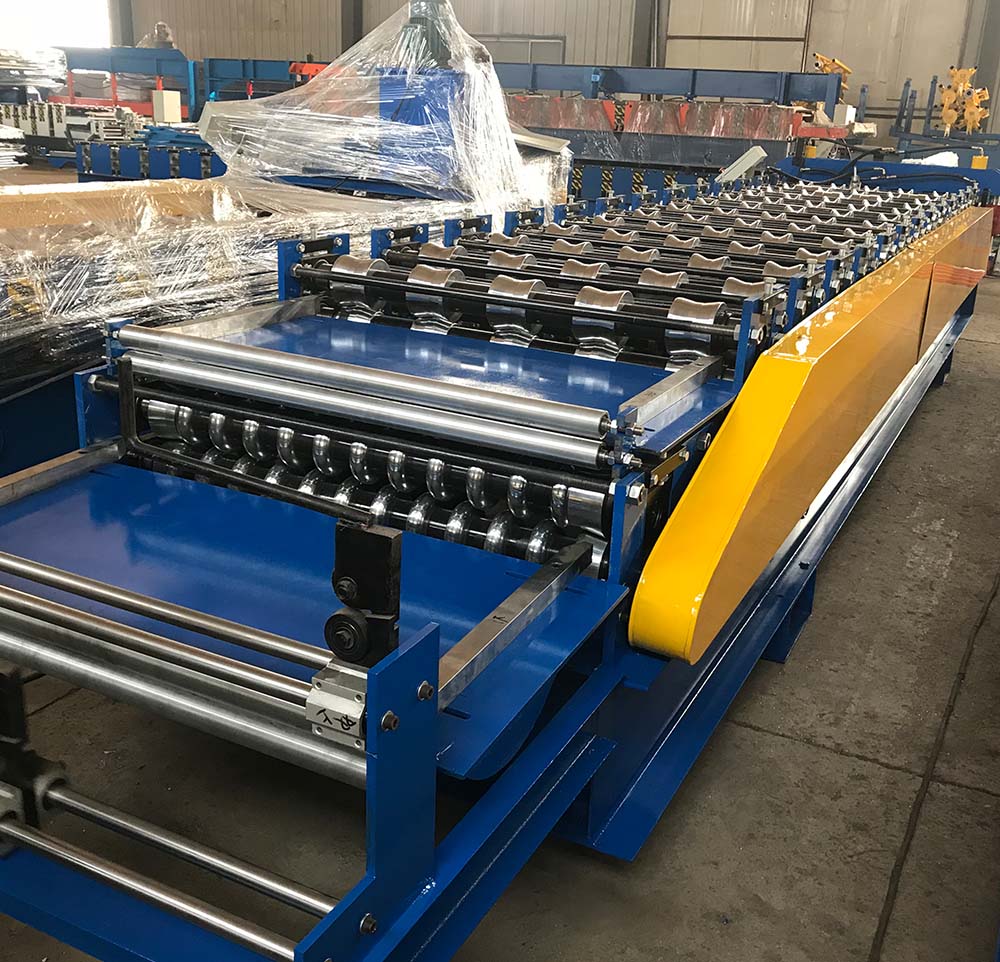

Machine photos
Components of double layer corrugated roof sheet making machine
| No. |
Name |
Unit |
Quantity |
| 1 |
Manual decoiler |
Set |
1 |
| 2 |
Main forming machine |
Set |
1 |
| 3 |
PLC control system |
Set |
1 |
| 4 |
Hydraulic pump station |
Set |
1 |
| 5 |
Post cut |
Set |
1 |
| 6 |
Electric motor |
Set |
1 |
| 7 |
Output table |
Set |
1 |
Terms:
1. Delivery: within 60 days after receiving the deposit.
2. Package: export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
Our company owned professional design team, we can design different profile according customer’s demands.
FAQ
Q:Are you a manufacturer?
A:Yes absolutely. Welcome a lot for your visiting to us.
Q:What’s the delivery time?
A: Normally will take 60 days, for small lines will take 30 days.
Q:Do you have after-sale support?
A:Yes, we’re always here for giving you advice and support for technical details since we have senior technician.
