Trapezoidal Roof Roll Forming Machine

Short Description:

Standard export packing: 1*40 GP container;

Main machine naked and fastened with iron wire in the container;

Rollers were painted with oil and packed with plastic film;

Electrics devices be packed with wooden box.


Product Detail

Product Tags

Trapezoidal roof sheets made of trapezoidal roof panel roll forming machines have superior strength.

Roof roll forming machine parameters

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter
6 Mainframe 300/350mm H-beam or 350mm
7 Backboard thickness 16mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1000mm
12 Effective width 850mm
13 Productivity 0-15/min
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

If you are interested in our trapezoidal roof roll forming machine, please do not hesitate to contact us.

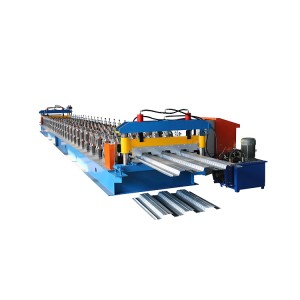

Machine picture display

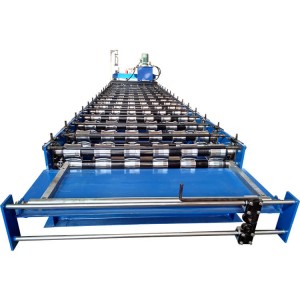

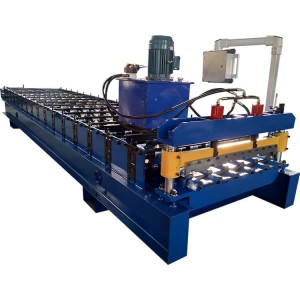

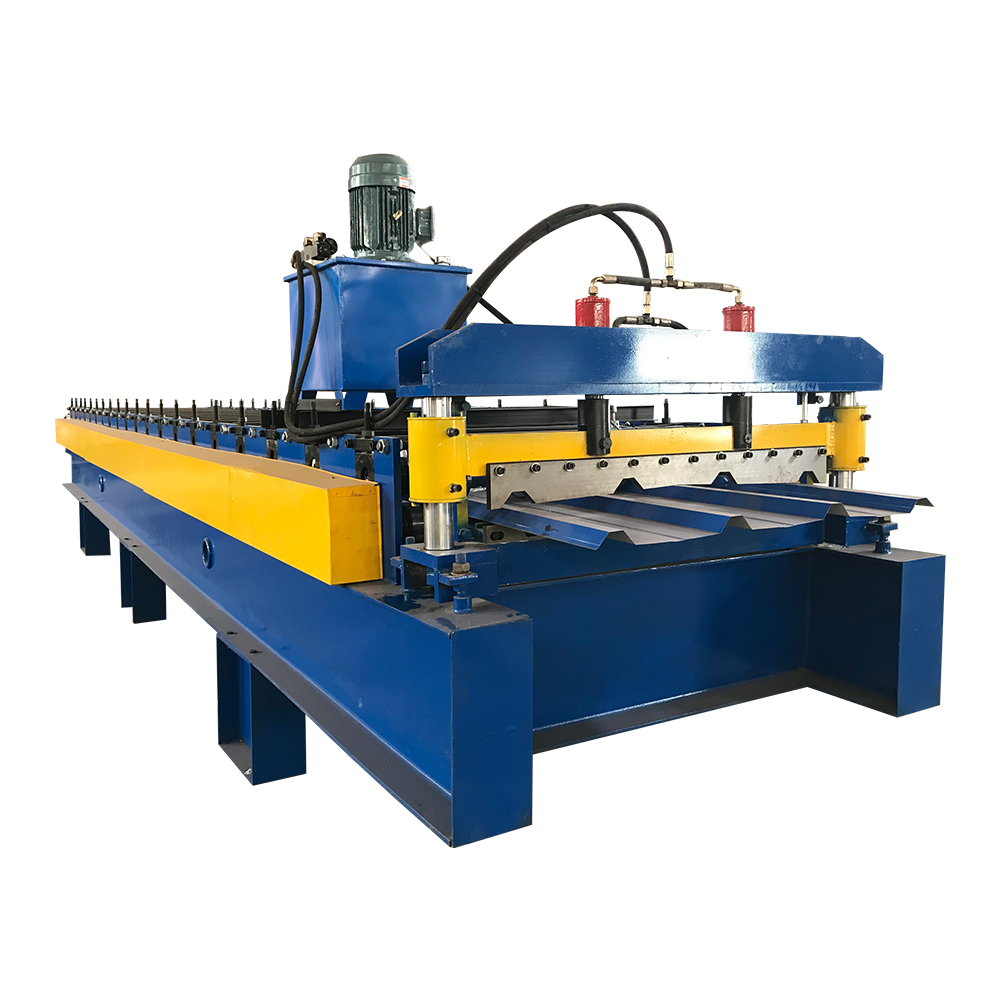

trapezoidal roof machine trapezoidal roof machine1 trapezoidal roof machine2

Package and shipment details

Standard export packing: 1*40 GP container;

Main machine naked and fastened with iron wire in the container;

Rollers were painted with oil and packed with plastic film;

Electrics devices be packed with wooden box.

Terms:

1. Delivery: within 60 days after receiving the deposit.

2. Package: export standard package for container.

3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
