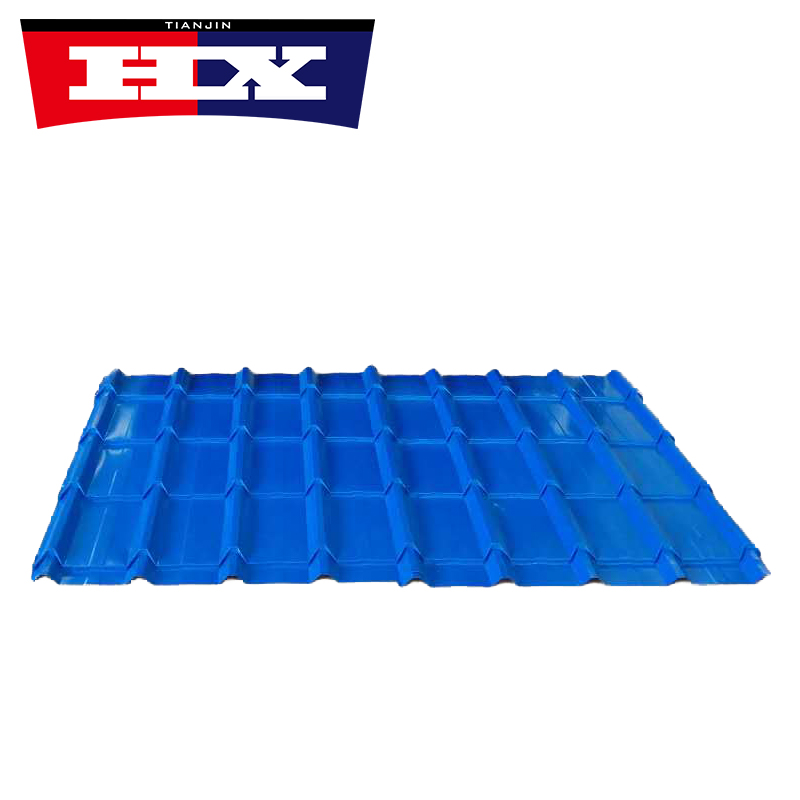

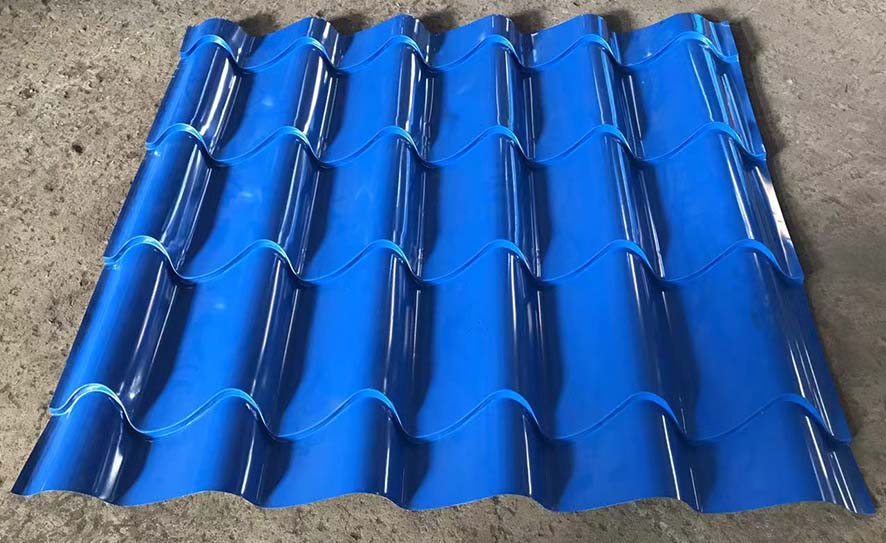

Trapezoidal Glazed Roof Tile In Blue Color parameters |
||
|
1 |
Model |
HX28-207-828 |
|
2 |
Effective width |
828mm |
|
3 |
overall width |
905mm |
|
4 |
Raw material width |
1000mm |
|
5 |
Thickness |
0.3-0.7mm |
|
6 |
Wave height |
28mm |
|
7 |
Wave width |
208mm |
|
8 |
Length |
3.6 meter,7.2 meter,8.1meter,etc. |
|
9 |
Color |
White, blue, red, green, yellow, orange, etc. as per RAL card color; zinc color, stainless steel color, aluminum color. |
|
10 |
Tolerance |
Thickness tolerance:±0.02mm;Length tolerance: ±2mm |
|
11 |
Zinc coated |
30–275g/sqm, as requested. |
|
12 |
Face paint |
PE; HDP; SMP; PVDF; Two layers; 20-25μm; |
|
13 |
Back paint |
PE grey white color One layer 5-7um |
Advantages:
1. Environmental and economic
2. Various and colorful appearance
3. Wide application
4. More fashion
5. Quickly shipping

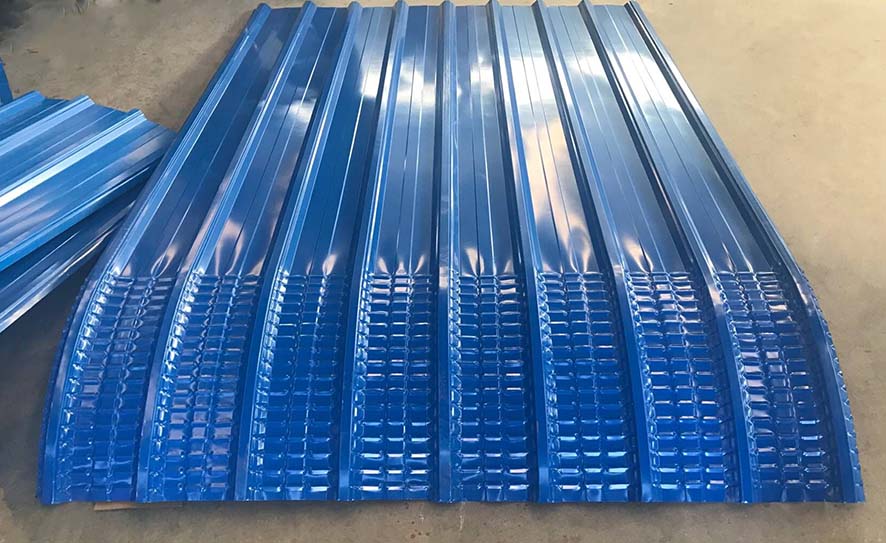

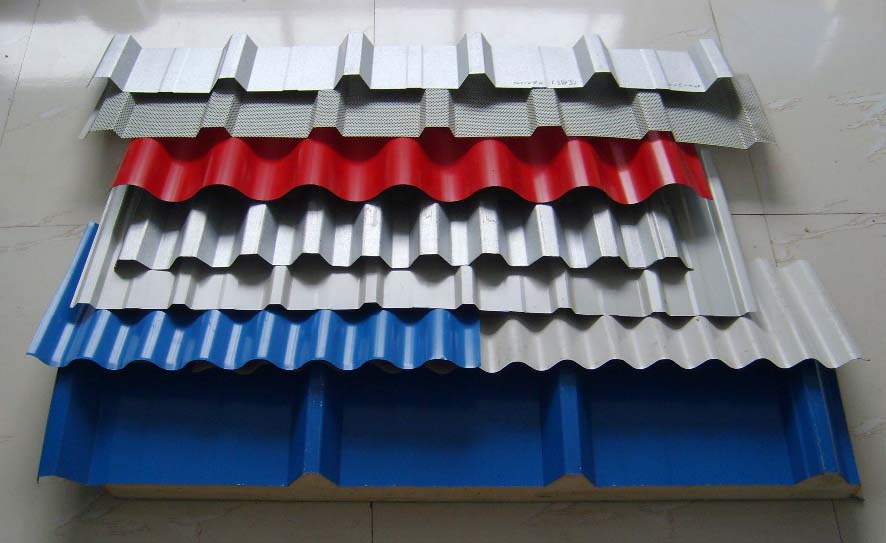

Our other roof sheets
The application of metal roof sheets for house and villas:
It can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theater, etc.
