Supply OEM/ODM Used Metal Roof Panel Roll Forming Machine/building Material Machinery /portable Roll Forming Machine

Short Description:

1. Our machine motor is GERMAN BRAND SIEMENS;
2. Our roller spacer is 4 mm thick seamless steel pipe;
3. Our output table can adjust the height according to customer demands;
4. Our PLC control console can look around 360 degrees;
5. All easy-broken pars can be changed within 14 months in free.


Product Detail

Product Tags

Using a full scientific good quality administration system, very good quality and superior faith, we win good standing and occupied this discipline for Supply OEM/ODM Used Metal Roof Panel Roll Forming Machine/building Material Machinery /portable Roll Forming Machine, Customers’ advantage and satisfaction are normally our biggest target. Be sure to call us. Give us a opportunity, offer you a surprise.
Using a full scientific good quality administration system, very good quality and superior faith, we win good standing and occupied this discipline for Metal Forming Machine, R Panel Roll Forming Machine, Roll Forming Machine, Look forward to the future, we will focus more on the brand building and promotion . And in the process of our brand global strategic layout we welcome more and more partners join us, work together with us based on mutual benefit. Let’s develop market by fully utilizing our detailed advantages and strive for building.

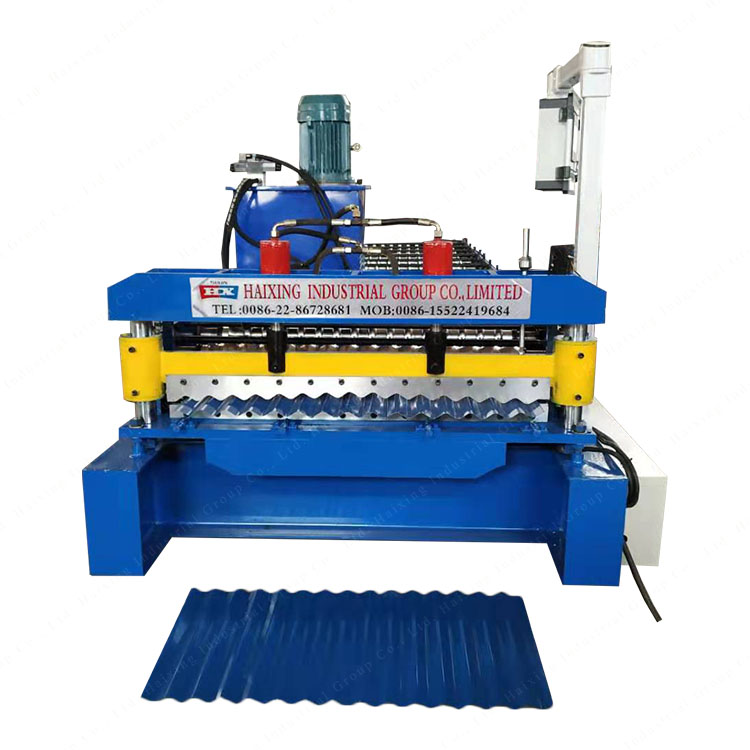

Roof Metal Sheet Cold Roll Forming Machine Corrugated Tile Parameters:

1 Main motor power 4kW, 3 phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/ 3 phase/ 50 Hz (or as your requirements)
5 Control system PLC delta inverter
6 Main frame 300/350 mm H-beam
7 Backboard thickness 16 mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8 mm
11 Productivity 0-15/ min
12 Roll station 13 roll steps (according to different design)
13 Roller diameter 70 mm (depends on different design)
14 Roller material 45# steel
15 Cutter material Cr12
16 Cr-plating size 0.05 mm

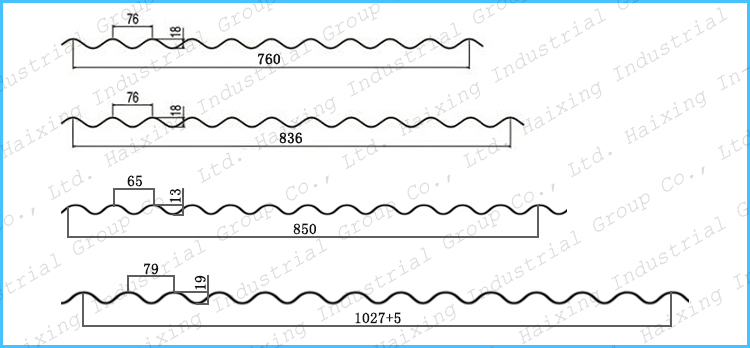

Popular drawing of corrugated roof metal sheets:

corrugated drawing
Different parts of the machine:

Decoiler: the common machine with 5 tons manual decoiler or you also can choose electric decoiler or hydraulic decoiler

decoiler type

PLC control console:

PLC control console for roof making machine

Roll forming parts and Output table:

roof machine roll forming&output table

Cutting parts: common is hydraulic pump drive cutting or you can choose electric motor drive cutting as follows:

drive cutting for roof making machine

Easy-broken parts:

Easy-broken parts pictures for roof making machine

Our Advantage:

1. Our machine motor is GERMAN BRAND SIEMENS;
2. Our roller spacer is 4 mm thick seamless steel pipe;
3. Our output table can adjust the height according to customer demands;
4. Our PLC control console can look around 360 degrees;
5. All easy-broken pars can be changed within 14 months in free.

Other relative roof roll forming machine:

roof roll forming machine

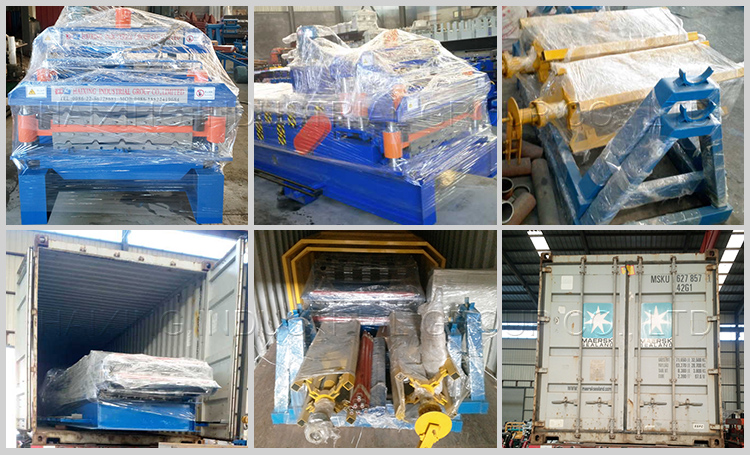

Packaging Details:

1. The main machine is covered by the plastic film.
2. PLC control box, spare parts, and other small parts are packed by wooden carton box.

roof machine packaging

Sales Service:

1. We provide the technical support for the whole life of our roof roll forming machines.
2. If buyers need the technician to go abroad, we will arrange the technician, but the buyers should take all the cost, including visa, round trip ticket, etc.
