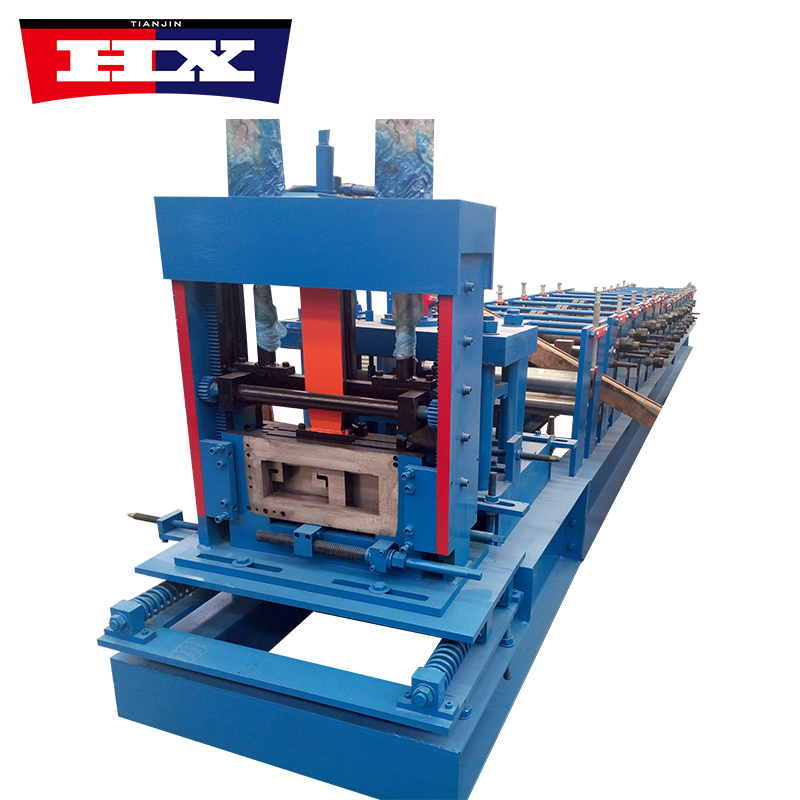

Steel structure c z purlin manufacturing machine

Short Description:

The advantages of the automatic steel structure c z purlin manufacturing machine are as follows:

1. Produce different pur strip sizes without replacing rollers or gaskets.

2. Simple operation and low maintenance cost.

3. Infinite size (any size within the machine range) helps save material.

4. Optional punching at any position on the web and the flange side of the pur strip.


Product Detail

Product Tags

Advantages:

1. Produce different pur strip sizes without replacing rollers or gaskets.

2. Simple operation and low maintenance cost.

3. Infinite size (any size within the machine range) helps save material.

4. Optional punching at any position on the web and the flange side of the pur strip.

Parameters:

1 Suitable to process Steel plate
2 Rollers 18 rows(Before and after the leveling and contains no lead to send passes)
3 Dimensions 11*1.3*1.5m
4 Power 11.5kw+7.5kw
5 Thickness of the plate 1-3mm
6 Productivity 8-10m/min
7 Middle plate thickness 20mm
8 Driving ways 2.6-inch China wheels and link chain
9 Diameter and material of the forming axis 80mm
10 Weight About 8.5T
11 Voltage 380V 50HZ3 phase
12 Roll material GCr15(bearing steel)hard chrome plated after heat treatment
13 Shaft material 40Cr Modulation of heat treatment after polishing hard chromium plating
14 On both sides of the wall material A3 steel
15 Frame International H-beam
16 Blade material Cr12Mov
17 Forming wheel Bearing steel quenching

Parts:

Single-end feeding machine(max capacity 5T), Feeding leveling, Forming system, Straightening mechanism(one word original), At single + double holes, After forming shear system, Supporting material platform(6m)

Machine picture display

CZ purlin1 CZ purlin2

Terms:

1. Delivery: within 60 days after receiving the deposit

2. Package: export standard package for container

3. Payment: TT(30% by TT in advance, 70% by TT after inspect the machine before delivery)

Our company adheres to the service tenet: quality first, reputation first. We believe that quality is the lifeblood of the company. We will provide satisfactory products and after-sales service for every customer.
