Steel Sheet Hydraulic Uncoiler

Short Description:

Haixing Industrial Group Co., Ltd. is the biggest and strongest in north China. Our factory is specialized in manufacturing color steel forming machinery, C&Z purlin machine, glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine and other cold roll forming machines.


Product Detail

Product Tags

Steel Sheet Hydraulic Uncoiler technical parameters

1 Coil inner diameter  450mm-650mm
2 Maximum width of coiling  1250mm
3 Maximum weight of loading  10 tons
4 Hydraulic power  5.5kW
5 Motor power  4kW
6 Working speed  0-15m/minute
7 Oil pump inner diameter  120mm
8 Working press  10MPa
9 Voltage  380V/50Hz, 3 phase
10 Dimensions  3.0*1.8*1.9m

Features:

1. Types available: hydraulic decoiler.

2. Adapts hydraulic expand/loosen and hydraulic driving system.

3. Easy to operate.

4. Suitable for pre-painted coil, cold-rolled coil and galvanized coil.

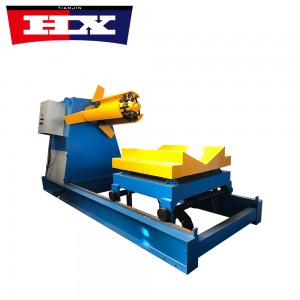

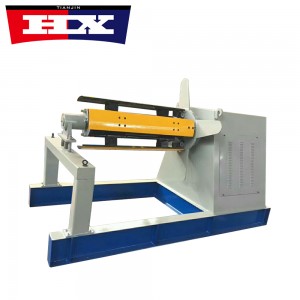

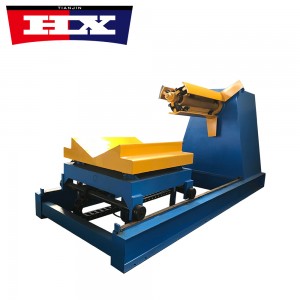

Machine picture display

decoiler21 decoiler22hydraulic decoiler1

decoiler with coil car1

Our company insists on the service aim: quality first, credit first, we believe that quality is the lifeblood of entering rise, we will supply satisfied products and after-sale service for every client. We always offer relative technical support,quick response,all your inquire will replied within 24 hours.

Company introduction details

Haixing Industrial Group Co., Ltd. is the biggest and strongest in north China. Our factory is specialized in manufacturing color steel forming machinery, C&Z purlin machine, glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine and other cold roll forming machines.



hydraulic decoilers
