Advantages of steel coil straightening and cutting machine
1.This steel coil straightening and cutting machine adopts steel welded structure, hydraulic transmission, easy to operate, reliable performance, nice appearance.
2. Blade gap is adjusted according to sign post, can adjust light quickly.
3. It has light for wire device, and can non-polar adjust route.
4. It adopts fence type safety device.
5. Size of rear block stop and shearing numbers has digital display apparatus.
|
No.
|
steel coil straightening and cutting machine Parameters
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
Up: 5 rollers; Down: 6 rollers
|
|
3
|
Dimensions
|
2200x2000x2000mm
|
|
4
|
Motor Power |
4Kw
|
|
5
|
Pump Station Motor
|
3Kw.Lichao Brand |
|
6
|
Thickness of the plate
|
Slitting: Max 0.8mm; Cutting: Max 2.0mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ90mm
|
|
10
|
Weight
|
About 2500kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
40mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|

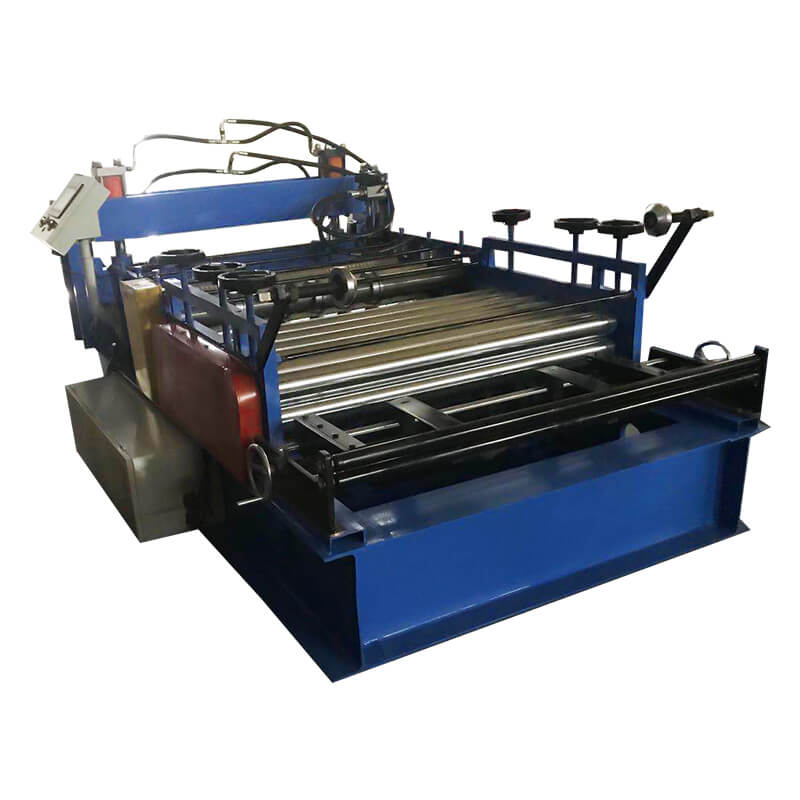

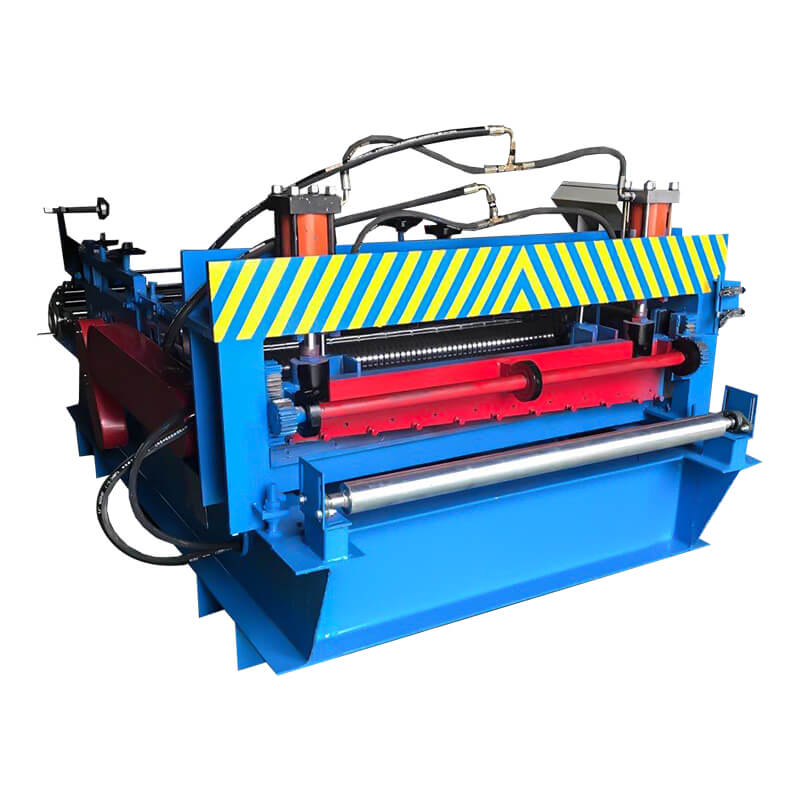

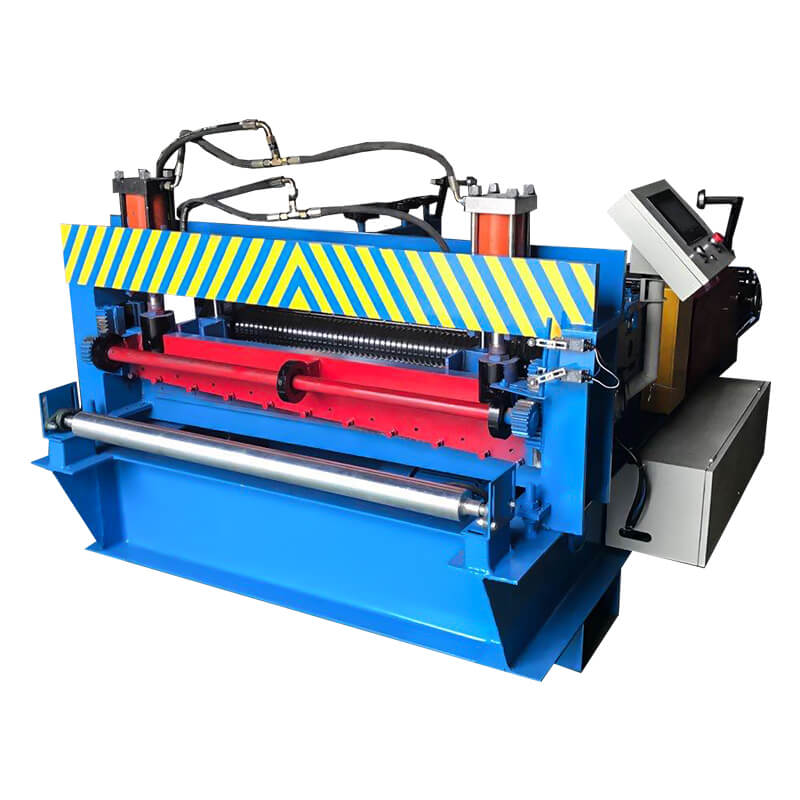

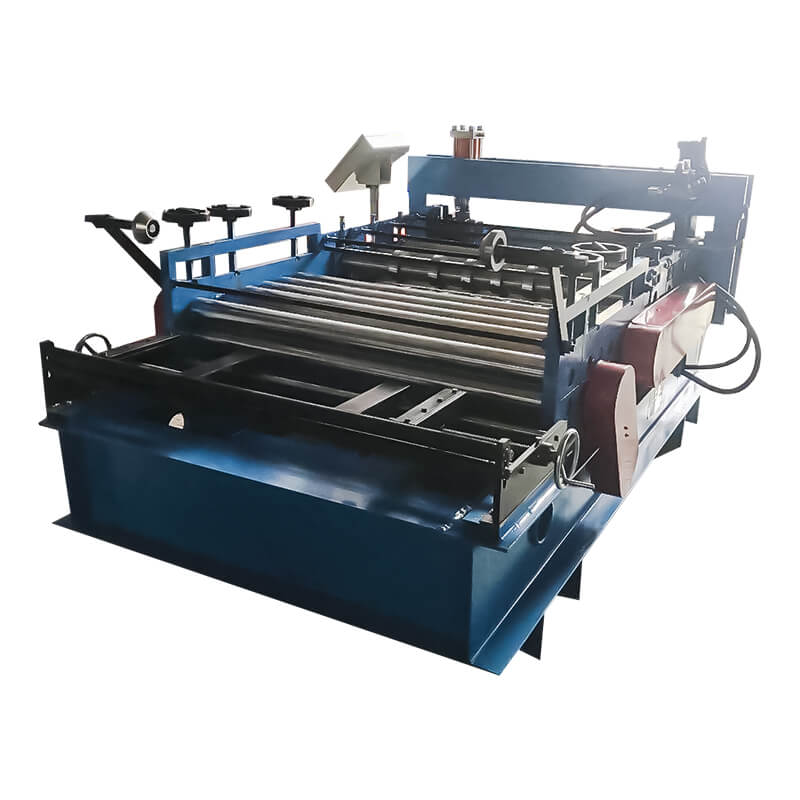

Picture Details
steel coil straightening and cutting machine Packing & Shipping
a.The main body of steel plate leveling slitting machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
b.Rollers and shafts are covered with anti-rust oil.
c.PLC control system and motor pump are packed with waterproof paper and plastic film.
d.Spare parts in a carton box.
e.Manual decoiler was nude packing.
f.The output-table put into a carton box.
g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
h.Fit for ocean shipping.
