Automatic CZ interchange purlin machine process flow:
Manual decoiler– punching hole– roll forming machine– molding press– PLC control box– hydraulic system– post cut– output table.
|
Purlin roll forming machine |
||
| 1 | Suitable to process | Steel plate |
| 2 | Rollers | 18 rows(Before and after the leveling and contains no lead to send passes) |
| 3 | Dimensions | 11*1.3*1.5m |
| 4 | Power | 11.5kw+7.5kw |
| 5 | Thickness of the plate | 1-3mm |
| 6 | Productivity | 8-10m/min |
| 7 | Middle plate thickness | 20mm |
| 8 | Driving ways | 2.6-inch China wheels and link chain |
| 9 | Diameter and material of the forming axis | 80mm |
| 10 | Weight | About 8.5T |
| 11 | Voltage | 380V 50HZ3 phase |
| 12 | Roll material | GCr15(bearing steel)hard chrome plated after heat treatment |
| 13 | Shaft material | 40Cr Modulation of heat treatment after polishing hard chromium plating |
| 14 | On both sides of the wall material | A3 steel |
| 15 | Frame | International H-beam |
| 16 | Blade material | Cr12Mov |
| 17 | Forming wheel | Bearing steel quenching |
The machine comprises the following parts:
Single-end feeding machine(max capacity 5T), Feeding leveling, Forming system, Straightening mechanism(one word original), At single + double holes, After forming shear system, Supporting material platform(6m)

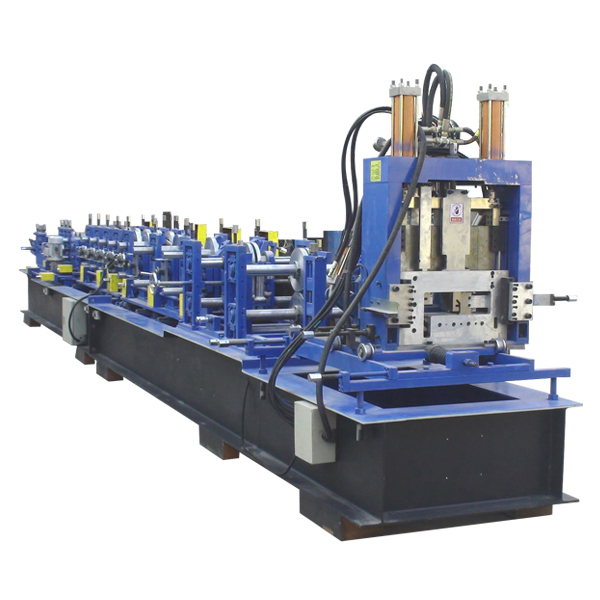

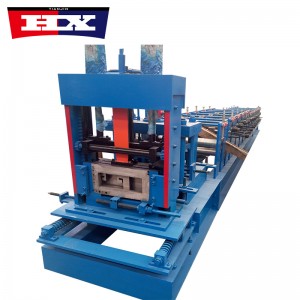

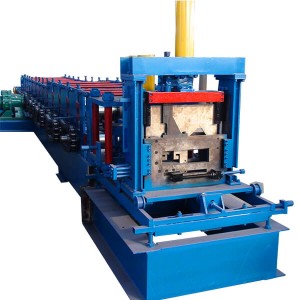

Machine picture display
Terms:
1. Delivery: within 60 days after receiving the deposit
2. Package: export standard package for container
3. Payment: TT(30% by TT in advance, 70% by TT after inspect the machine before delivery)
Advantages of our roll forming machines
1, Our machine can use galvanized steel, color steel plate or aluminum plate as material board.
2, Using computer control, PLC display. Therefore the machine is easy to operate, stable and reliable operation, durable, maintenance-free.
3. We can manufacture and design various roll forming machines according to customer requirements.
