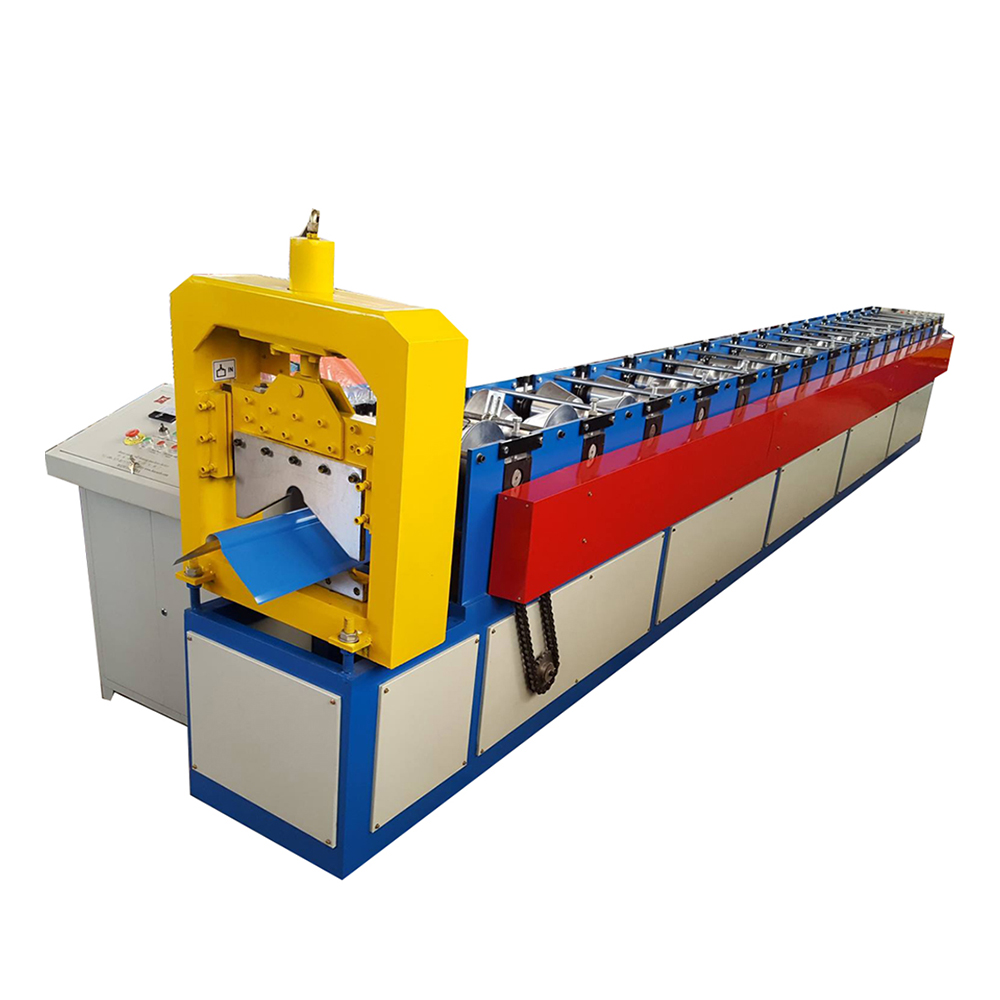

Roof ridge cap roll forming machine parameters
| 1 | Decoiler | Manual decoiler or hydraulic decoiler |
| 2 | Raw material thickness | 0.2-0.8mm |
| 3 | Material | As your requirements |
| 4 | Machine dimensions | 7000*800*1500mm |
| 5 | Feeding width | According to your profile |
| 6 | Forming station | 13 to 15 steps |
| 7 | Shaft diameter | 75mm |
| 8 | Shaft material | High-grade 45# steel, heated and quenched |
| 9 | Roller material | High-grade 45# steel, coated with 0.05mm chrome |
| 10 | Forming speed | 10-15m/minute (adjustable) |
| 11 | Transmission type | Chain transmission |
| 12 | Machine frame stand | Welded structural steel, thickness is 18mm |
| 13 | Main motor | 5.5kW from Shanghai, China |
| 14 | Cutting type | Stop hydraulic cutting |
| 15 | Cutting power | 3kW |
| 16 | Cutter material | Cr12 with quenched treatment HRC 58-62 |
| 17 | Cutting length error | ±2mm |
| 18 | Voltage | 380V/50Hz and 3 or according to your requirements |
| 19 | Control system | PLC control system |
| 20 | Size of PLC | 700*1000*300mm |
| 21 | PLC | Delta/Siemens |
The color steel ridge tiles and aluminum-formed ridge tiles that are pressed out of roof ridge cap roll forming machine are lighter, easier to install and less expensive.

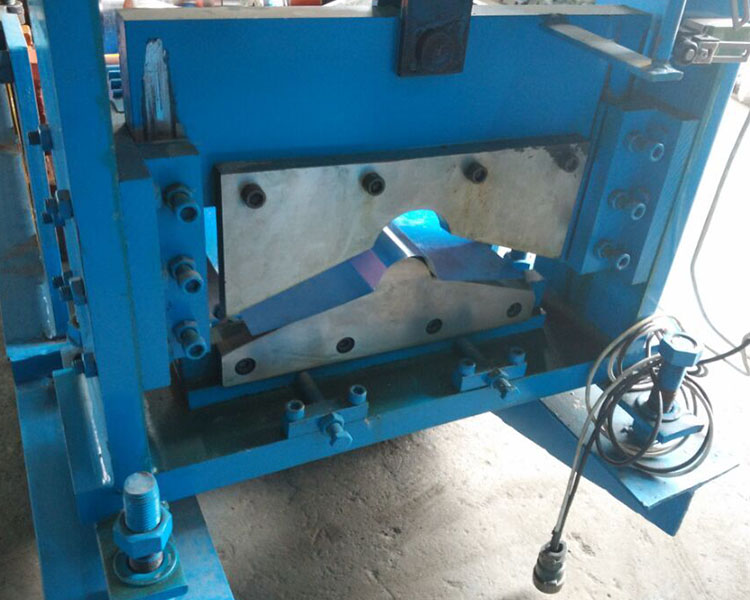

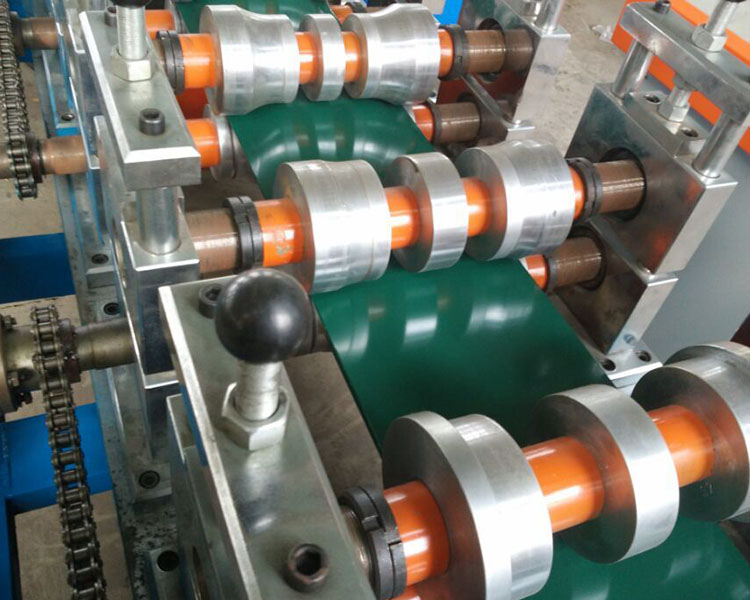

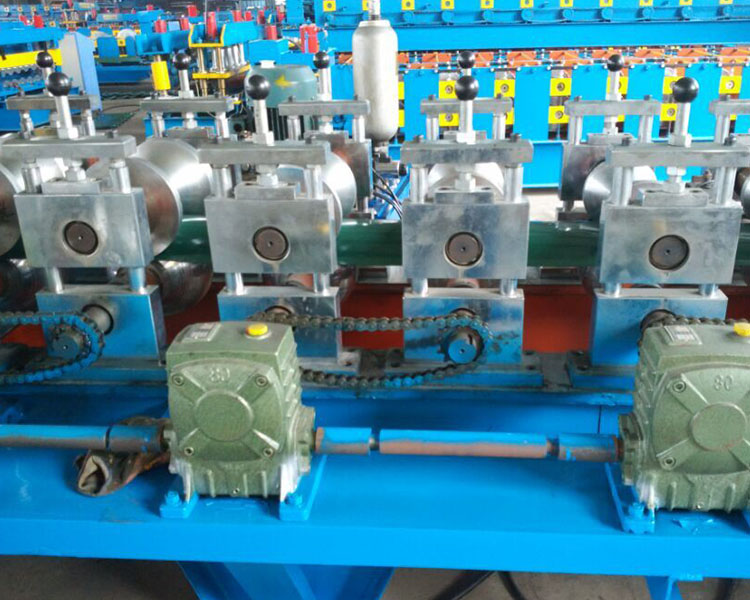

Machine details:
Package and shipment details:
The machines sold by Haixing Industrial Group Co., Ltd. use standard export packaging, as follows:
1*40GP container,main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.
