Quots for Double Layer Roll Forming Machine/metal Roof Sheet Machine/popular Roll Forming Machine

Short Description:

Our company has a professional foreign trade and design team. Various roll forming machines can be made. You only need to contact us.


Product Detail

Product Tags

Adhering for the theory of “quality, services, performance and growth”, we have received trusts and praises from domestic and worldwide shopper for Quots for Double Layer Roll Forming Machine/metal Roof Sheet Machine/popular Roll Forming Machine, We sincerely welcome you appear to go to us. Hope now we have fantastic cooperation during the upcoming.
Adhering for the theory of “quality, services, performance and growth”, we have received trusts and praises from domestic and worldwide shopper for Metal Roof Sheet Machine, Popular Roll Forming Machine, Roll Forming Machine, We also have good cooperation relationships with many good manufacturers so that we can give almost all of auto parts and after-sales service with high quality standard,lower price level and warmly service to meet demands of customers from different fields and different area.
Our company has a professional foreign trade and design team. Various roll forming machines can be made. You only need to contact us.

Double Layer Metal Tile Making Machine parameters

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter
6 Mainframe 300/350mm H-beam or 350mm
7 Backboard thickness 16mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1000mm
12 Effective width 840mm, 850mm
13 Productivity 0-15/min
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

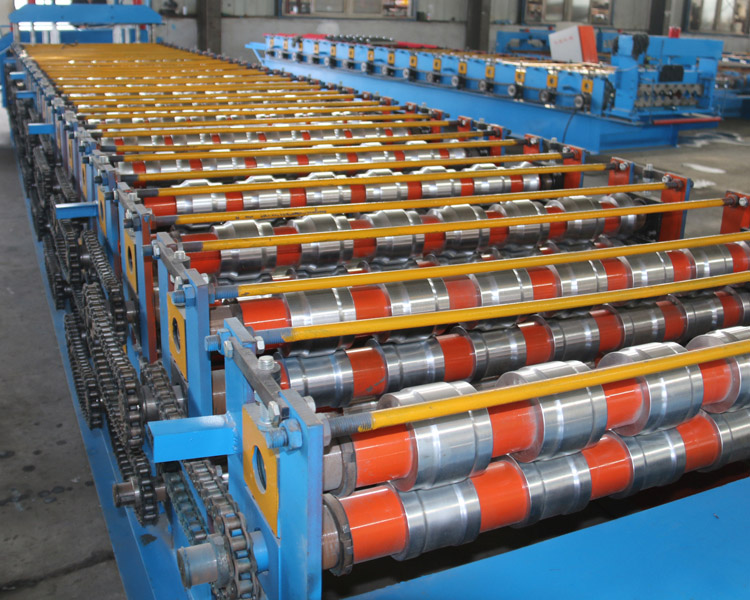

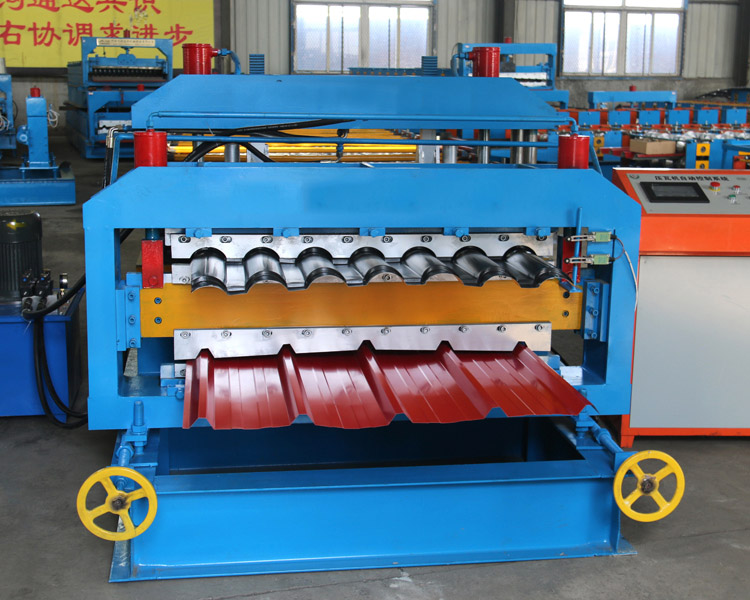

Machine picture display

Components of Double Layer Metal Tile Making Machine

No. Name Unit Quantity
1 Manual decoiler Set 1
2 Main forming machine Set 1
3 PLC control system Set 1
4 Hydraulic pump station Set 1
5 Post cut Set 1
6 Electric motor Set 1
7 Output table Set 1
