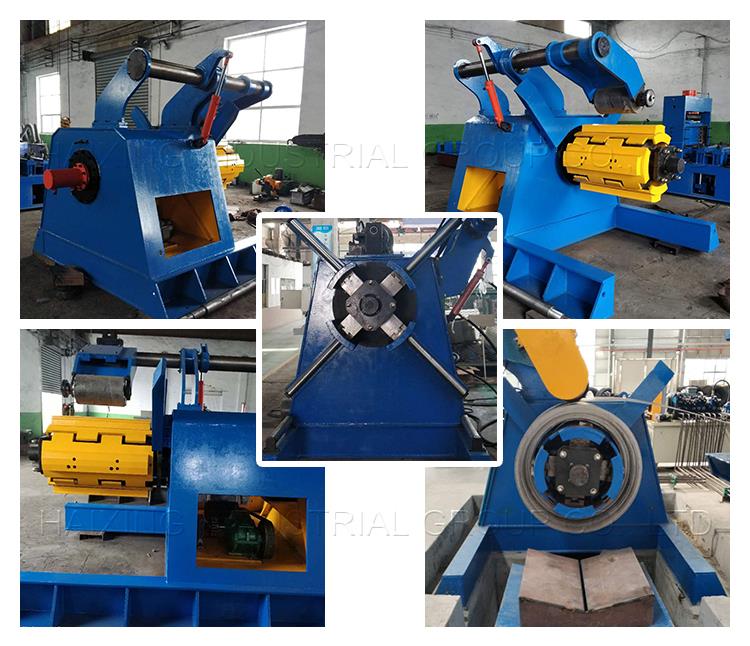

Hydraulic decoiler machine technical parameters
Voltage
380V/50Hz, 3 phase.
Dimensions
2500 mm*1600 mm*1750 mm.
Weight
About 2.4 tons.
Hydraulic pump station
5 solenoid valve pump station.
Hydraulic power
3KW, 380V.
Host rated power
4kw (International Trade brand), cycloid reducer.
Frame
Base with 300H GB I-beam, the box is welded with 16mm thick steel plate.
Supporting spindle
Made of thick-walled seamless steel tube, shaft diameter 194*45 mm.
Feeding width
0-1500 mm.
Steel coil inner diameter
470-530 mm, ± 20 mm.
Rated load capacity
Within 5 tons.
Hydraulic cylinder
Up to the cylinder diameter 125 mm, 1 (plus rotation).
