New Delivery for Standing Seam Arc Metal Roof Profiling Machine

Short Description:

Parameters of corrugated automatic roof tile machine: 1)Main motor power: 4kW, 3-phase or as your requests. 2)Hydraulic motor power: 3kW. 3)Hydraulic pressure: 10-12MPa. 4)Voltage: 380V/3-phase/50Hz (or as your requirements).


Product Detail

Product Tags

Well-run devices, expert profits group, and better after-sales companies; We have been also a unified huge family, everybody keep on with the organization worth “unification, determination, tolerance” for New Delivery for Standing Seam Arc Metal Roof Profiling Machine, Our products are widely recognized and reliable by users and can meet continuously changing economic and social needs.
Well-run devices, expert profits group, and better after-sales companies; We have been also a unified huge family, everybody keep on with the organization worth “unification, determination, tolerance” for Arc Metal Roof Profiling Machine, Metal Roof Profiling Machine, Roof Profiling Machine, Each product is carefully made, it will make you satisfied. Our products in the production process have got strictly monitored, because it is only to provide you the best quality, we will feel confident. High production costs but low prices for our long-term cooperation. You can have a variety choices and the value of all types are same reliable. If you have any question, do not hesitate to ask us.
Parameters of corrugated automatic roof tile machine

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter
6 Mainframe 300/350mm H-beam or 350mm
7 Backboard thickness 16mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1000mm
12 Effective width 850mm
13 Productivity 0-15/min
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

The above are some of the parameters, more detailed parameters can be obtained by contacting us, some of which can be customized according to customer needs.

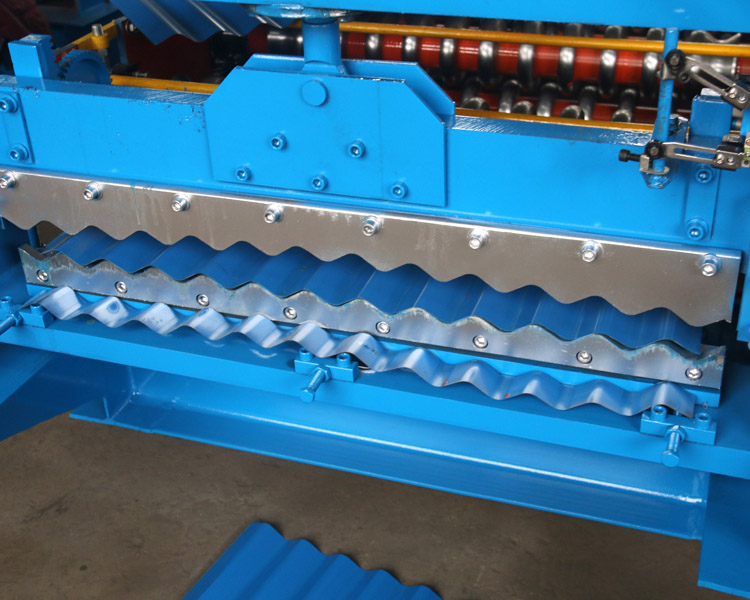

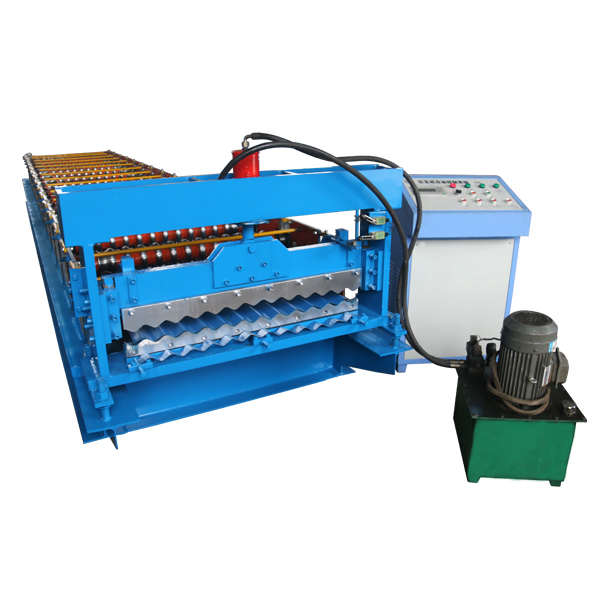

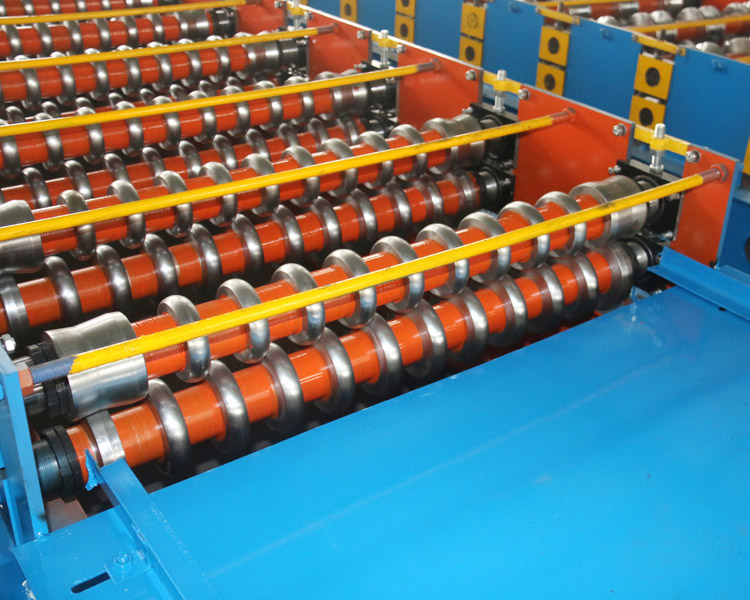

Detail of machine:

adf sfg

Packaging Details

1. Machine is covered by plastic film.

2. PLC control box, spare parts and other small parts are packed by wooden carton box.
