| 1 | Voltage | 380V/50Hz, 3 phase. |
| 2 | Dimensions | 2500 mm*1600 mm*1750 mm. |
| 3 | Weight | About 2.4 tons. |
| 4 | Hydraulic pump station | 5 solenoid valve pump station. |
| 5 | Hydraulic power | 3KW, 380V. |
| 6 | Host rated power | 4kw (International Trade brand), cycloid reducer. |
| 7 | Frame | Base with 300H GB I-beam, the box is welded with 16mm thick steel plate. |
| 8 | Supporting spindle | Made of thick-walled seamless steel tube, shaft diameter 194*45 mm. |
| 9 | Feeding width | 0-1500 mm. |
| 10 | Steel coil inner diameter | 470-530 mm, ± 20 mm. |
| 11 | Rated load capacity | Within 5 tons. |
| 12 | Hydraulic cylinder | Up to the cylinder diameter 125 mm, 1 (plus rotation). |
| 13 | Electrical control system | The use of Taiwan Delta inverter (5.5kw), and domestic Zhengtai electrical control parts, inverter. |
| 14 | Other | The host plus hydraulic or pneumatic pressure arm. |

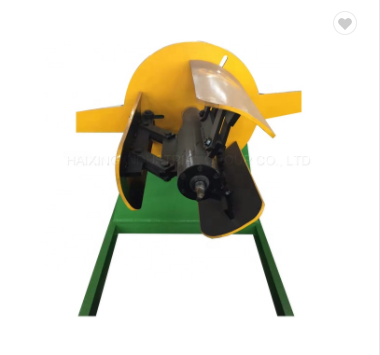

10 tons roll forming machine aluminum uncoiler pictures
Advantage
1, The load-bearing main shaft adopts high-strength and fatigue-resistant rear wall seamless steel, which is formed by turning and has strong strength and great bearing capacity.
2, The volume is hydraulically controlled, convenient, fast and stable.
3, Electrical control, high precision, good automation, inverter control, speed can be adjusted.
Application
The Decoiler is suitable for machinery, vehicles, metal products, household appliances, steel, decoration and other industries.
Our machines packaging details
1. Main roll forming machine package by Plastic film;
2. Tighten to container with steel wire rope and welded machine with container by angle iron;
3. PLC control system and motor pump are packed in a box with waterproof paper coverage;
4. We have a professional loading technician to ensure that the goods are loaded into the container without any damage.
Other relative roof roll forming machine
Our company other products
Relative raw material
Company profile
Tianjin Haixing Import & Export Co., Ltd. specializes in producing all kinds of roofing machines, roofing panels of various sizes, PPGI/ GI, aluminum-zinc steel coils, galvanized steel coils, galvanized steel sheets, galvanized steel coils /sheets.
Our products are exported to Africa, South America, Russia, India, Pakistan, Southeast Asia, and other foreign customers.
Our first priority is quality improvement and customer satisfaction.
High-quality products, professional services, and preferential prices welcome every customer to visit and purchase!!! We will provide you with 24-hour service, please feel free to contact us if necessary.
