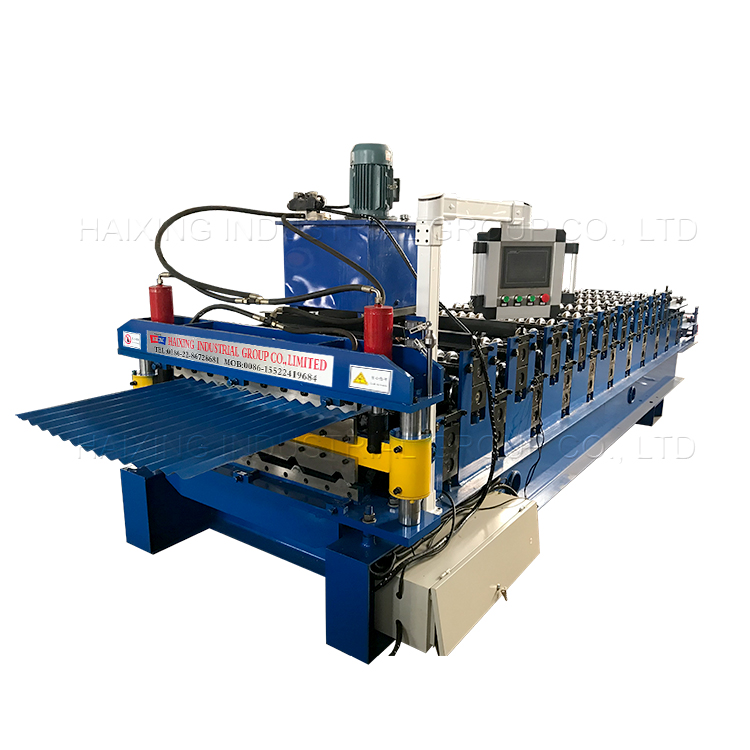

Metal Roofing Double Layer Roll Forming Machine

Short Description:

1 Main motor power 4kW/5.5KW/7.5KW
2 Hydraulic motor power 3kW/4kw
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC control system


Product Detail

Product Tags

Components of Metal Roofing Double Layer Roll Forming Machine:

Manual uncoiler: 1 set

Guiding platform: 1 set

Coil leveler: 1 set

roll forming parts: 2 sets

Electric-motor: 1 set

Cutting device: 2 sets

Hydraulic station: 1 set

PLC control: 1 set

Output Supporter table: 1 set

Roof roll forming machine parameters

1 Main motor power 4kW/5.5KW/7.5KW
2 Hydraulic motor power 3kW/4kw
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC control system
6 Mainframe 350/400 H-beam
7 Backboard thickness 16mm/18mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1000mm
12 Effective width 840mm, 850mm, or as profile
13 Productivity 0-30m/min (motor drive can arrived 25m/min to 30m/min)
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

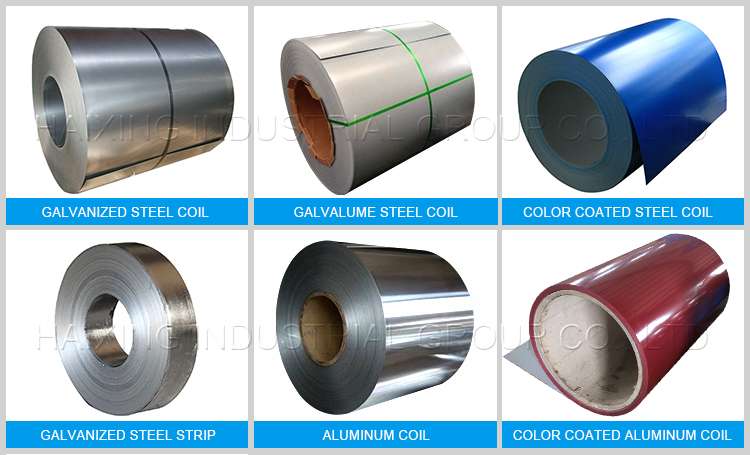

Raw materials

raw material pictures

Delivery:

within 35 days after receiving the deposit.
