Metal Roof Sheet Tile Making Machine Glazed Tile Forming

Short Description:

1 Main motor power 4kW, 3 phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/ 3 phase/ 50 Hz (or as your requirements)
5 Control system PLC delta inverter


Product Detail

Product Tags

Metal Roof Sheet Tile Making Machine Glazed Tile Forming parameters

1 Main motor power 4kW, 3 phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/ 3 phase/ 50 Hz (or as your requirements)
5 Control system PLC delta inverter
6 Main frame 300/350 mm H-beam
7 Backboard thickness 16 mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8 mm
11 Productivity 0-15/ min
12 Roll station 13 roll steps (according to different design)
13 Roller diameter 70 mm (depends on different design)
14 Roller material 45# steel
15 Cutter material Cr12
16 Cr-plating size 0.05 mm

Tile drawing of Metal Roof Sheet Tile Making Machine Glazed Tile Forming

800 glazed tile drawing

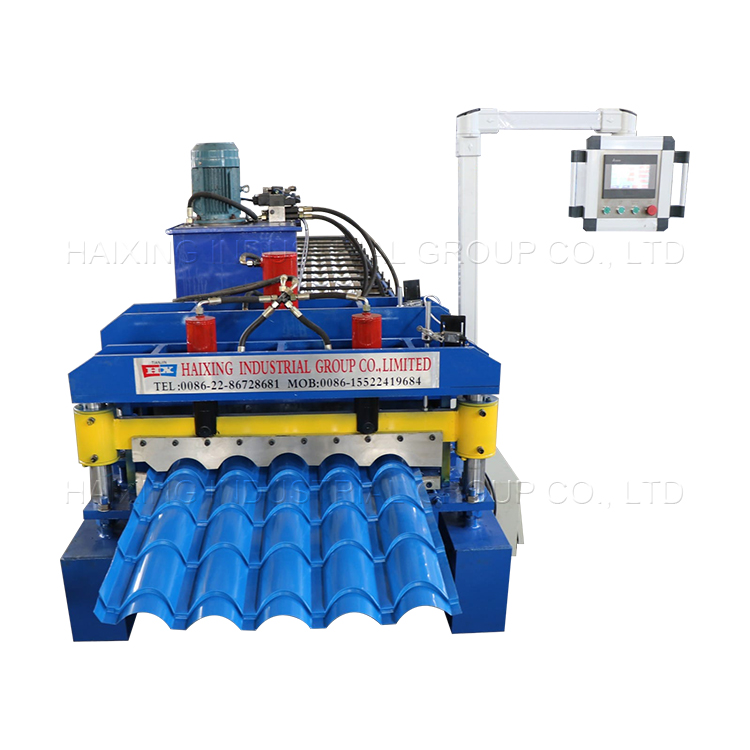

Machine details

800 glazed roof machine details

Advantages of our roll forming machines

1, Our machine can use galvanized steel, color steel plate or aluminum plate as material board.

2, Using computer control, PLC display. Therefore the machine is easy to operate, stable and reliable operation, durable, maintenance-free.

3. We can manufacture and design various roll forming machines according to customer requirements.

Packaging details of Metal Roof Sheet Tile Making Machine Glazed Tile Forming:

1. The main roll forming machine package by Plastic film;

2. Tighten to the container with steel wire rope and welded machine with the container by angle iron;

3. PLC control system and motor pump are packed in a box with waterproof paper coverage;

4. We have a professional loading technician to ensure that the goods are loaded into the container without any damage.

FAQ:

Q:How is this machine’s service life?

A:In the normal maintenance, the service life at least 8 years.

Q:Can you be responsible for transport?

A:Yes, please tell me the destination port or address. We have rich experience in transport.

Q:can you make the machine according to my design or prototype?

A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
