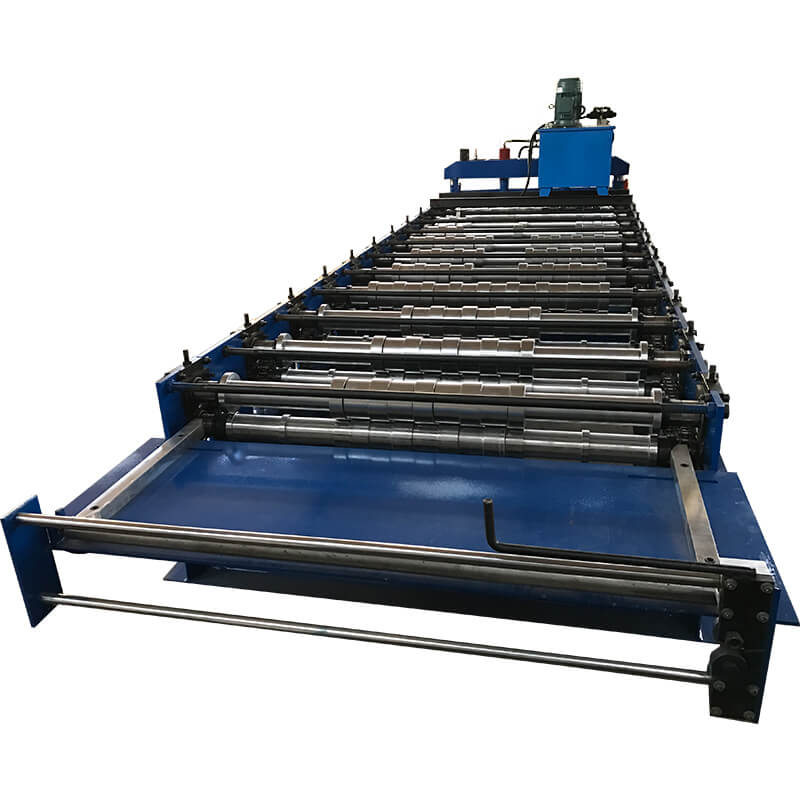

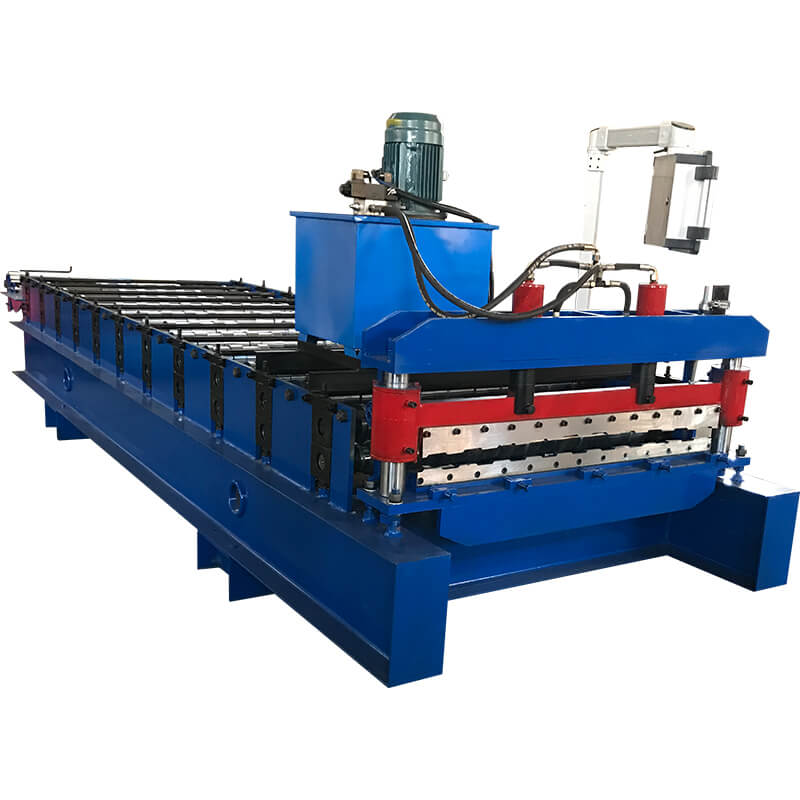

Metal roof panel rolling machinery parameters
| 1 | Main motor power | 4kW/5.5KW/7.5KW or as actual demands |
| 2 | Hydraulic motor power | 3kW/4KW.5.5KW or as actual demands |
| 3 | Hydraulic pressure | 10-12MPa according to oil pump and pump motor |
| 4 | Voltage | 380V/ 3 phase/ 50 Hz (or as your requirements) |
| 5 | Control system | Automatic PLC control system |
| 6 | Main frame | 350H beams/400H beams according to machine demands |
| 7 | Wall sheet thickness | 16mm/18mm/20mm/22mm according to machine demands |
| 8 | Chain size | 1 inch/1.2inch according to machine demands |
| 9 | Feeding material | Galvanized steel coil/color steel coil/aluminum steel coil |
| 10 | Feeding thickness | 0.3-0.8 mm |
| 11 | Productivity | 0 – 25m/min (according to machine specification) |
| 12 | Roll station | Common 11rolls or 25rolls (according to different design) |
| 13 | Roller diameter | 70mm/75mm/80mm (depends on different design) |
| 14 | Roller material | 45# steel |
| 15 | Cutter material | Cr12MOV |
| 16 | Cr-plating size | 0.05 mm |
Our roll forming machines could produce metallic roofing tile, trapezoidal or sinusoidal roofing sheet, floor deck, C and Z purlin, expressway guardrail, channel and stud, roller shutter and sandwich panel, etc. Customized profiles and requirements are acceptable, and assistant equipment such as hydraulic decoiler, auto stacker, etc.
We offer our customers easy-broken parts for free.
Detail display of the automatic roofing tile roll forming machine parts
01. Mainframe: GB H steel, hard texture.

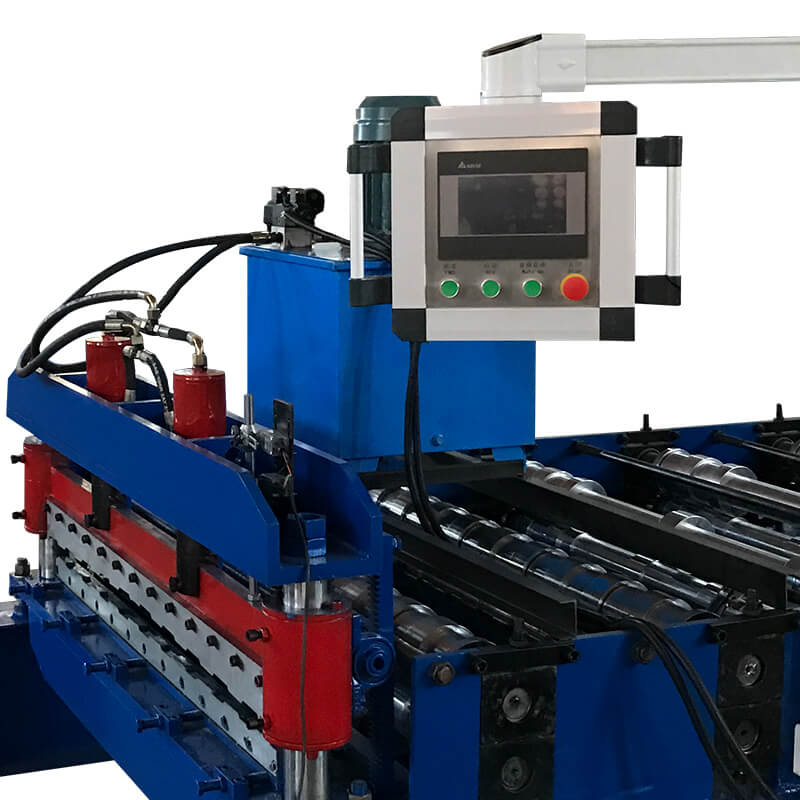

02. Operator station: 360-degree rotation display.

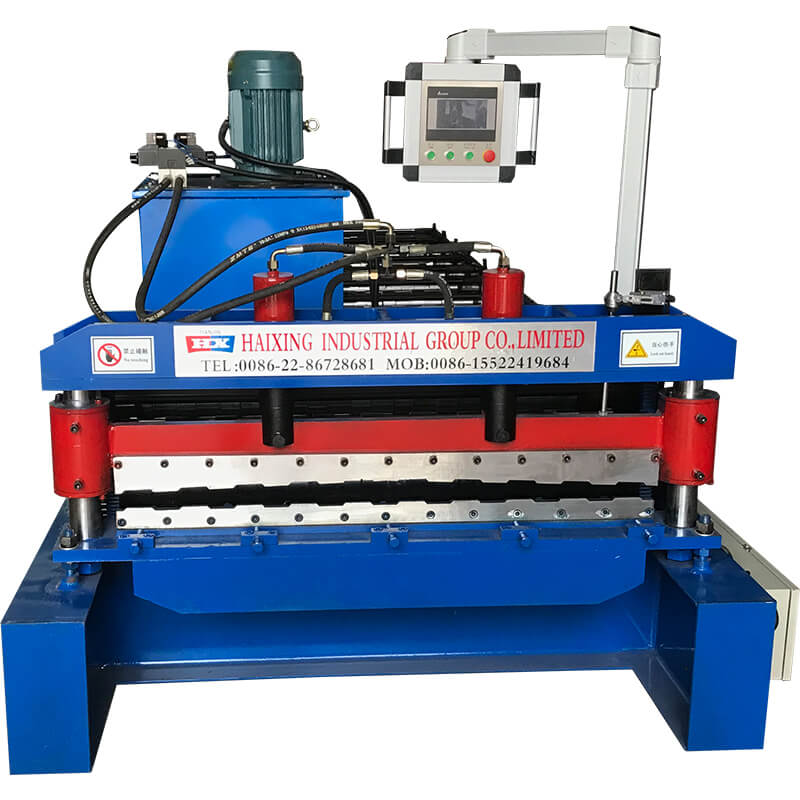

03. Cutter: The main material is Cr12, which has high hardness.
04. Retaining pad: Prevent the nut from loosening.
05. Easy hanging: Prevent the machine from scratching during the movement.
06. Wheel: generally 45# steel, good hardness.
07. Travel switch: Limit the position or travel of the machine.
08. Rear hand knife: cut in advance to prevent waste.
09. Resin wheel: used to record the length of discharge and record data is more accurate.
10. Electric control cabinet: The main brands are Panasonic / Siemens / Schneider / Delta PLC.
1. Main machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton.
