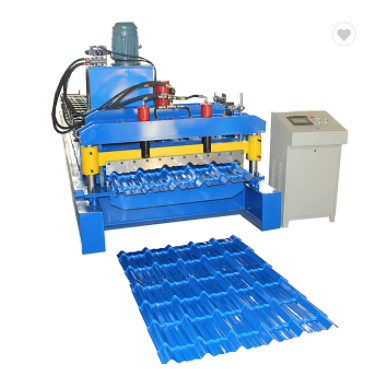

1. Colorful steel roofing glazed tile making roll forming machine photos showing
2.Technical process of Colorful steel roofing glazed tile making roll forming machine
Decoiler—–feeding—– leveling —– cutting —–roll forming —– punching —– output table
1.Technical data of Colorful steel roofing glazed tile making roll forming machine
Technical Parameters (some depend on the final design) | ||
1 | Style | Colorful steel roofing glazed tile making roll forming machine |
2 | Machine dimension | 7500*1450*1600mm |
3 | Total wight | 5200kgs |
4 | Forming steps | 15rows |
5 | Forming speed | 1.5-3.0m/min |
6 | Hydraulic station power(Kw) | 4kw |
7 | Diameter of shaft | 70mm |
8 | Hydraulic pressure | 18-20 MPa |
9 | Electric condition | 380V/3Phase/ 50HZ |
10 | Suitable to process | Color steel plate(G330 or G350 or G550 ) |
11 | Manual uncoiler max capacity | 5000kgs |
12 | Control system | PLC |
13 | Raw material thickness | 0.3-0.8mm |
14 | Effective width | 1000mm |
15 | Material width | 1200mm |
16 | Main motor | 5.5Kw |
17 | Material of the cutting blade | Cr 12 quenched treatment 58℃-62℃ |
18 | Main Shaft Material
|
45# steel with finish turning |
19 | Roller materials | 45# Forging Steel with Chromium Plate |
20 | Machine Under Frame | 350 H beams |
2.Components of Colorful steel roofing glazed tile making roll forming machine
1 | Manual uncoiler | 1 set |
2 | Sheet guiding equipment | 1 set |
3 | Roll forming system | 1 set |
4 | Pressing device | 1 set |
5 | Post-cutting equipment | 1 set |
6 | Hydraulic station | 1 set |
7 | Electric controlling system | 1 set |
8 | Support table | 2 pieces |
1.Metal roof profile tiles making machine and uncoiler are nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40′ container to shipping.
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 35 days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
