Metal Coil Tension Leveling Machine parameters
| 1 | Suitable to process | PPGI, galvanized sheet |
| 2 | Thickness of raw material | Slitting: Max 0.8mmCutting: Max 2.0mm |
| 3 | Roller station | Up: 5 rollersDown: 6 rollers |
| 4 | Voltage | 380V, 50HZ, 3Phase |
| 5 | Main Frame | 350 H beams |
| 6 | Side panel thickness | 40mm |
| 7 | Diameter of shaft | ¢90mm |
| 8 | Chain size | 1 inch |
| 9 | Motor power | 5.5Kw |
| 10 | PLC | Automatic PLC control system |
| 11 | Transmission | Chain transmission |
| 12 | Drive | Motor drive |
| 13 | Machine size | 2200*2000*2000mm |
| 14 | Machine weight | About 2.3 tons |
Metal Coil Tension Leveling Machine Advantages
1. This Metal Decoil Leveling Line adopts steel welded structure, hydraulic transmission, easy to operate, reliable performance, nice appearance.
2. Blade gap is adjusted according to signpost, can adjust light quickly.
3. It has light for wire device, and can non-polar adjust the route.
4. It adopts a fence type safety device.
5. Size of rear block stop and shearing numbers has digital display apparatus.

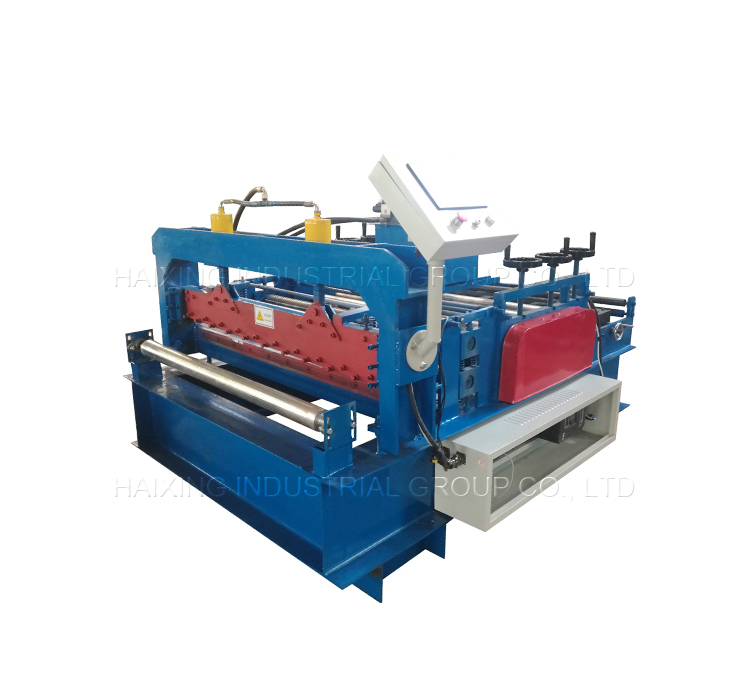

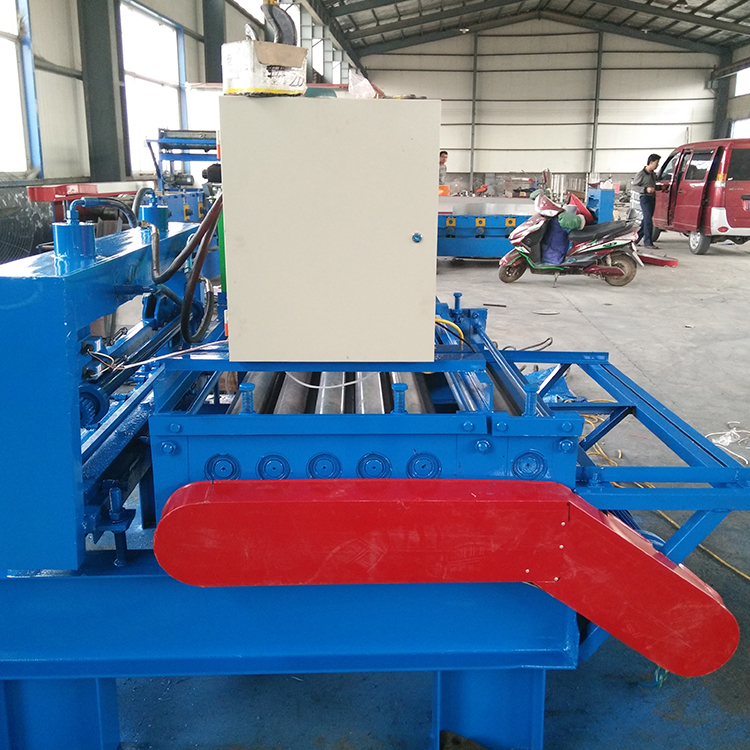

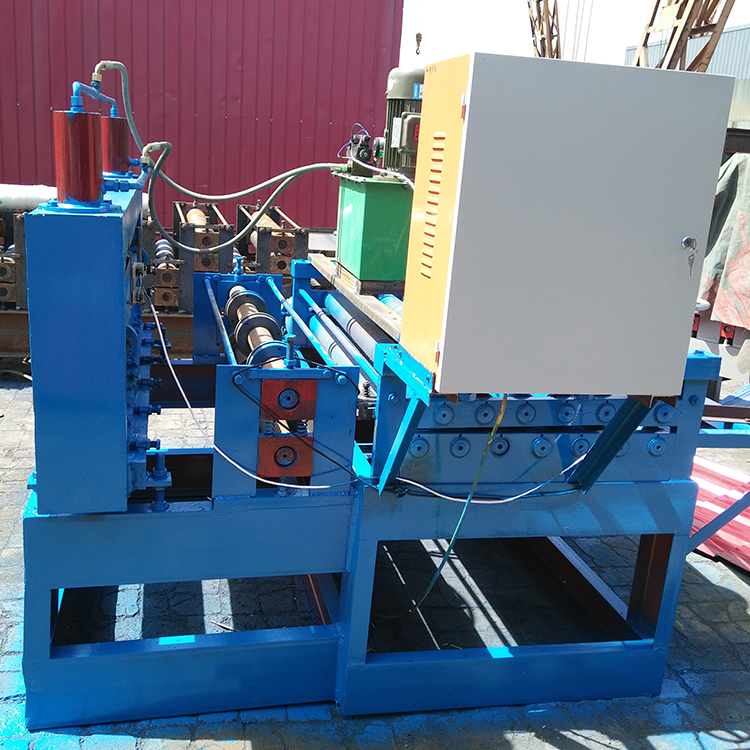

Metal Decoil Leveling Line photos
Packaging Details
1. Main machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton
FAQ
Q: What we need to select the machines?
A: Please provide the information below:
1. the strip width of your material
2. the strip thickness of your material
3. the weight of your material
4. the Press information of your shop
Q: Do you sell ONLY standard machines?
A: NO. Most of our machines are made according to customer’s specifications, using international brand components.
