Main parameters of Metal Arch Roofing Sheet Curving Roll Forming Machine
|
Name |
Metal Arch Roofing Sheet Curving Roll Forming Machine |
|
Suitable Material |
Colored or galvanized steel coil, HRB60 or equivalent |
|
Material thickness |
0.3-0.8 mm |
|
Coil Width Range |
914, 1000, 1220 or 1250 mm, or according to your actual drawing. |
|
Mold material |
#45 HRC 55-60 |
|
Control system |
It is controlled by PLC |
|
Speed |
10 m/min |
|
Main motor power |
1.5 Kw |
|
Electric Power |
380V, 50 Hz, 3 phase or according to your need. |
|
Dimension |
About 2.6*1.6*1.2m(L*V*H), as per the drawing |
|
Weight |
0.8T |
|
Feeding way |
Follow the machine feeding, and also need person as an assistant |
|
Cutting |
Automatically stop and cutting when it comes to the set length. |
|
Length of the Sheet |
You can set the length according to your need; |
The advantages of curving roof machine:
1. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2. Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, maintenance-free.
3. We can make and designs will kinds of roll forming machine according to customer’s request.

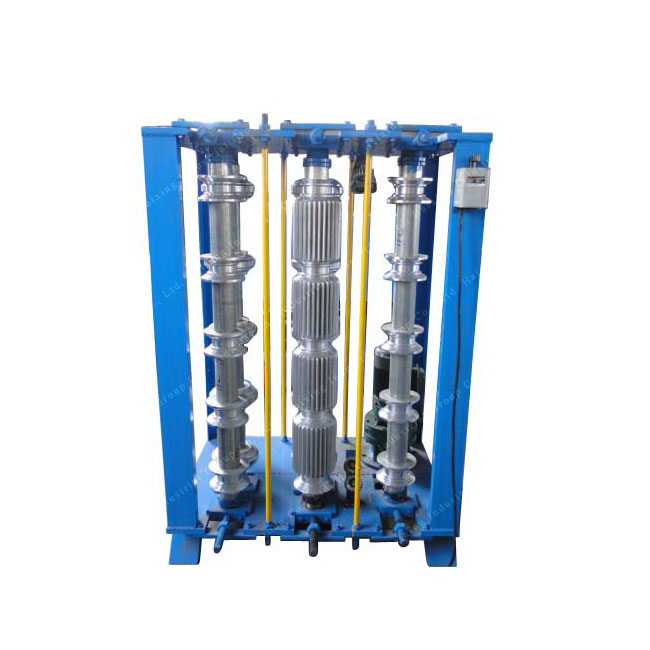

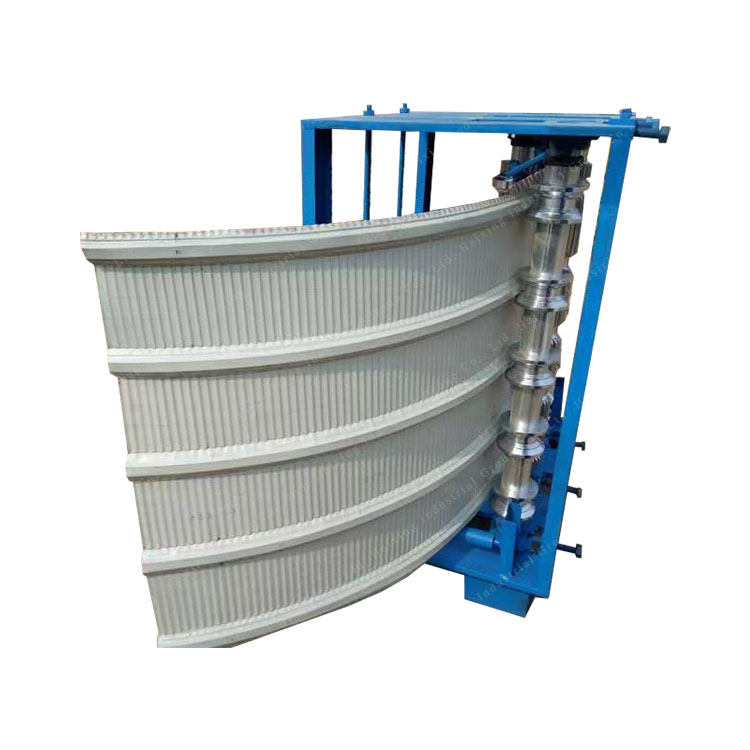

Machine photos:
Terms:
1. Delivery: within 60 days after receiving the deposit.
2. Package: export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
