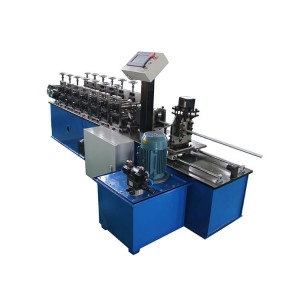

Our Light keel cold roll forming machine can be designed according to the buyer’s samples or drawings. The work Flow for the galvanized metal studs and tracks roll forming machine is as follows: Decoiler → Feeding Guide → Roll Forming → Cut-to-length → Run out table.
|
metal stud and track roll forming machine parameters |
||
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 0.5-1.2mm |
| 4 | De-coiler | Manual one, can load 3 tons raw material |
| 5 | Rollers for forming | 18 rows |
| 6 | Diameter of the roller | Φ52mm |
| 7 | Rolling material | Carbon steel 45# |
| 8 | Main motor power | 4kW |
| 9 | Productivity | 8-12m/minute |
| 10 | Cutting method | Hydraulic mold cutting |
| 11 | Material of the cutting blade | Cr12 |
| 12 | Hydraulic cutting power | 3kW |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | Delta PLC control |
| 15 | Side panel of machine | 25mm |
| 16 | Main structure of the machine | 300H steel |
| 17 | Weight | About 6.5T |
| 18 | Dimensions | 5.5*1.0*1.5m |
| 19 | Voltage | 380V/50Hz/3 phases (changeable as needs) |
Components:
Manual decoiler ——————————————1 set
Guiding platform —————————————–1 set
Main machine of roll forming ————————–1 set
Electric motor ———————————————1 set
Cutting device ———————————————1 set
Hydraulic station ——————————————1 set
PLC control ————————————————1 set
Supporter table ———————————————1 set

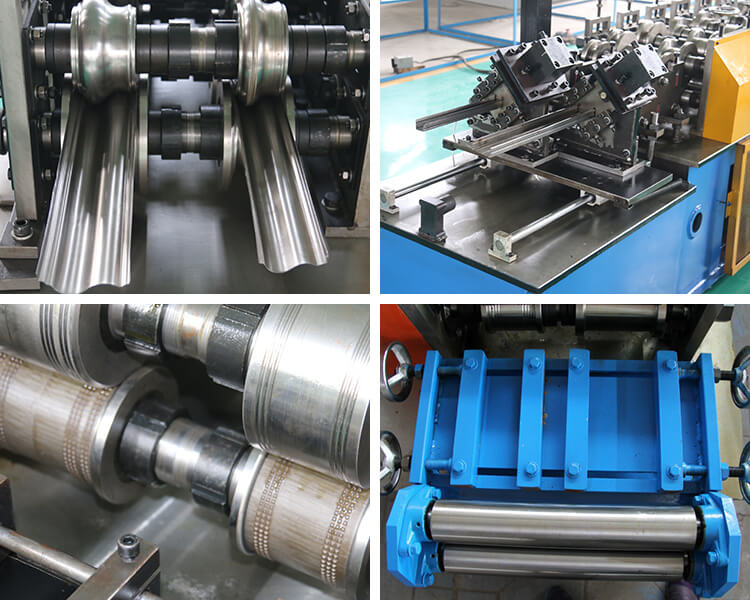

Light keel cold roll forming machine details
Light keel cold roll forming machine Details：
1. Machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton box.
Terms:
1. Delivery: within 60 days after receiving the deposit.
2. Package: export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
