The leveling machine is mainly used to correct plates of various specifications and cut into pieces. This machine can be used for leveling various cold and hot rolled sheets.
| leveling machine parameters | ||
| 1 | Suitable to process | PPGI, galvanized sheet |
| 2 | Thickness of raw material | Slitting: Max 0.8mmCutting: Max 2.0mm |
| 3 | Roller station | Up: 5 rollersDown: 6 rollers |
| 4 | Voltage | 380V, 50HZ, 3Phase |
| 5 | Main Frame | 350 H beams |
| 6 | Side panel thickness | 40mm |
| 7 | Diameter of shaft | ¢90mm |
| 8 | Chain size | 1 inch |
| 9 | Motor power | 3 Kw (Siemens) |
| 10 | PLC | Delta/Siemens |
| 11 | Transmission | Gear transmission |
| 12 | Machine size | 2200*2000*2000mm |
| 13 | Machine weight | About 2 tons |

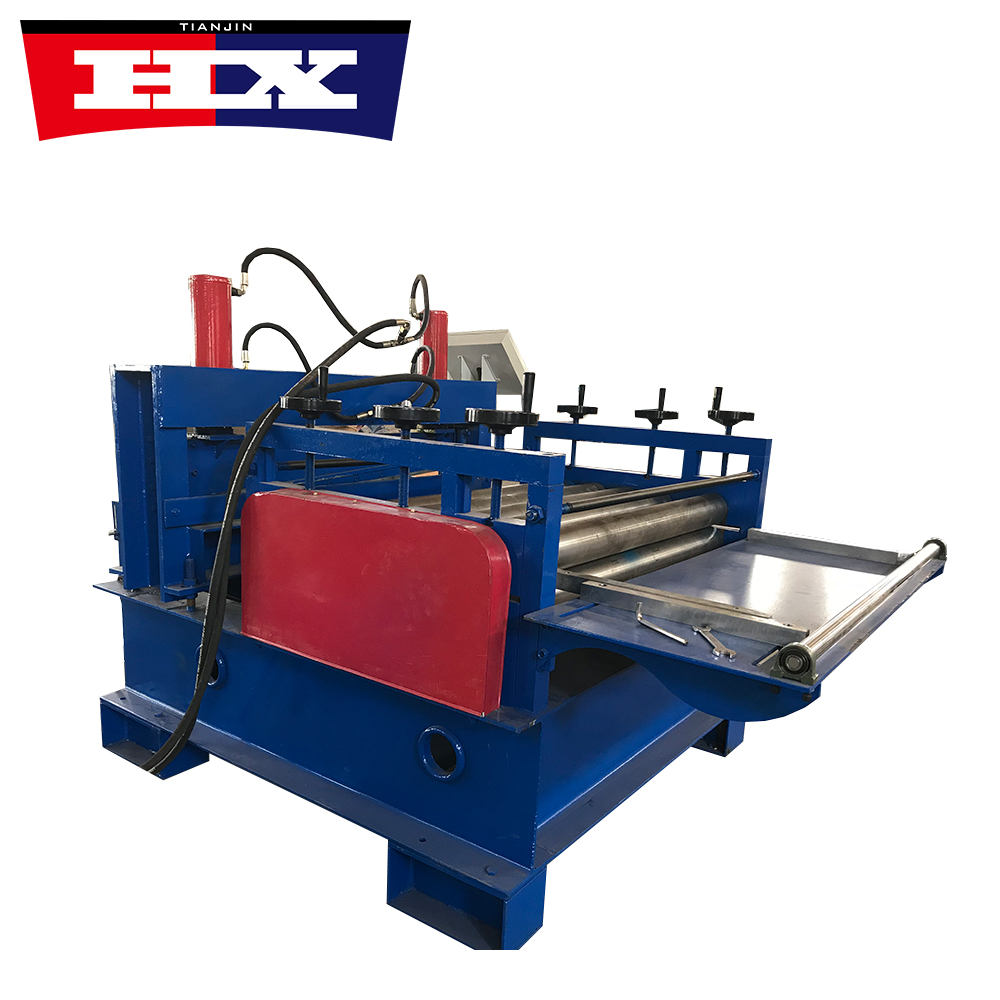

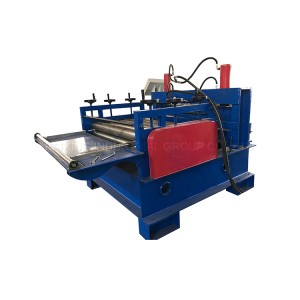

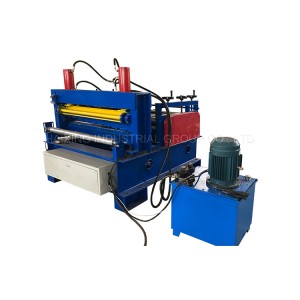

Machine photos:
The machines sold by Haixing Industrial Group Co., Ltd. use standard export packaging, as follows:
1*40GP container,main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.
Sales Service:
1.we provide the technical support for whole life of our machines.
2.If buyers need the technician to go abroad, we will arrange the technician, but the buyers should take all the cost, including visa, round trip ticket etc.
