We’re professional Hydraulic Uncoiler 5 Tons With Trolley manufacturers and suppliers in China, specialized in providing high quality cold forming machine. We warmly welcome you to wholesale bulk Hydraulic Uncoiler 5 Tons With Trolley at competitive price from our factory.
5 Tons Hydraulic Decoiler With Coil Car, 5 Tons Hydraulic Uncoiler With Coil Car, Hydraulic Decoiler, Hydraulic Uncoiler parameters are as follow:
|
Decoiler technical parameters |
||
| 1 | Voltage | 380V/50Hz, 3 phase. |
| 2 | Dimensions | 2500 mm*1600 mm*1750 mm. |
| 3 | Weight: | About 2.4 tons. |
| 4 | Hydraulic pump station | 5 solenoid valve pump station. |
| 5 | Hydraulic power | 3KW, 380V. |
| 6 | host rated power: | 4kw (International Trade brand) , cycloid reducer. |
| 7 | Frame | Base with 300H GB I-beam, the box is welded with 16mm thick steel plate. |
| 8 | Supporting spindle | Made of thick-walled seamless steel tube, shaft diameter 194*45 mm. |
| 9 | Feeding width | 0-1500 mm. |
| 10 | Steel coil inner diameter | 470-530 mm, ± 20 mm. |
| 11 | Rated load capacity | Within 5 tons. |
| 12 | Hydraulic cylinder | Up the cylinder diameter 125 mm, 1 (plus rotation). |
| 13 | Electrical control system | The use of Taiwan Delta inverter (5.5kw), and domestic Zhengtai electrical control parts, inverter. |
| 14 | Other | The host plus hydraulic or pneumatic pressure arm. |

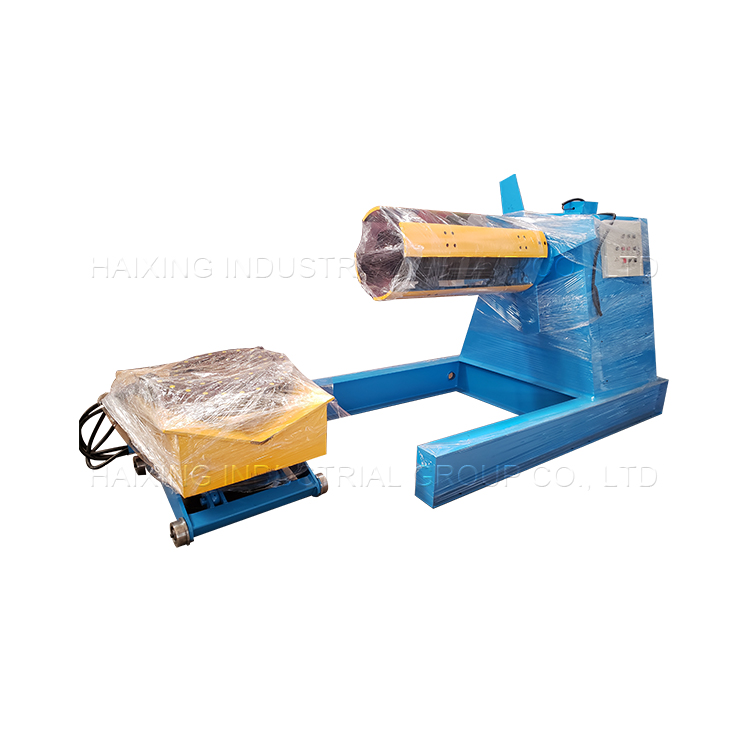

Machine pictures of Hydraulic Uncoiler 5 Tons With Trolley
Roll forming machinery: which could produce metallic roofing tile, trapezoidal or sinusoidal roofing sheet, floor deck, C and Z purlin, expressway guardrail, channel and stud, roller shutter and sandwich panel, etc. Customized profiles and requirements are acceptable, and assistant equipment such as hydraulic decoiler, auto stacker, etc.
