Hot Sale for Hot Sales 1000 Metal Sheet Trapezoidal Roof Tile Roll Forming Machine

Short Description:

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter


Product Detail

Product Tags

Assume full obligation to meet all demands of our customers; accomplish ongoing advancements by promoting the advancement of our customers; become the final permanent cooperative partner of clientele and maximize the interests of shoppers for Hot Sale for Hot Sales 1000 Metal Sheet Trapezoidal Roof Tile Roll Forming Machine, Your inquiry are going to be highly welcomed plus a win-win prosperous development are what we are expecting.
Assume full obligation to meet all demands of our customers; accomplish ongoing advancements by promoting the advancement of our customers; become the final permanent cooperative partner of clientele and maximize the interests of shoppers for 1000 Metal Sheet Trapezoidal Roof Tile Roll Forming Machine, Tile Roll Forming Machine, Trapezoidal Roof Tile, Each customer’s satisfactory is our goal. We’ve been looking for long-term cooperation with each customer. To meet this, we keep up our quality and give extraordinary customer service. Welcome to our company, we are expecting to cooperate with you.

Roof roll forming machine parameters

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter
6 Mainframe 300/350mm H-beam or 350mm
7 Backboard thickness 16mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1200mm
12 Effective width 1160mm
13 Productivity 0-15/min
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

Components:

Manual un-coiler: 1 set

Guiding platform: 1 set

Coil strip leveler: 1 set

Main machine of roll forming: 1 set

Electric-motor: 1 set

Cutting device: 1 set

Hydraulic station: 1 set

PLC control: 1 set

Supporter table: 1 set

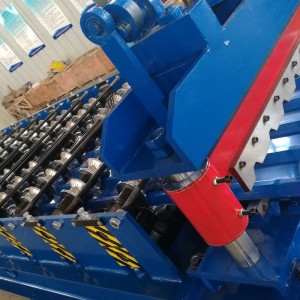

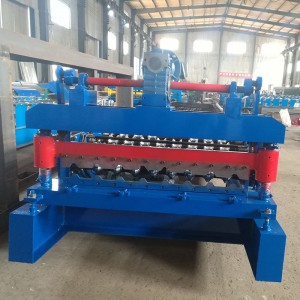

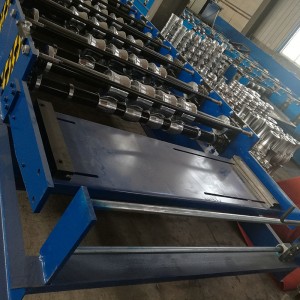

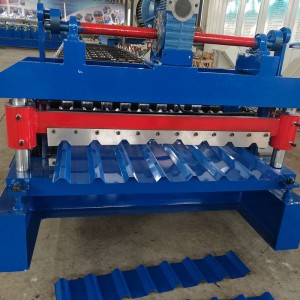

Steel trapezoidal roofing wall tile forming machine details

trapezoidal roof machine(detail) trapezoidal roof machine(detail)2 trapezoidal roof machine(detail)5

Machine package and shipment details

Standard export packing: 1*40 GP container,main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.

FAQ

1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

We have a variety of machinery and production methods to meet the growing needs of our customers.
Our different types of roll forming are easy to operate and highly efficient for Canada, Korea, Pussia, Netherlands, Suriname, Sri Lanka, Malaysia, Vietnam, Nigeria, Tanzania, India, Mongolia, Armenia, Kazakhstan, Vladivostok, Bolivia, Azerbaijan, etc.
