Technical parameters: |
||
|
1 |
Cutting & Hydraulic type |
Double guide pillar |
|
2 |
Hydraulic motor power |
3kw |
|
3 |
Hydraulic Pressure |
10-12MPa |
|
4 |
Voltage |
380V /3phase/ 50 HZ (or as your requirement) |
|
5 |
Cutting drive |
Decelerating motor + Chain drive gear all by high-frequency |
|
6 |
Control System |
Panasonic /Siemens / Schneider / Delta PLC |
|
7 |
Length measurement |
Encoder |
|
8 |
Main Frame |
300mm/350mm H-Beam or 350mm |
|
9 |
Backboard Thickness |
17mm/200mm |
|
10 |
Chain Size |
1inch/2inch |
|
11 |
Feeding Material |
As your requirement |
|
12 |
Feeding Thickness |
0.18mm-0.8mm |
|
13 |
Effective width |
As your requirement |
|
14 |
Productivity |
10-15/min |
|
15 |
Roll Station |
From11 rows |
|
16 |
Roller Diameter |
70mm/75mm (depend on different design) |
|
17 |
Roller material |
45# steel |
|
18 |
Cutter material |
Cr12 mould steel heat-treated hardness of HRC 60-62 degrees |
|
19 |
Total Weight |
About 5 t |
|
20 |
Package of machine |
Water proofing membrane, standard export packing |
|
21 |
Components |
Manual decoiler——————-1 set(5t) Guiding Platform——————1 set Coil Strip Leveler—————–1 set Main Machine of Roll Forming—-1 set Hydraulic Station—————- -1 set Supporter Table——————-1 set Coil Strip Leveler——————1 set |
|
23 |
machine technical parameters can be changed, according to customer’s need. |
|

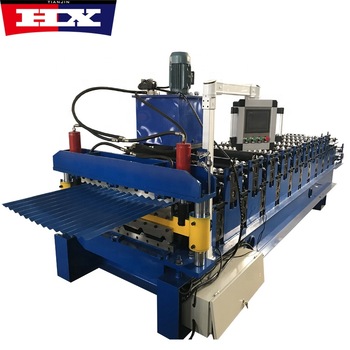

Detail show
Component parts show
Un set manual decoiler free:
PLC control:
Motor electric and hydraulic cylinder:
Consumables:
Related machine:
Our advantage:
Installation: With installation instructions, the line is connected, is very easy to operate, only need to insert the pin.
After service: Two years guarantee for machine; 24 hours technical support by email or calling; If there is any problem found of the machine, we will repair it for free within two years.
Easy to use: Our PLC is installed on the machine to reduce the space.
And the PLC can be rotated to check the sheet while controlling.
