Roof roll forming machine parameters |
||
| 1 | Main motor power | 4kW, 3-phase or as your requests |
| 2 | Hydraulic motor power | 3kW |
| 3 | Hydraulic pressure | 10-12MPa |
| 4 | Voltage | 380V/3-phase/50Hz (or as your requirements) |
| 5 | Control system | PLC delta inverter |
| 6 | Mainframe | 300/350mm H-beam or 350mm |
| 7 | Backboard thickness | 16mm |
| 8 | Chain size | 1 Inch |
| 9 | Feeding material | color steel coils |
| 10 | Feeding thickness | 0.3-0.8 mm |
| 11 | Feeding width | depends on you need |
| 12 | Effective width | 988mm;994mm |
| 13 | Productivity | 0-15/min |
| 14 | Roll station | 11 roll steps;9 roll steps |
| 15 | Roller diameter | 70mm (depends on different design) |
| 16 | Roller material | 45# steel |
| 17 | Cutter material | Cr12 |
| 18 | Cr-plating size | 0.05mm |
| 19 | Overall size | 6000*1400*1150mm |
| 20 | Total weight | 4.8 tons |

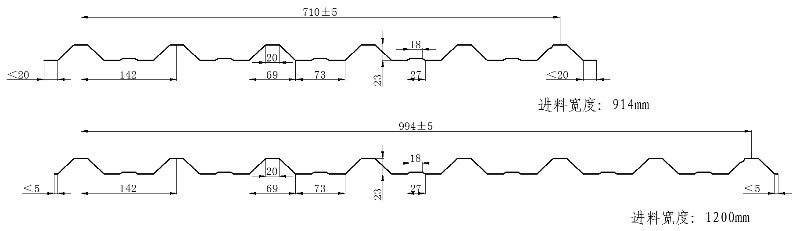

Drawing for reference:
Package and shipment details:
Standard export packing: 1*20 GP container;
Main machine naked and fastened with iron wire in the container;
Rollers were painted with oil and packed with plastic film;
Electrics devices be packed with wooden box.
Terms:
1. Delivery: within 30 days after receiving the deposit.
2. Package: export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
Main parts:
Package:
Detail:
