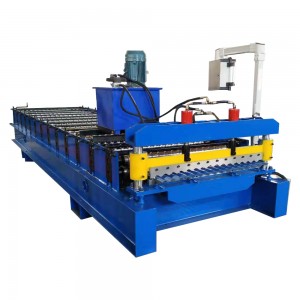

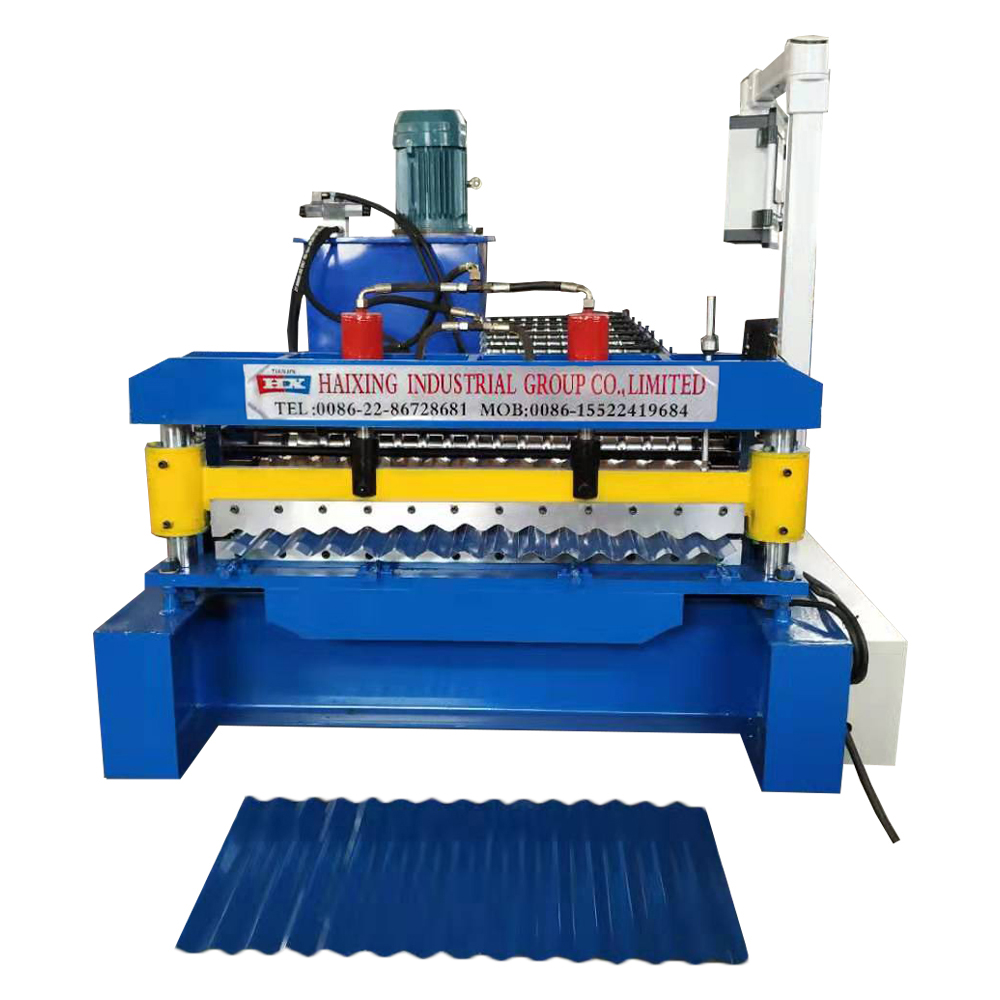

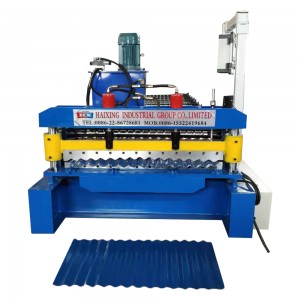

Good Wholesale Vendors China Steel Coloured Sheet Roof Tile Corrugated Panel Roll Forming Machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Machine production process

    Packaging & Delivery

    FAQS

    Product Tags

    We have state-of-the-art tools. Our products are exported towards the USA, the UK and so on, enjoying a fantastic reputation amongst customers for Good Wholesale Vendors China Steel Coloured Sheet Roof Tile Corrugated Panel Roll Forming Machine, For even more inquires make sure you will not wait to make contact with us. Thank you – Your help continuously inspires us.
    We have state-of-the-art tools. Our products are exported towards the USA, the UK and so on, enjoying a fantastic reputation amongst customers for China Roll Forming Machine, Steel Tile Forming Machine, We always hold on the company’s principle “honest, qualified, effective and innovation”, and missions of: allow all drivers enjoy their driving at night, let our employees can realize their value of life, and to be stronger and service more people. We’re determined to become the integrator of our product market and one-stop service provider of our product market.

    Corrugated roof sheet making machine price in India parameters

    1 Main motor power 5.5KW
    2 Hydraulic motor power 5.5KW
    3 Hydraulic pressure 10-12MPa according to the oil pump and pump motor
    4 Voltage 380V/ 3 phase/ 50 Hz (or as your requirements)
    5 Control system Automatic PLC control system
    6 Mainframe 350/400H beams according to machine demands
    7 Wall sheet thickness 16-22mm according to machine demands
    8 Chain size 1 /1.2inch according to machine demands
    9 Feeding material Galvanized steel coil, color steel coil, aluminum steel coil
    10 Feeding thickness 0.3-0.8 mm
    11 Productivity 0 – 25m/min
    12 Roll station Common 11rolls or 25rolls
    13 Roller diameter 70mm, 75mm, 80mm (depends on different design)
    14 Roller material 45# steel
    15 Cutter material Cr12MOV
    16 Cr-plating size 0.05 mm

    Corrugated roof sheet making machine price in india part details

    roof machine details

    01. Mainframe: GB H steel, hard texture.

    02. Operator station: 360-degree rotation display.

    03. Cutter: The main material is Cr12, which has high hardness.

    04. Retaining pad: Prevent the nut from loosening.

    05. Easy hanging: Prevent the machine from scratching during the movement.

    06. Wheel: generally 45# steel, good hardness.

    07. Travel switch: Limit the position or travel of the machine.

    08. Rear hand knife: cut in advance to prevent waste.

    09. Resin wheel: used to record the length of discharge and record data is more accurate.

    10. Electric control cabinet: The main brands are Panasonic / Siemens / Schneider / Delta PLC

    Why choose us?

    Our company has a professional team of engineers and export team.
    Engineer: 25;
    Factory workers: 88;
    Finance staff: 2;
    Purchasing staff: 12;
    Operator: 3;
    Sales staff: 8;
    After-sales staff: 5.

    Our machine is warranted for 24 months.
    During the warranty period, if the damaged part cannot be repaired, we can send the new part for replacement of the damaged part for free, but you will need to pay the courier fee yourself. If after the warranty period, we can negotiate to resolve the issue and provide technical support throughout the life of the device.



  • Previous:
  • Next:

  • Drawing confirmation

    ——After confirming the final profile with the customer, the team of 12 engineers worked out detail workable parts CAD drawings;

    ——After 5 recheck, the production manager arrangement the material for all machine parts;

    Start production

    ——Our company owns 12sets rough lathe machine, 20sets precise lathe machine, and 30sets shearing machine, all machine parts start to manufacture.

    Product Inspection

    ——Our company Own 3sets hard test machine, and 4sets surface thickness Chromium test machine.

    ——Roller and shaft: Our Inspect team test 90% wheels and shafts, confirm all parts size precise and performance after processing.

    ——Our Inspect team test all roller surface, confirm all part surface paint above 5um.

    ——Mainframe and medium plate: Our Inspect team test the mainframe and plate cutting precise.

    Assembling machine

    ——5 worker assemble and welding one machine body frame by three days.

    Machine painting

    ——Putty ensure weld parts surface smoothly, and environment-friendly paint ensure protect worker body and environment.

    Machine Manual use test

    ——Confirm the output sheet tolerance within 2mm.

    Cutter production

    ——According to the finally manufacture sheet, confirm the blade precise profile, Cr12MOV steel cutting knife finished by laser cutting.

    Storage

    ——To protect the machine surface clear and without damage, we paint again and package by the film.

    Machine production process

    Packaging

    Our products are usually available in two packaging methods: plastic film packaging and plastic film + wooden box packaging.

    1. The main machine is covered with plastic film.

    2. PLC control box, spare parts, and other small parts are packed by wooden cartons.

    Delivery

    Two days before delivery, we unpacked and repainted the machine and repackaged it.

    packing & transport

    1) Q: Do you have after-sales support?

    A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

    2) Q: How do your machines compare with other big companies in this market?

    A: We are up to date with the latest technology and improve our machines accordingly.

    3) Q: How does your factory do regarding quality control?

    A: Quality is the priority. we always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it’s packed for shipment.

    4) Q: Do you sell only standard machines?

    A: No, most of our machines are built according to customers’ specifications, using top brand name components.

    5) Q: Can you make the machine according to my design or prototype?

    A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
