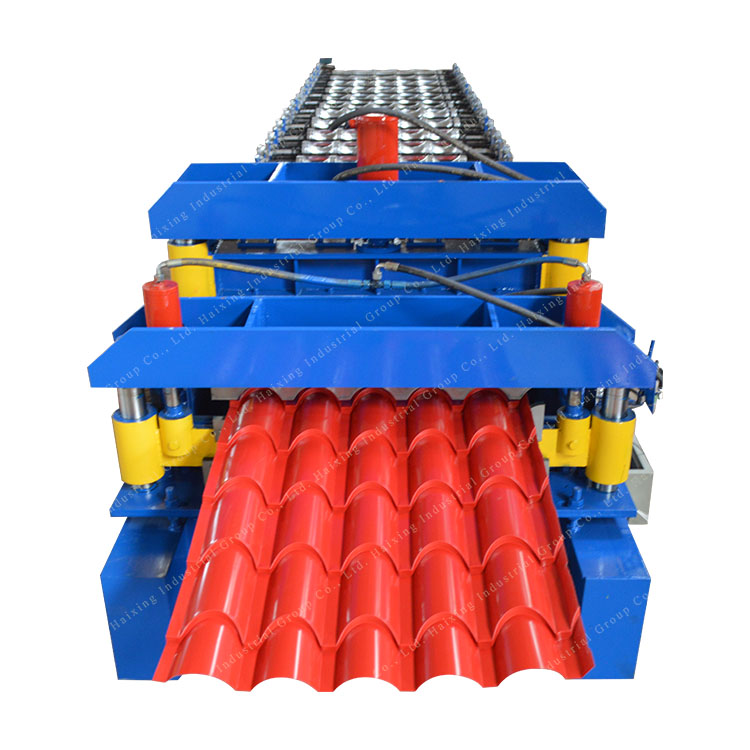

The styled glazed metal roof tile forming machines can produce very thin wall products while greatly simplifying the production process and increasing production efficiency.
The optional equiment includes a common discharge machine, a hydraulic discharge machine, and an automatic feeder.
|
Roof roll forming machine parameters |
||
| 1 | Main motor power | 4kW, 3-phase or as your requests |
| 2 | Hydraulic motor power | 3kW |
| 3 | Hydraulic pressure | 10-12MPa |
| 4 | Voltage | 380V/3-phase/50Hz (or as your requirements) |
| 5 | Control system | PLC delta inverter |
| 6 | Mainframe | 300/350mm H-beam or 350mm |
| 7 | Backboard thickness | 16mm |
| 8 | Chain size | 1 Inch |
| 9 | Feeding material | color steel coils |
| 10 | Feeding thickness | 0.3-0.8mm |
| 11 | Feeding width | 1000mm |
| 12 | Effective width | 836mm |
| 13 | Productivity | 0-15/min |
| 14 | Roll station | 13 roll steps (according to different design) |
| 15 | Roller diameter | 70mm (depends on different design) |
| 16 | Roller material | 45# steel |
| 17 | Cutter material | Cr12 |
| 18 | Cr-plating size | 0.05mm |
| 19 | Overall size | 6800*1400*1150mm |
| 20 | Total weight | 4.8 tons |
Components:
Manual decoiler: 1 set

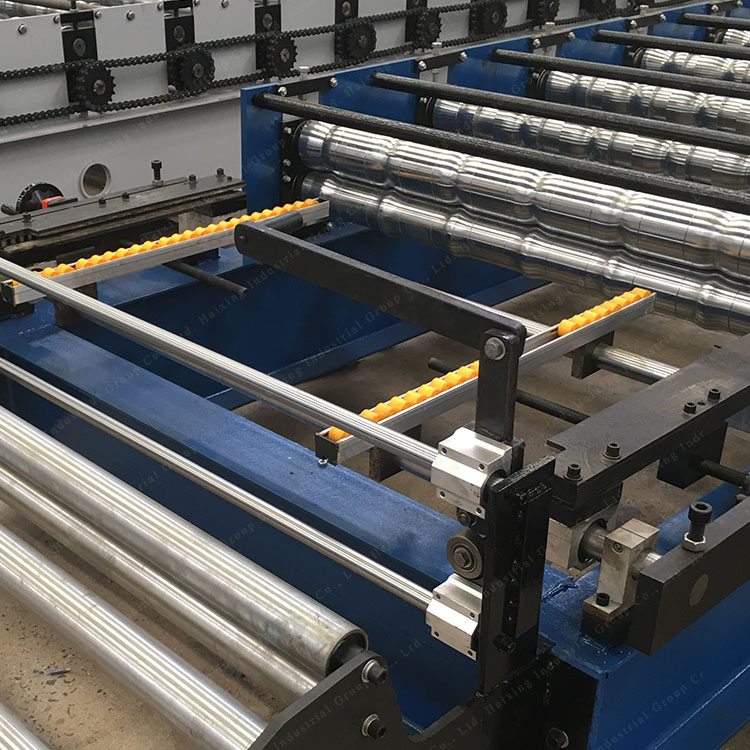

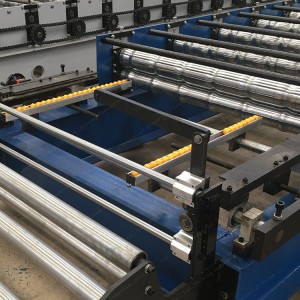

Guiding platform: 1 set
Coil strip leveler: 1 set

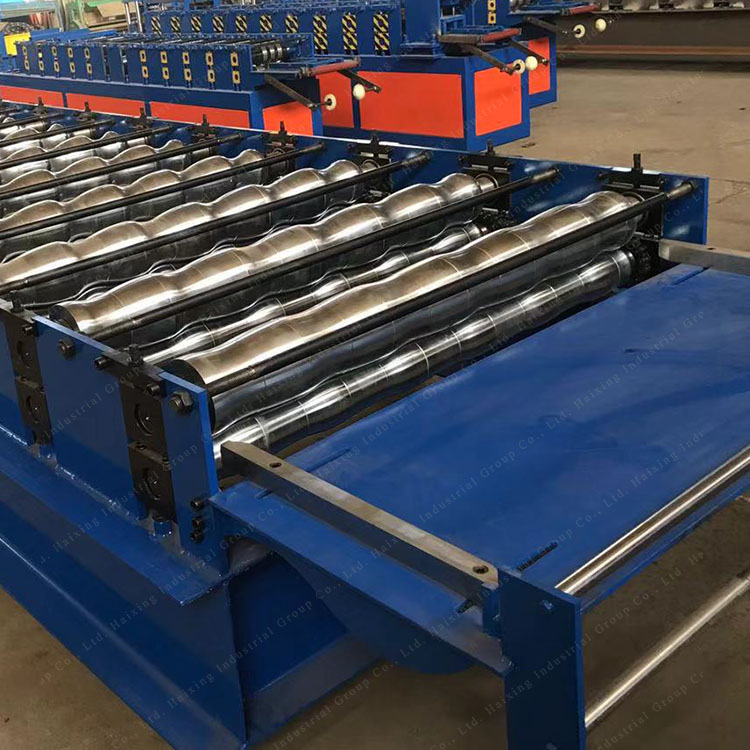

Main machine of roll forming: 1 set
Electric-motor: 1 set
Cutting device: 1 set

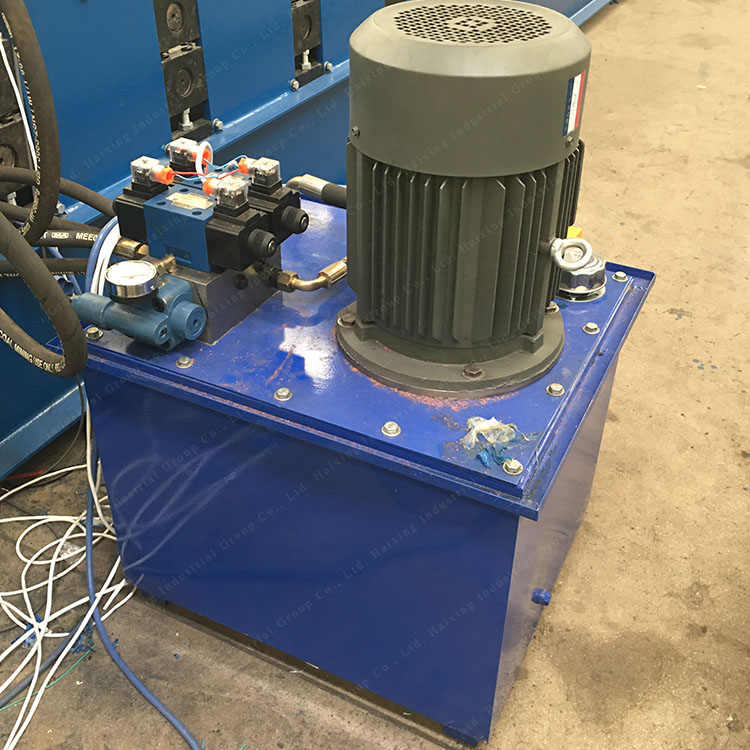

Hydraulic station: 1 set
PLC control: 1 set
Supporter table: 1 set
Machine picture display
Machine package and shipment details
Standard export packing: 1*40 GP container,main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.
