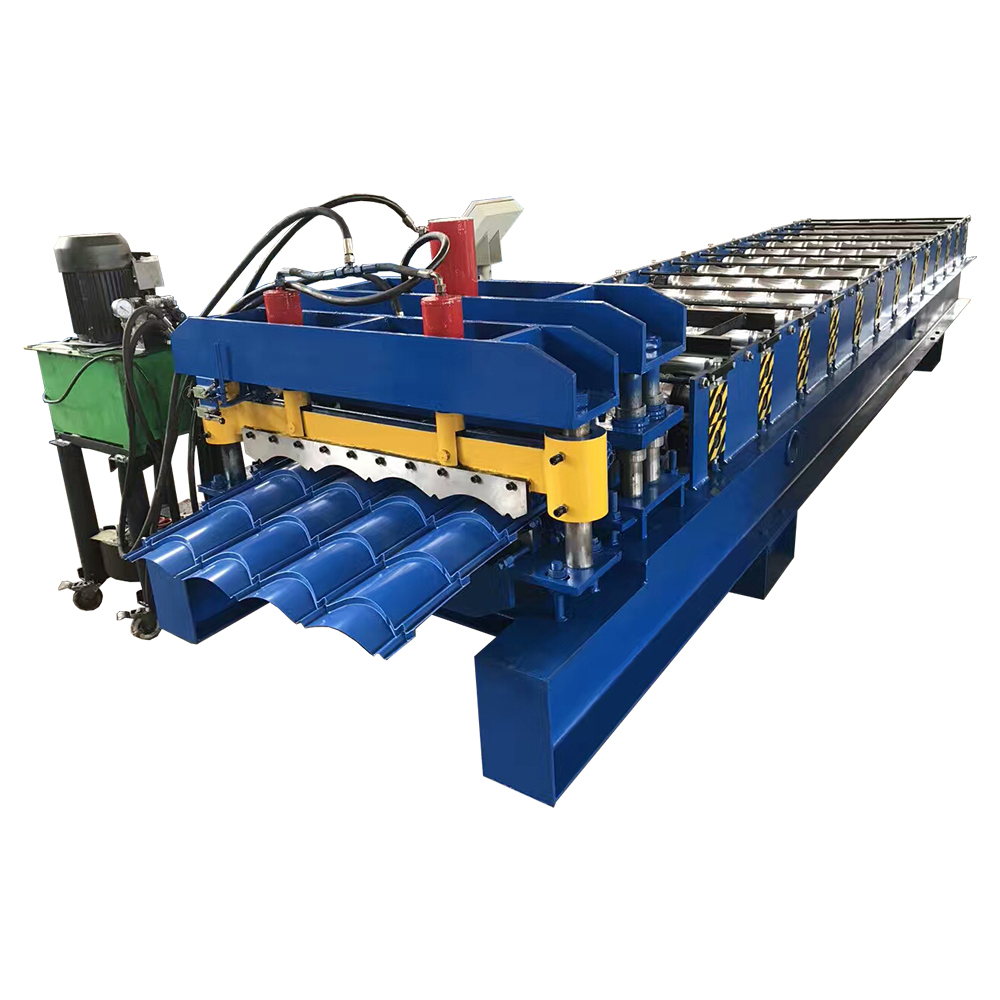

Glazed Roof Panel Making Machines

Short Description:

The glazed roof panel making machines is mainly composed of the discharging machine, the feeding introduction platform, the forming main machine, the die pressing device, the forming shearing device, the hydraulic station, the computer control system, and the finished product bracket.


Product Detail

Product Tags

The glazed roof panel making machines is mainly composed of the discharging machine, the feeding introduction platform, the forming main machine, the die pressing device, the forming shearing device, the hydraulic station, the computer control system, and the finished product bracket.

The optional equipment includes a common discharge machine, a hydraulic discharge machine, and an automatic feeder.

Roof roll forming machine parameters

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter
6 Mainframe 300/350mm H-beam or 350mm
7 Backboard thickness 16mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1000mm
12 Effective width 836mm
13 Productivity 0-15/min
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

Components:

Manual decoiler: 1 set

Guiding platform: 1 set

Coil strip leveler: 1 set

Main machine of roll forming: 1 set

Electric-motor: 1 set

Cutting device: 1 set

Hydraulic station: 1 set

PLC control: 1 set

Supporter table: 1 set

Machine picture display

glazed roof machine12 glazed roof machine13 glazed roof machine14

Sales Service:
1. We provide the technical support for whole life of our machines.

2. If buyers need the technician to go abroad, we will arrange the technician, but the buyers should take all the cost, including visa, round trip ticket etc.
