We are professional: Our factory has extensive experience in product and export processes. We have an ultra-low price advantage! Our factory helps you save money from many details:
1, lower labor costs
2, convenient transportation
3, perfect supporting industry
|
Glazed Iron Automatic Roof Roll Forming Machine parameters |
||
| 1 | Main motor power | 4kW, 3-phase or as your requests |
| 2 | Hydraulic motor power | 3kW |
| 3 | Hydraulic pressure | 10-12MPa |
| 4 | Voltage | 380V/3-phase/50Hz (or as your requirements) |
| 5 | Control system | PLC delta inverter |
| 6 | Mainframe | 300/350mm H-beam or 350mm |
| 7 | Backboard thickness | 16mm |
| 8 | Chain size | 1 Inch |
| 9 | Feeding material | color steel coils |
| 10 | Feeding thickness | 0.3-0.8mm |
| 11 | Feeding width | 1000mm |
| 12 | Effective width | 836mm |
| 13 | Productivity | 0-15/min |
| 14 | Roll station | 13 roll steps (according to different design) |
| 15 | Roller diameter | 70mm (depends on different design) |
| 16 | Roller material | 45# steel |
| 17 | Cutter material | Cr12 |
| 18 | Cr-plating size | 0.05mm |
| 19 | Overall size | 6800*1400*1150mm |
| 20 | Total weight | 4.8 tons |
Components:
Manual decoiler: 1 set
Guiding platform: 1 set
Coil strip leveler: 1 set
Main machine of roll forming: 1 set
Electric-motor: 1 set
Cutting device: 1 set
Hydraulic station: 1 set
PLC control: 1 set
Supporter table: 1 set

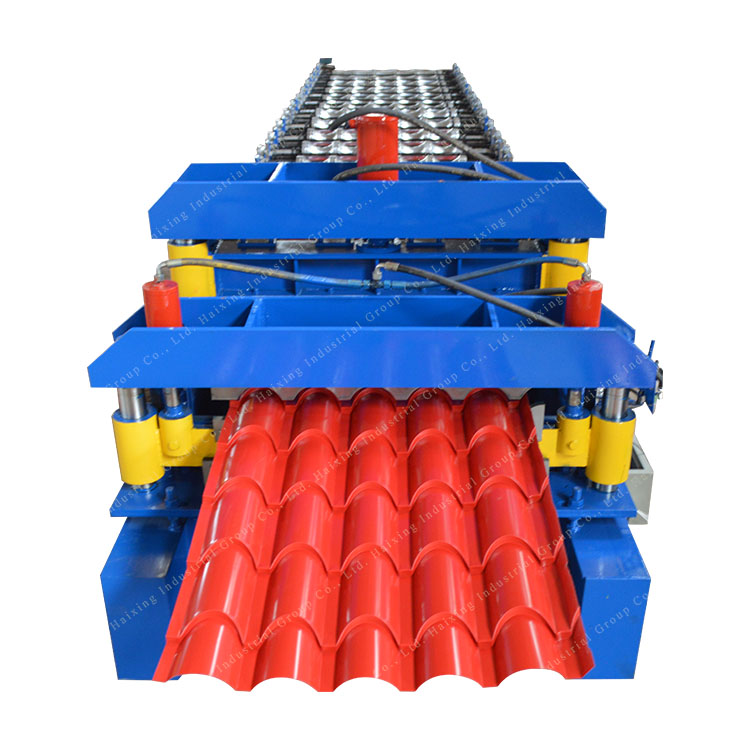

Glazed Iron Automatic Roof Roll Forming Machine picture display
Packaging Details：
1. Machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton box.
Terms:
1. Delivery: within 60 days after receiving the deposit.
2. Package: export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
