We generally continually give you quite possibly the most conscientious shopper company, and the widest variety of designs and styles with finest materials. These endeavours include the availability of customized designs with speed and dispatch for Factory Outlets Aluminum Zinc Plate Colorful Stone Coated Metal Roofing Tile Machinery, We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
We generally continually give you quite possibly the most conscientious shopper company, and the widest variety of designs and styles with finest materials. These endeavours include the availability of customized designs with speed and dispatch for Color Stone Coated Roof Tile Machine, Metal Stone Coated Roof Tile Machine, Roof Tile Machine, Strict quality control is executed in each link of the whole production process.We sincerely hope to establish the friendly and mutual-beneficial cooperation with you. Based on high quality products and solutions and perfect pre-sales /after-sales service is our idea, some clients had cooperated with us for more than 5 years.
Our Steel Colored Stone Coated Production Line meets the diverse requirements of our customers.
The Steel Colored Stone Coated Production Line is described in detail as follows:
NO. 1 Auto bottom glue spraying section
| Appearance size | 4000*1000*2000mm |
| Driving section | 3KW Excitation motor or frequency speed regulation (AS per customers’ requirements) |
| Automatic pressure spray tank | 1set; Capability:200kg; Range:0.6~1Mpa |
| Automatic glue machine motor | Servo motor; Power:750w; PLC |
| Automatic spray gun | 4 set (spare parts) |
| Dust collecting fan | 1 set; Power: 200w |
| Damp proof lamp | 1 pcs; Power: 100w |
| Conveying device | Chain reciprocating |
| Air compressor | 1 set; Power: 7.5kw |
| Dust control of axial flow fan | 1 set; Power: 200w |
| Agitator | 1 set; Power: 1.5kw |
NO. 2 Auto stone coated section
| Appearance size | 3500*1000*1500mm |
| Framework | Steel welding |
| Conveying device | Chain reciprocating |
| Automatic sand hopper | 1 set; Capability: 200kg |
| Bucket lift | 1 set |
| Manual sandblast gun | 4 sets |
NO. 3 The first time drying section
| Appearance size | 25000*1000*1200mm |
| Framework | Steel welding |
| Frame type thermal insulation wall | 1.2mm cold steel with Rock wool |
| Automatic temperature controller | 4 sets; Range: 0°~160° |
| Infrared heating tube | 30pcs; Power: 30kw |
| Conveying device | Chain reciprocating |
| Air cooling device | 1 set; Power: 200w |
NO. 4 Auto face glue spraying section
| Appearance size | 3000*1000*2000mm |
| Framework | Steel welding |
| Damp proof lamp | 1 pcs; Power:100w |
| Automatic pressure spray tank | 1 set; Capability: 200kg; Range: 0.6~1Mpa |
| Conveying device | Chain reciprocating |
| Automatic spray gun | 4 sets (spare parts) |
| Manual patch glue gun | 4 sets |
| Dust control of axial flow fan | 1 set; Power: 200w |
| Automatic glue machine motor | Servo motor; Power: 750w |
NO. 5 The second time drying section
| Appearance size | 30000*1000*1200mm |
| Framework | Steel welding |
| Frame type thermal insulation wall | 1.2mm cold steel with Rock wool |
| Automatic temperature controller | 4 sets; Range: 0°~160° |
| Infrared heating tube | 30pcs; Power: 30kw |
| Conveying device | Chain reciprocating |
| Air cooling device | 1 set; Power: 200w |

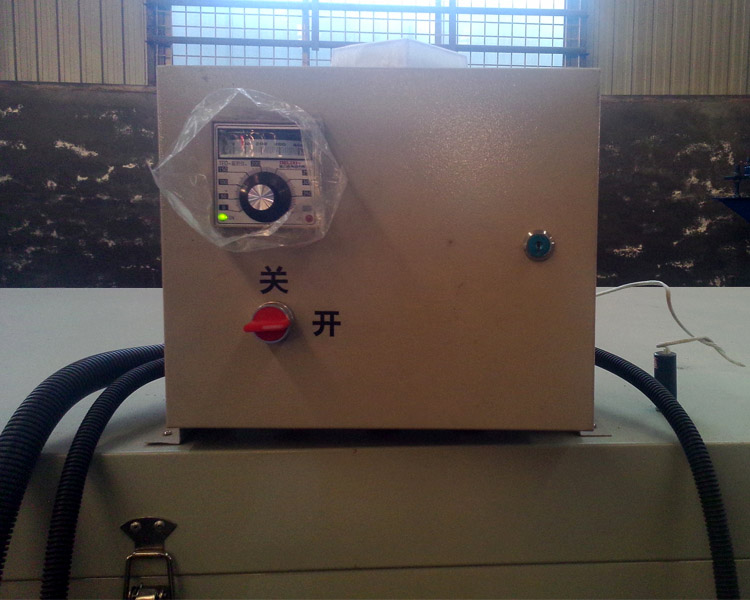

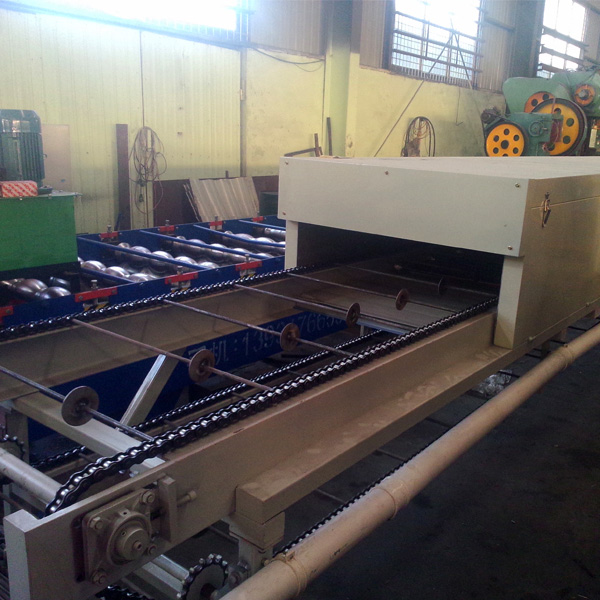

Machine Photos：
Packaging Details：
1. Machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton box.
