We’ve got a remarkably efficient crew to deal with inquiries from clients. Our aim is “100% purchaser satisfaction by our item high-quality, selling price & our crew service” and appreciate an excellent popularity amid consumers. With quite a few factories, we could present a wide variety of Factory Cheap Hot Steel Door Frame Roll Forming Making Machine For Sale, Our firm is dedicated to offering customers with substantial and secure top quality items at competitive cost, earning every customer contented with our services.
We’ve got a remarkably efficient crew to deal with inquiries from clients. Our aim is “100% purchaser satisfaction by our item high-quality, selling price & our crew service” and appreciate an excellent popularity amid consumers. With quite a few factories, we could present a wide variety of Door Frame Making Machine, Steel Door Frame Roll Forming Machine, Steel Making Machine, Our company has abundant strength and possesses a steady and perfect sales network system. We wish we could establish sound business relationships with all customers from at home and abroad on the basis of mutual benefits.
|
Steel profile door frame roll forming machine parameters
|
| 1 |
Material width |
3 sizes. Waiting for buyer exactly profile |
| 2 |
How to adjust size |
Option : by PLC (It can be adjust by PLC and also in hand wheel)
One side fixed and the other is adjustable by manual or PLC |
| 3 |
Base frame |
base frame 30 mm thick steel plate process the surface on CNC planer to keep it leveling and drill bolts and key slot by CNC |
| 4 |
Rolling Speed |
12-15m/min(not include cutting time) |
| 5 |
Rolling Thickness |
1.2-2.0mm |
| 6 |
Material |
GI or metal |
| 7 |
Control System |
PLC (Panasonic) as list in the note |
| 8 |
decoiler |
3 Ton manual decoiler |
| 9 |
Leveling |
Up in 3 roller, down in 4 roller |
| 10 |
Roller Stations |
About 20 stations |
| 11 |
Roller Material |
Gcr15, coated with chrome HRC58-62 degree |
| 12 |
Shaft Material and DIA |
¢70mm, material is 45# forge steel |
| 13 |
Maim Motor Power |
11kw brake motor |
| 14 |
Hydraulic Station Power |
5.5kw |
| 15 |
Hydraulic Pressure |
20Mpa |
| 16 |
Capacity of tonnage for punching |
22Tons |
| 17 |
Hydraulic pump brand |
Lichao |
| 18 |
Cutting |
Hydraulic post-cutting for cut end product |
| 19 |
Extra cutter |
One more cutter for each profile |
| 20 |
Material Of Cutting |
Cr12Mov quenching 58-62ºC |
| 21 |
Electric Source |
380V, 60HZ,3 phase |
| 22 |
Way Of Drive |
1.2 inch single chain |
| 23 |
Color Of The Machine |
Yellow and blue |
| 24 |
Machine Type |
Iron Cast |
| 25 |
Emergency switch |
In main machine and control panel all have emergency switch for forbid any urgently accident. |
| 26 |
Protect cover |
Complete mobile safety cover from roll forming to the cutter. |
| 27 |
Size of the machine |
L*W*H 12m*1.2m*1.2m |
| 28 |
Container Need |
1 x40 feet (base on final) |
The steel door frame roll forming machine is a complete product line. After roll forming by our production line, we could make very smooth and beautiful steel door frame without any scratch on surface.

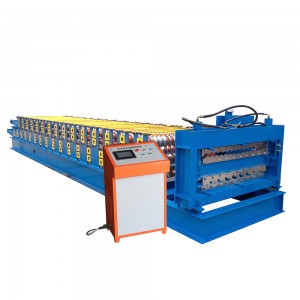

Machine picture display
Packaging Details：
1. Machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton box.
Terms:
1. Delivery: within 60 days after receiving the deposit.
2. Package: export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
