Eps Sandwich Panel Roofing Tiles

Short Description:

Sandwich panel as kind of construction material is widely used in construction, heat preservation, packaging, frozen, daily necessities, industrial casting, etc.
It can also be used to display the assembly places, commodity cabinet, signs and toys manufacture.
It mainly applies to the wall exterior insulation, heat preservation, floor heating in the wall to adapt national building energy requirements.


Product Detail

Product Tags

Sandwich panel as kind of construction material is widely used in construction, heat preservation, packaging, frozen, daily necessities, industrial casting, etc.
It can also be used to display the assembly places, commodity cabinet, signs and toys manufacture.
It mainly applies to the wall exterior insulation, heat preservation, floor heating in the wall to adapt national building energy requirements.

Main parameters

Thickness 60/75/90/100/120/150/180mm
Material of the panels composed of colorful steel sheets and EPS
Unit Weight of Core Material 8-16 kg/cbm
Width of the panels 950mm for wall and 960mm for roof
Panels type Wall panel and Roof panel
Surface Texture and Appearance Small wave, Flat, Embossment, Big rib
Heat Insulating Material EPS (Polystyrene)
Thickness of steel sheet PPGI/PPGL:0.3-0.8mm (PE or PVDF Coating)
GI/GL:0.3-0.8mm (Zinc coating 40-275g/m2)
Stainless steel:0.4-0.8mm
Aluminum sheet :0.5-1.0mm
Color of the coating Ocean Blue ,Grey White or Customized
Type of sheet Coating PVDF, HDP, SMP, PE
Type of Base steel sheet Hot-dip galvanized, Al-Zn coated
Insulation density Rock wool:80–120kg/m3  Glass wool:48kg/m3
Characteristic Good temp-keeping and heat insulation
Installation Convenient and flexible without the large- size lifting devices so that the construction period is limited with the lower comprehensive costs
Fine fireproof Test by national quality inspection center for fireproof building material, all its index reach grade A1
Heavy load bearing capacity High strength and high rigidness and is suitable either for the weight – bearing structure or for the protective structure

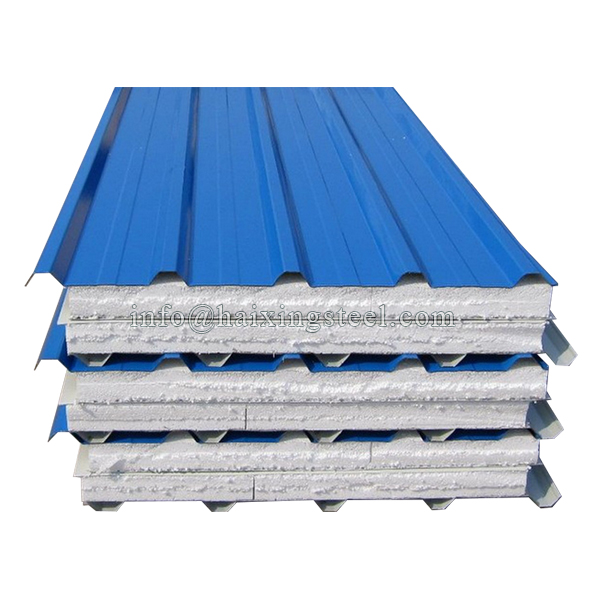

Sandwich panel photos

sandwich-pannels-E

Advantages

1. Increased supporting strength

2. Reduced project cost

3. Light weight

4. Easy and fast for installation

5. Durable: 20 years

6. Fire, Water Proof

Why choose us

We have an excellent and professional team;

We accept any drawings or your samples to develop new products;

Any minor problems will be resolved at the earliest possible time;

We always provide relevant technical support, quick response, all your consultations will reply within 24 hours.
