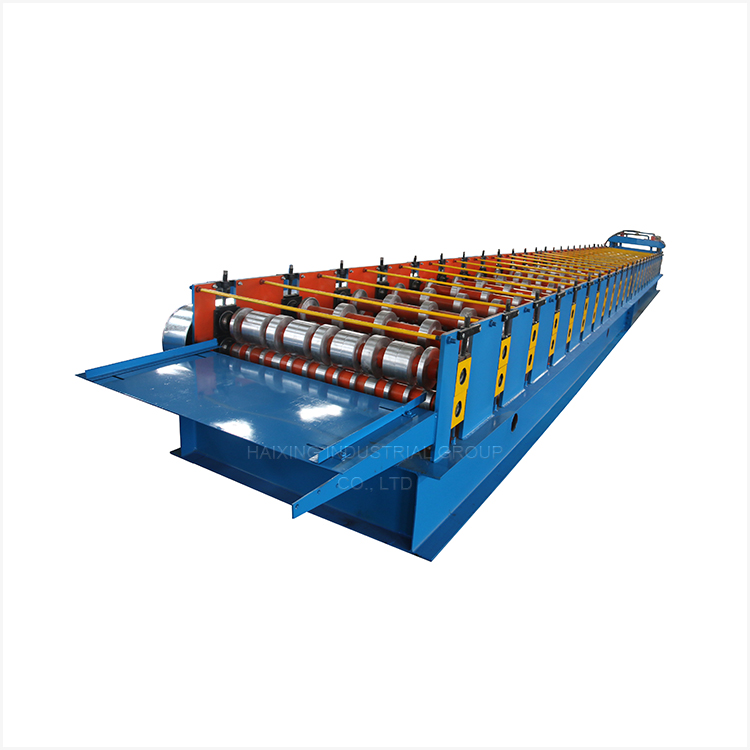

Deck Floor Cutting Cold Roll Forming Machine

Short Description:

FOB Price: Get Latest Price from inquiry

Min.Order Quantity: 1 set

Supply Ability: 200 sets per Month

Port: TIANJIN

Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.

Lead Time: 25-35 days after received the deposit

Send email to us Download as PDF

Product Detail

Product Tags

The advantages of Deck Floor Cutting Cold Roll Forming Machine
1. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2. Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, maintenance-free.
3. We can make and design will kinds of roll forming machine according to customer’s request.
Sales Service:
1.we provide technical support for the whole life of our machines.
2. If buyers need the technician to go abroad, we will arrange the technician, but the buyers should take all the cost, inculding visa, roundtrip ticket, etc.

The main technical parameters of Deck Floor Cutting Cold Roll Forming Machine

Main Frame	welded with 450H steel
Middle plate	18mm
Forming machine guide feeding frame form	side roller type
Forming machine form	wall plate chain drive
Shaft diameter	¢95 mm
Chain size	1.5 inches (Brand “Zhenghe” Imported Japan sprocket)
Roll forming machine motor power	2-15KW (Brand Siemens)
Roll forming speed	8-12m/min
Rollers number	27Rows
Rolling material	high grade 45# forging steel with chromium plate
Hard chrome plating on the roll surface	0.03mm
Hydraulic pump motor	4KW (Lichao, Shanghai )
Hydraulic station oil pump	gear pump
Cutting method	connecting rod three-knife hydraulic cutting
The material of the cutting blade	Cr12
Cutting blade heat treatment	quenched treatment 58℃-62℃
Rolling raw materials thickness	0.7-1.2mm
Length Tolerance	± 2mm
Electric control box configuration	inverter (anchuan), PLC (Panasonic), encoder (OMRON), Other electrical components are “Schneider” brand

Deck Floor Cutting Cold Roll Forming Machine workflow

Deck Metal Floor Machine workflow

Deck Floor Cutting Cold Roll Forming Machine details

floor deck machine det

Application of decking floor tiles

Floor decking board products are widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, steel structures such as Olympic venues and stadiums.

Deck Floor Cutting Cold Roll Forming Machine Packaging & Shipping

1. Main roll forming machine package by Plastic film ;
2. Main machine spare parts package by paper box ;
3. We have professional technicians for loading Guaranteed the goods load into container without any damage.
4.Transportation: Machines need one 40 feet container to hold;
5. Please provide us the nearest port name, we will ask shipping cost and arrange to ship for you.

floor deck machine packing

Our Services

a. 18 months warranty period, we will offer technical support for the whole life.

b. Engineer available to install machine and train your workers overseas.

c. 24hours open for you, any need and questions, we will reply to you as soon as possible.

Certificates

Haixing Industrial Group Co., Ltd. was established in 1996 and is located in Hebei District, Tianjin. It is a professional cold forming machine manufacturer and exporter with over 20 years of experience.
