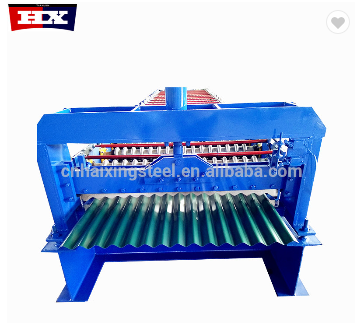

Corrugated Roof Metal Sheet Roll Forming Machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Corrugated Roof Metal Sheet Cold Roll Forming Machine parameters:

    1 Main motor power 4kW, 3 phase or as your requests
    2 Hydraulic motor power 3kW
    3 Hydraulic pressure 10-12MPa
    4 Voltage 380V/ 3 phase/ 50 Hz (or as your requirements)
    5 Control system PLC delta inverter
    6 Main frame 300/350 mm H-beam
    7 Backboard thickness 16 mm
    8 Chain size 1 Inch
    9 Feeding material color steel coils
    10 Feeding thickness 0.3-0.8 mm
    11 Productivity 0-15/ min
    12 Roll station 13 roll steps (according to different design)
    13 Roller diameter 70 mm (depends on different design)
    14 Roller material 45# steel
    15 Cutter material Cr12
    16 Cr-plating size 0.05 mm

    Different parts of the machine:

    Decoiler: the common machine with 5 tons manual decoiler or you also can choose electric decoiler or hydraulic decoiler



    decoiler type

    PLC control console:

    PLC control console

    Roll forming parts and Output table:

    roll forming&output table

    Cutting parts: common is hydraulic pump drive cutting or you can choose electric motor drive cutting as follows:

    drive cutting

    Easy-broken parts:

    Easy-broken parts
