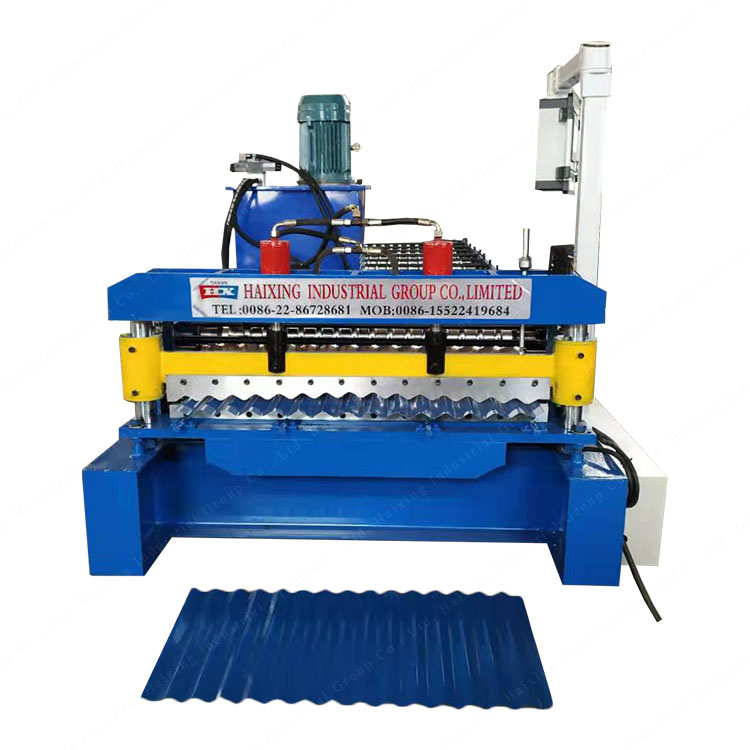

Corrugated Roof Metal Sheet Cold Roll Forming Machine parameters:
| 1 | Main motor power | 4kW, 3 phase or as your requests |
| 2 | Hydraulic motor power | 3kW |
| 3 | Hydraulic pressure | 10-12MPa |
| 4 | Voltage | 380V/ 3 phase/ 50 Hz (or as your requirements) |
| 5 | Control system | PLC delta inverter |
| 6 | Main frame | 300/350 mm H-beam |
| 7 | Backboard thickness | 16 mm |
| 8 | Chain size | 1 Inch |
| 9 | Feeding material | color steel coils |
| 10 | Feeding thickness | 0.3-0.8 mm |
| 11 | Productivity | 0-15/ min |
| 12 | Roll station | 13 roll steps (according to different design) |
| 13 | Roller diameter | 70 mm (depends on different design) |
| 14 | Roller material | 45# steel |
| 15 | Cutter material | Cr12 |
| 16 | Cr-plating size | 0.05 mm |
Popular drawing of corrugated roof metal sheets:
762 drawing, 850 drawing, 836 drawing, 1032 drawing
Different parts of the machine:
Decoiler: the common machine with 5 tons manual decoiler or you also can choose electric decoiler or hydraulic decoiler
PLC control console:
Roll forming parts and Output table:
Cutting parts: common is hydraulic pump drive cutting or you can choose electric motor drive cutting as follows:
Easy-broken parts:
Our Advantage:
1. Our machine motor is GERMAN BRAND SEMENS;
2. Our roller spacer is 4 mm thick seamless steel pipe;
3. Our output table can adjust the height according to customer demands;
4. Our PLC control console can look around 360 degrees;
5. All easy-broken pars can be changed within 14 months in free.
Other relative roof roll forming machine:
Our company other products:
Relative raw material:
Packaging Details:
1. The main machine is covered by the plastic film.
2. PLC control box, spare parts, and other small parts are packed by wooden carton box.
Sales Service:
1. We provide the technical support for the whole life of our roof roll forming machines.
2. If buyers need the technician to go abroad, we will arrange the technician, but the buyers should take all the cost, including visa, round trip ticket, etc.
