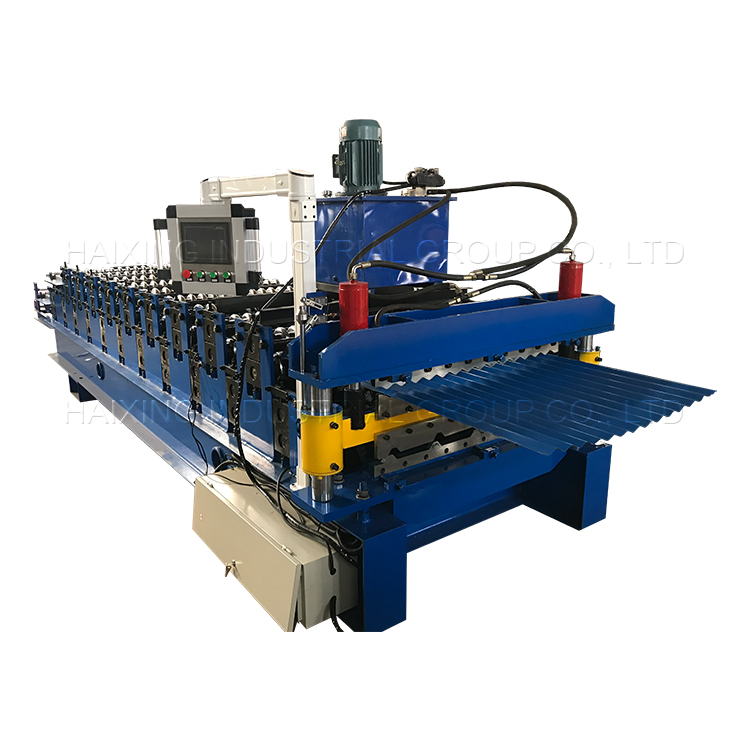

Corrugated Metal Roof Sheet Tile Making Machine

Short Description:

1. Our machine motor are GERMAN BRAND SEMENS;
2. Our roller spacer are 4 mm thick seamless steel pipe;
3. Our output table can be adjust height according customer demands;
4. Our PLC control console can be look around 360 degree;
5. All easy-broken pars can be change within 14 month in free.


Product Detail

Product Tags

Corrugated Metal Roof Sheet Tile Making Machine parameters:

1 Main motor power 4kW, 3 phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/ 3 phase/ 50 Hz (or as your requirements)
5 Control system PLC delta inverter
6 Main frame 300/350 mm H-beam
7 Backboard thickness 16 mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8 mm
11 Productivity 0-15/ min
12 Roll station 13 roll steps (according to different design)
13 Roller diameter 70 mm (depends on different design)
14 Roller material 45# steel
15 Cutter material Cr12
16 Cr-plating size 0.05 mm

Popular drawing of corrugated roof metal sheets:

762 drawing, 850 drawing, 836 drawing, 1032 drawing
corrugated drawing
Different parts of the machine:

Decoiler: common machine with 5 tons manual decoiler or you also can choose electric decoiler or hydraulic decoiler

decoiler type

PLC control console:

PLC control console for roof making machine

Cutting parts: common is hydraulic pump drive cutting or you can choose electric motor drive cutting as follows:

drive cutting for roof making machine

Our Advantage:

1. Our machine motor are GERMAN BRAND SEMENS;
2. Our roller spacer are 4 mm thick seamless steel pipe;
3. Our output table can be adjust height according customer demands;
4. Our PLC control console can be look around 360 degree;
5. All easy-broken pars can be change within 14 month in free.

Other relative roof roll forming machine:

roof roll forming machine

Relative raw material:

raw material pictures

Packaging Details:

1. Main machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton box.

roof machine packaging

Sales Service:

1. we provide the technical support for whole life of our roof roll forming machines.
2. If buyers need the technician to go abroad, we will arrange the technician, but the buyers should take all the cost, including visa, round trip ticket etc.
