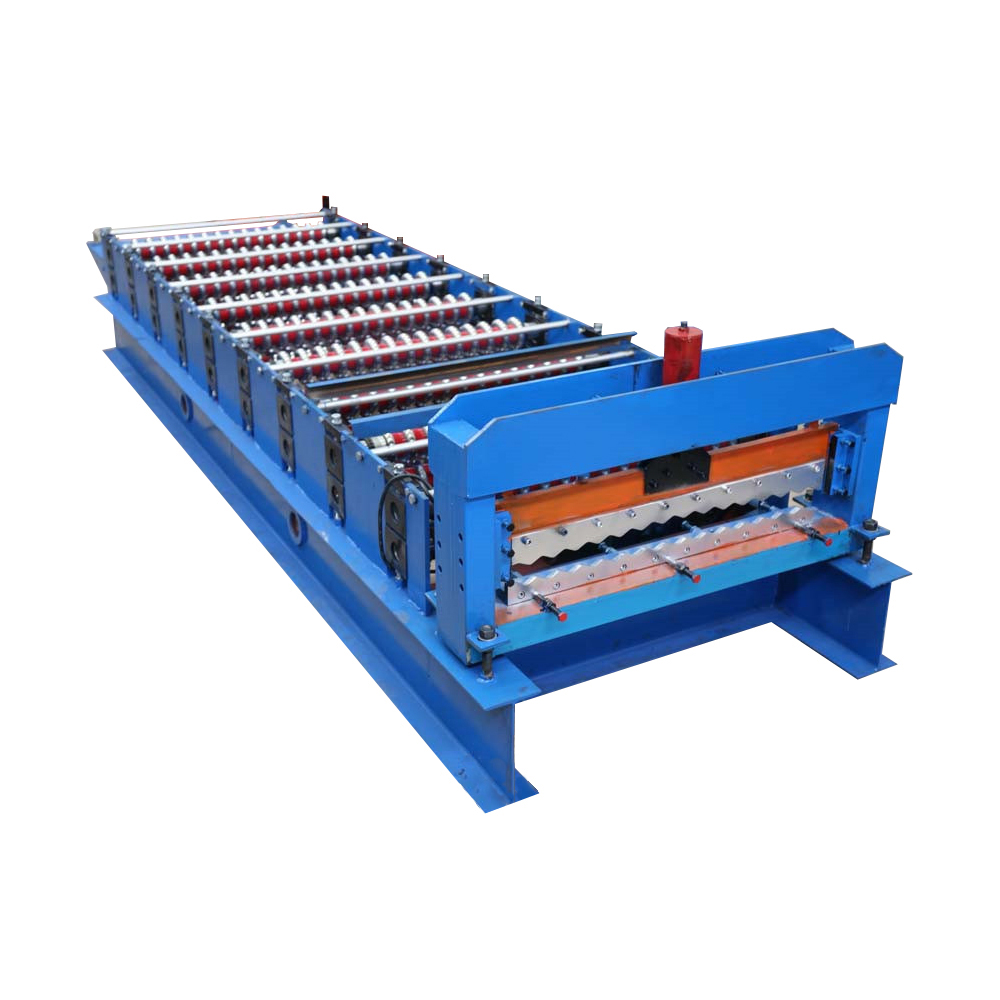

Corrugated iron automatic roof roll forming machine parameters
| 1 | Main motor power | 4kW, 3 phase or as your requests |
| 2 | Hydraulic motor power | 3kW |
| 3 | Hydraulic pressure | 10-12MPa |
| 4 | Voltage | 380V/ 3 phase/ 50 Hz (or as your requirements) |
| 5 | Control system | PLC delta inverter |
| 6 | Main frame | 300/350 mm H-beam |
| 7 | Backboard thickness | 16 mm |
| 8 | Chain size | 1 Inch |
| 9 | Feeding material | color steel coils |
| 10 | Feeding thickness | 0.3-0.8 mm |
| 11 | Productivity | 0-15/ min |
| 12 | Roll station | 13 roll steps (according to different design) |
| 13 | Roller diameter | 70 mm (depends on different design) |
| 14 | Roller material | 45# steel |
| 15 | Cutter material | Cr12 |
| 16 | Cr-plating size | 0.05 mm |

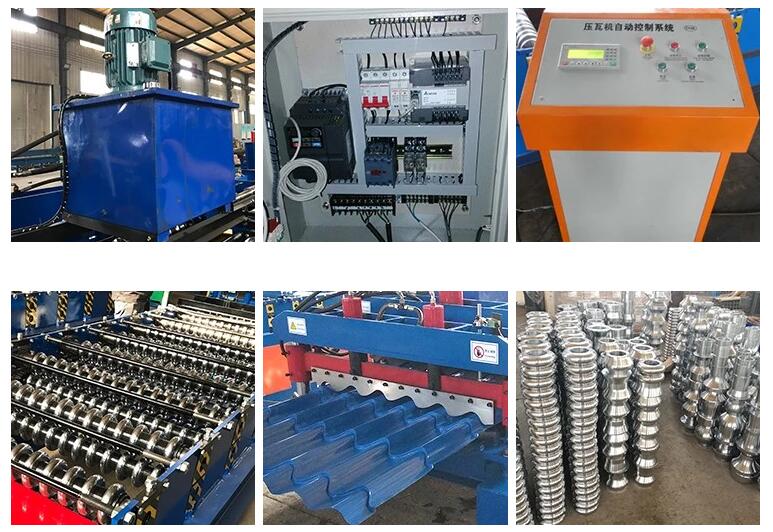

This machine is made up of roll forming machine, hydraulic cutting machine, hydraulic station, PLC control system, product rack.
Advantages of our roll forming machines
1, Our machine can use galvanized steel, color steel plate or aluminum plate as material board.
2, Using computer control, PLC display. Therefore the machine is easy to operate, stable and reliable operation, durable, maintenance-free.
3. We can manufacture and design various roll forming machines according to customer requirements.
Machine packaging and shipping details
Standard export packaging: 1 * 40 GP container.
The main machine is bare and fixed in the container with wire.
The rollers is oiled and packaged in plastic film.
Electronic equipment is packed in wooden cases.
