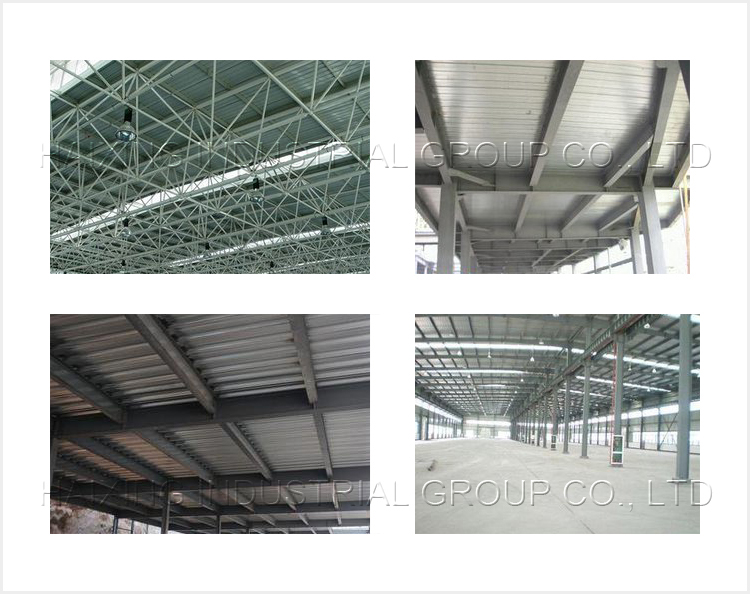

Applications of Cold Rolling Floor Deck Forming Machinery:
The finished products of Cold Rolling Floor Deck Forming Machinery are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.
Cold Rolling Floor Deck Forming Machinery main technical parameters:
|
Main Frame |
welded with 450H steel |
|
Middle plate |
18mm |
|
Forming machine guide feeding frame form |
side roller type |
|
Forming machine form |
wall plate chain drive |
|
Shaft diameter |
¢95 mm |
|
Chain size |
1.5 inches (Brand “Zhenghe”Imported Japan sprocket) |
|
Roll forming machine motor power |
2-15KW (Brand Siemens) |
|
Roll forming speed |
8-12m/min |
|
Rollers number |
27Rows |
Process Flow of Cold Rolling Floor Deck Forming Machinery:
Uncoiler -Feeding -Straightening-Roll Forming -Cutting-Exit Rack

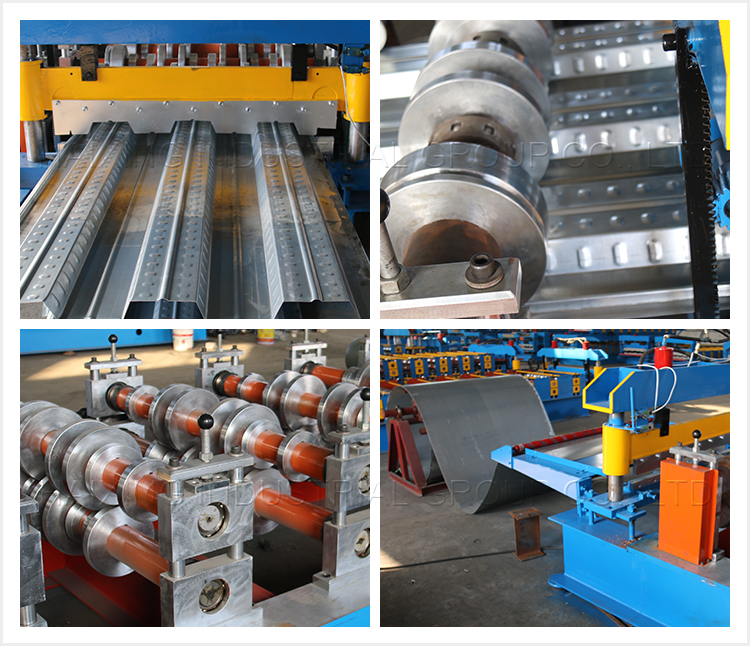

Cold Rolling Floor Deck Forming Machinery details:
Floor board features:
(1) Beautiful appearance, rich colors, flexible combination, can show different architectural styles.
(2) Lightweight (6~10 kg/m2), high strength (yield strength 250~550 MPa), excellent waterproof and shockproof.
(3) Convenient construction and installation, reducing installation, transportation workload and shortening the construction period.
(4) The raw steel sheet is part of the green building material and can be recycled.
(5) Excellent corrosion resistance and durability.
