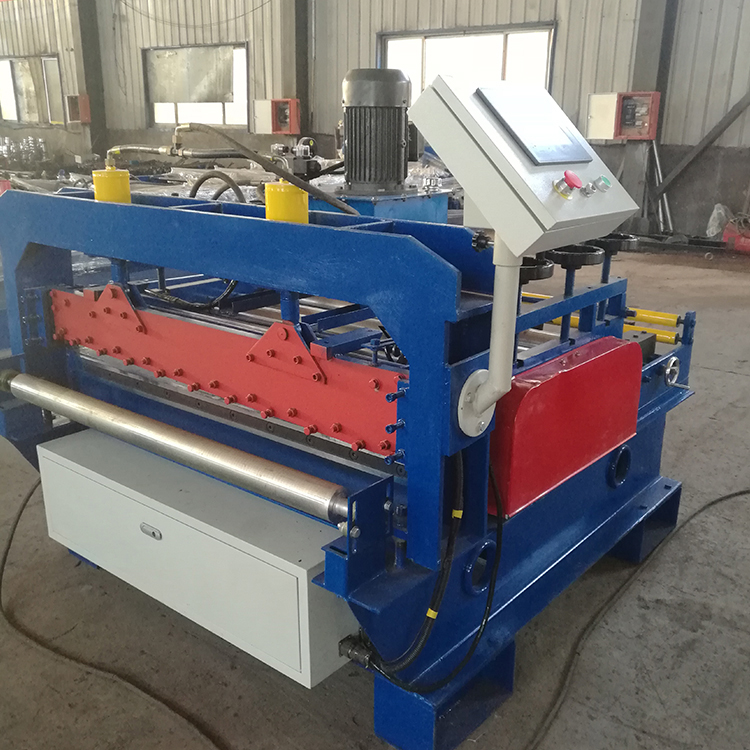

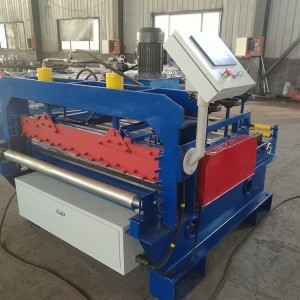

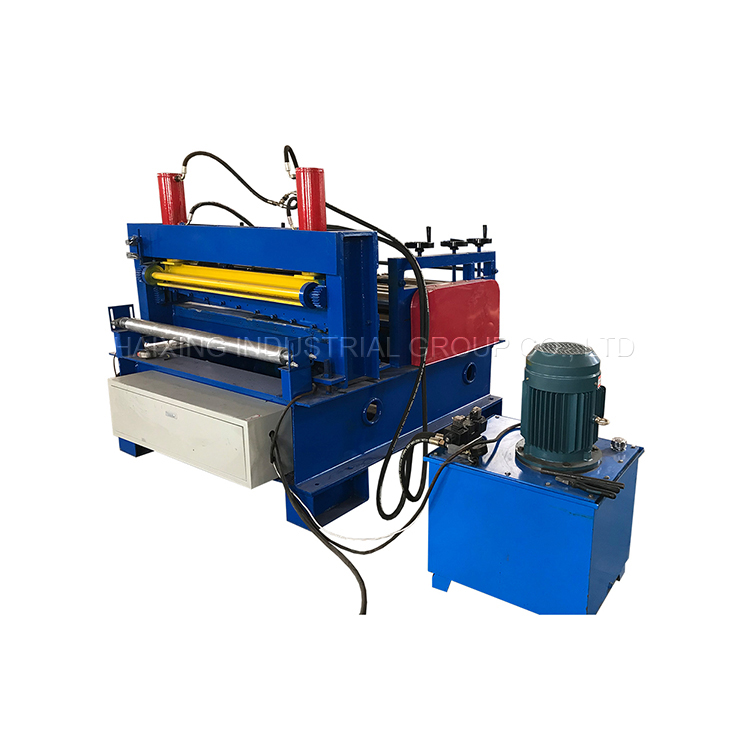

Cold Rolled Leveling Machine For Stainless Steel applications
The Coil Sheet Leveling Machine is mainly used to correct plates of various specifications and cut into pieces. This machine can be used for leveling various cold and hot rolled sheets.
Because of its convenient operation, the application of the Coil Sheet Leveling Machine covers many industries such as machinery, metallurgy, building materials, chemicals, electronics, electric power, light industry, etc., especially in shipbuilding, rolling stock, boiler bridges, metal structure factories and other industries.
Cold Rolled Leveling Machine For Stainless Steel parameters
| 1 | Suitable to process | PPGI, galvanized sheet |
| 2 | Thickness of raw material | Slitting: Max 0.8mmCutting: Max 3.0mm |
| 3 | Roller station | Up: 5 rollersDown: 6 rollers |
| 4 | Voltage | 380V, 50HZ, 3Phase |
| 5 | Main Frame | 350 H beams |
| 6 | Side panel thickness | 60mm |
| 7 | Diameter of shaft | 110mm |
| 8 | Chain size | 1.2 inch |
| 9 | Motor power | 7.5Kw |
| 10 | PLC | Automatic PLC control system |
| 11 | Transmission | Chain transmission |
| 12 | Machine size | 2500*2000*2000mm |
| 13 | Machine weight | About 2.8 tons |

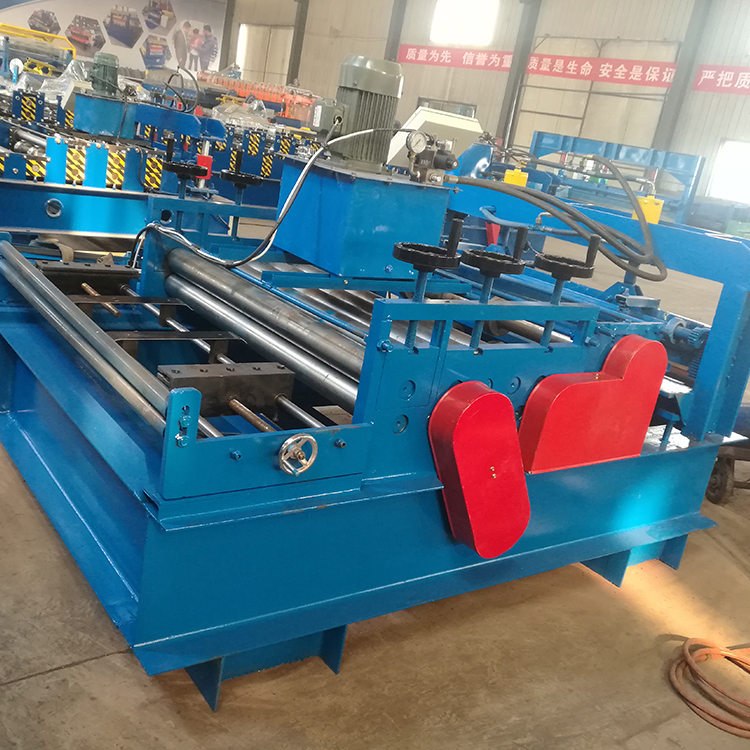

Cold Rolled Leveling Machine For Stainless Steel details
Packaging & Shipping
1). Tighten to container with steel wire rope and welded machine with container by angel iron.
2). Main forming machine and un-coiler are naked(If you need we can also packed with water-proof plastic).
3). PLC control system and motor pump are packed in wooden box with waterproof paper coverage.
