Chinese Professional Steel Profile C U Omega Villa Light Keel Roll Forming Machine Construction Building Machinery

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Dedicated to strict high-quality management and considerate shopper company, our experienced team associates are normally available to discuss your requirements and ensure full shopper gratification for Chinese Professional Steel Profile C U Omega Villa Light Keel Roll Forming Machine Construction Building Machinery, We believe that this sets us apart from the competition and makes shoppers choose and trust us. We all wish to make win-win deals with our buyers, so give us a contact today and create a new pal!
    Dedicated to strict high-quality management and considerate shopper company, our experienced team associates are normally available to discuss your requirements and ensure full shopper gratification for C U Light Steel Keel Roll Forming Machine, Construction Building Machinery, Steel Profile C U Omega Villa Light Keel Roll Forming Machine, The development of our company not only needs the guarantee of quality, reasonable price and perfect service, but also relies on our customer’s trust and support! In the future, we are going to continue with the most experienced and high quality service to offer the most competitive price, Together with our customers and achieve win-win! Welcome to inquiry and consult!
    Equipment components of C channel light steel keel making machine:

    Manual decoiling, roll forming machine, computer control system, hydraulic control system, cutting, run out table.



    Light steel keel roll forming machine parameters

    1 Main motor power 4kw/3 phase (or as your request)
    2 Hydraulic motor power 3kw
    3 Hydraulic pressure 10~12MPa
    4 Voltage 380V/3 phase/50HZ (or as your request)
    5 Control System PLC Delta /Panasonic/Siemens/
    6 Main Frame 300/350mm H-Beam
    7 Backboard Thickness 17/20mm
    8 Chain size 1/2inch
    9 Feeding material color steel coils
    10 Feeding thickness 0.18~0.8mm
    11 Feeding width Better as your profile or from our design
    12 Effective width Better as your profile or from our design
    13 Productivity 0-3min
    14 Roll station 11~20 roll steps(according to different design)
    15 Roller diameter 75mm (according to different design)
    16 Roller material 45#steel
    17 Cutter material Cr12
    18 Cr-Plating size 0.05mm
    19 Overall size 5000mm*1000mm*1500mm
    20 Total weight 2~12T

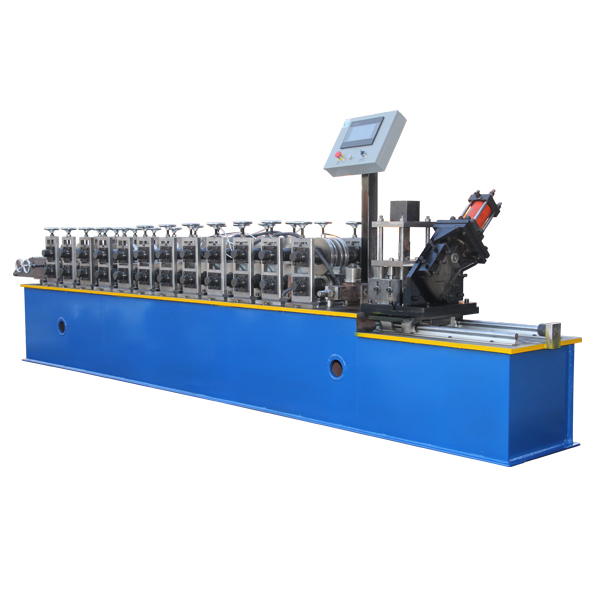

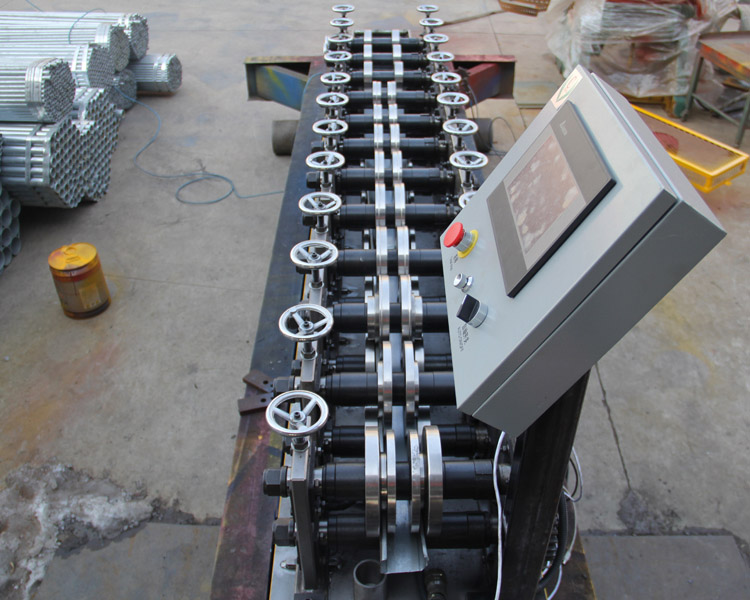

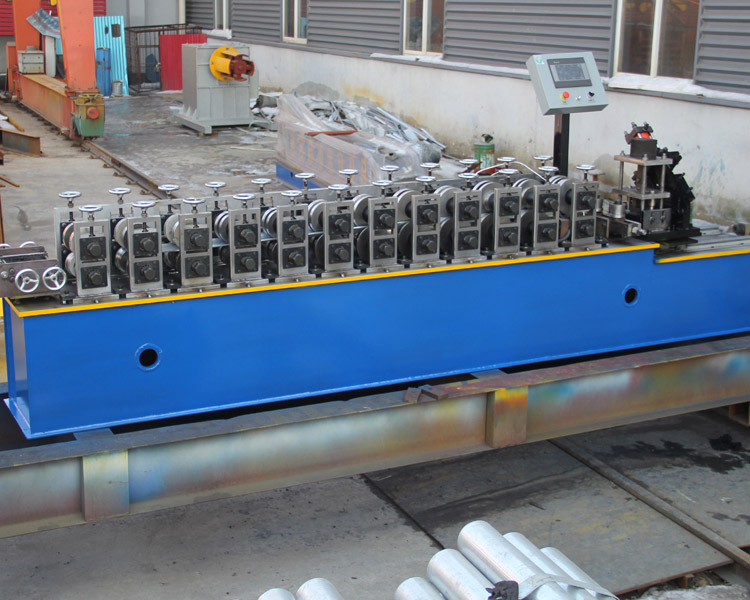

    C channel light steel keel roll forming machine picture display

    gdafd fadf

    Packaging Details

    1. Machine is covered by plastic film

    2. PLC control box, spare parts and other small parts are packed by wooden carton box.



    Terms:

    1. Delivery: within 60 days after receiving the deposit.

    2. Package: export standard package for container.

    3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
