China Factory for Electric Decoiler For 10 Ton - Double Roll Forming Machine Metal Roofing – Haixing Industrial Detail:

Double roll forming machine metal roofings can press two types of tiles of different versions. The automatic control system of the whole unit of the tile press adopts a highly integrated network to make the performance of the automation system superior.

Roof roll forming machine parameters

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter
6 Mainframe 300/350mm H-beam or 350mm
7 Backboard thickness 16mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1000mm
12 Effective width 840mm, 850mm
13 Productivity 0-15/min
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

The components of the tile press include: color steel tile machine, PLC computer control system, hydraulic pump station system, fully automatic rear shear system.

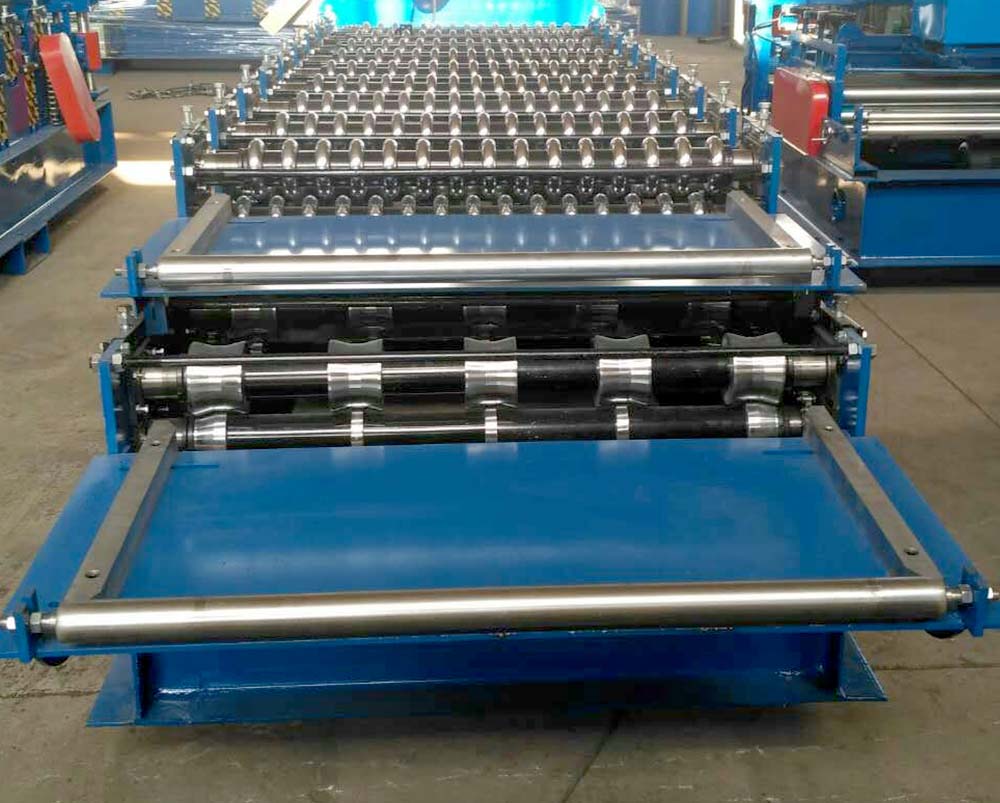

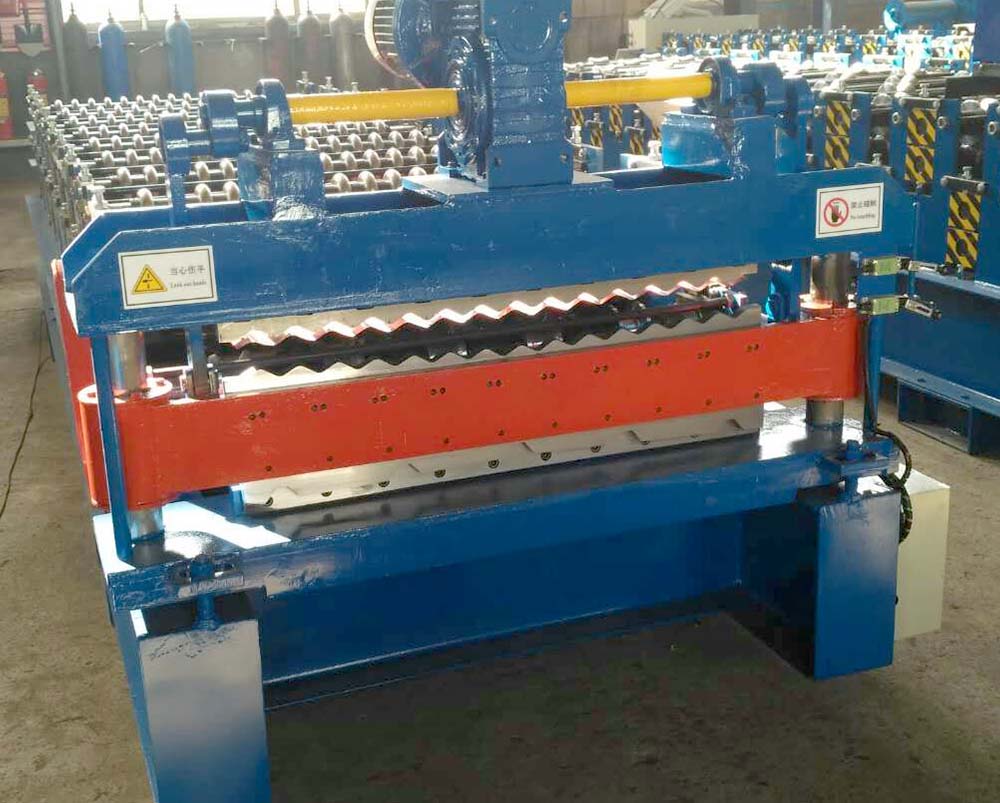

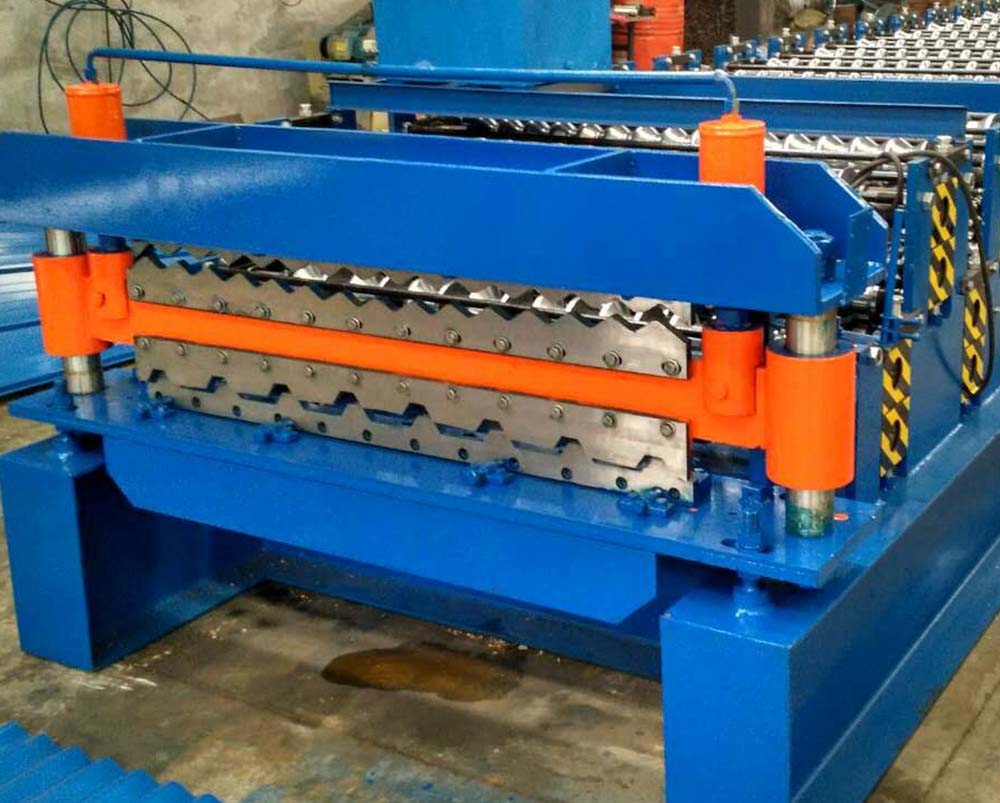

Machine picture display

double layer machine-corrugated and trapezoidal13 double layer machine-corrugated and trapezoidal12 double layer machine-corrugated and trapezoidal11

Packaging Details:

1. Machine is covered by plastic film.

2. PLC control box, spare parts and other small parts are packed by wooden carton box.

Terms:

1. Delivery: within 60 days after receiving the deposit.

2. Package: export standard package for container.

3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
