The finished product of Ceiling T Bar Forming Machine is widely used in the construction of various roof ceilings, industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
Ceiling T Bar Forming Machine Forming Device Technical Parameter
| Name | Specification |
| Rollers for forming | 16 Rows |
| Roller material | Cr12 |
| roller inner diameter | Φ40mm |
| roller outer diameter | minΦ90mm |
| heat treatment hardness | HRC58-62 |
| Symmetry | ≤0.05 |
| Motor power | 3kw |
| Transmission mode | chain drive + gear transmission |
| Side plate thickness | 25mm |
| Shaft material | 45# steel |
| Feeding positioning | Manual positioning, flexible adjustment at both ends |
| Control system | PLC programming controller, with the touch screen automatic control system |
| Stamp Die material | SKD11 |
| Stamp Die heat treatment hardness | HRC56-58 |
Other Parameters
Total power: 8.3kw
Forming Speed: 0～28m/min
Length after installation: 20m
Out table: Stainless operation table, bottom base is welded with an iron plate.

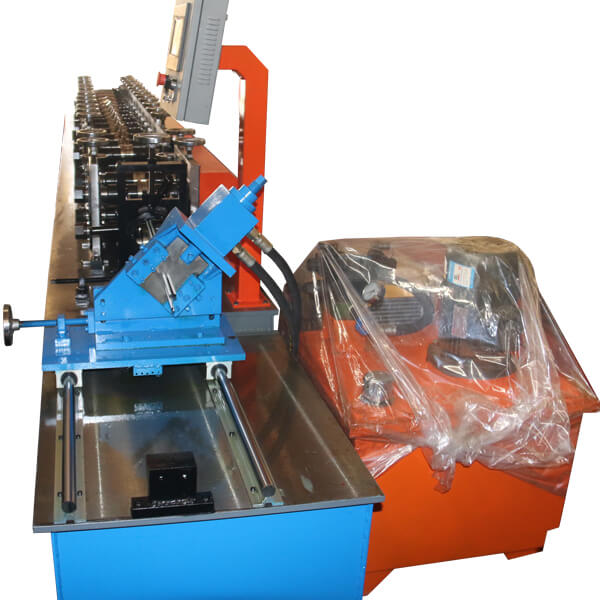

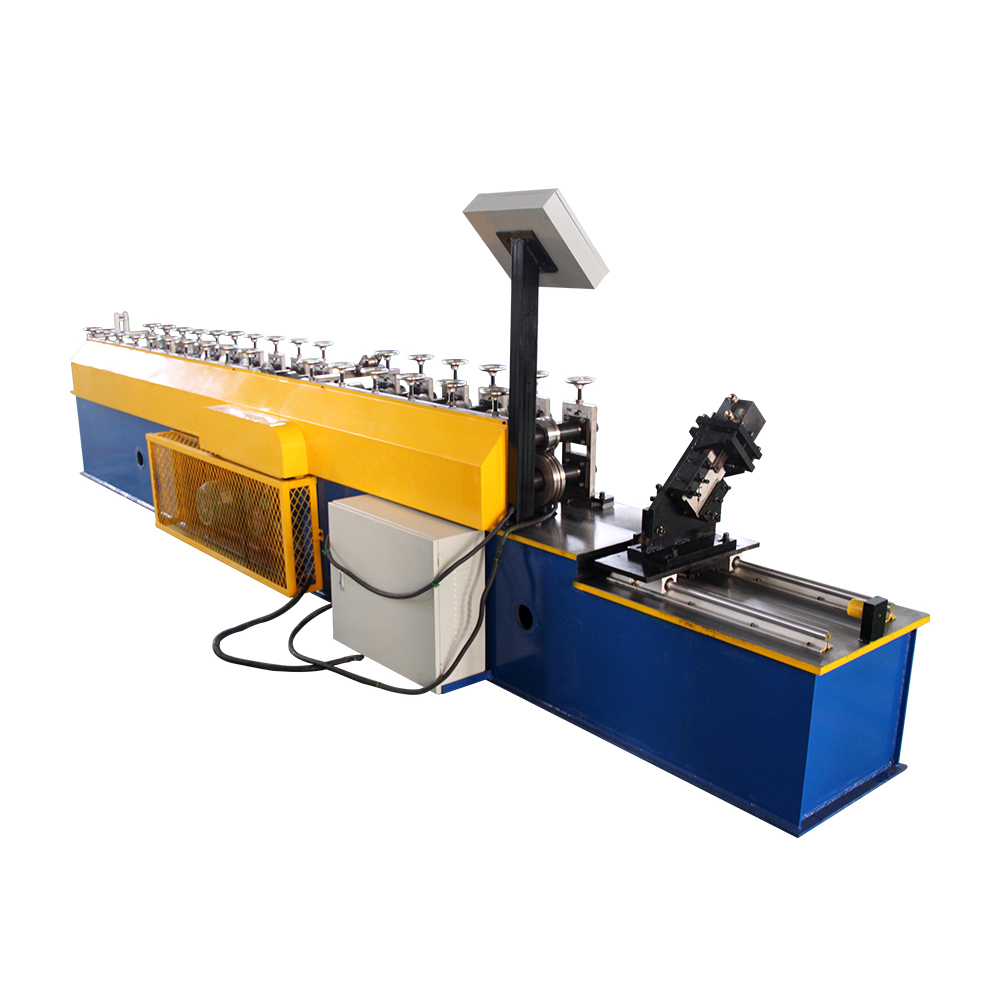

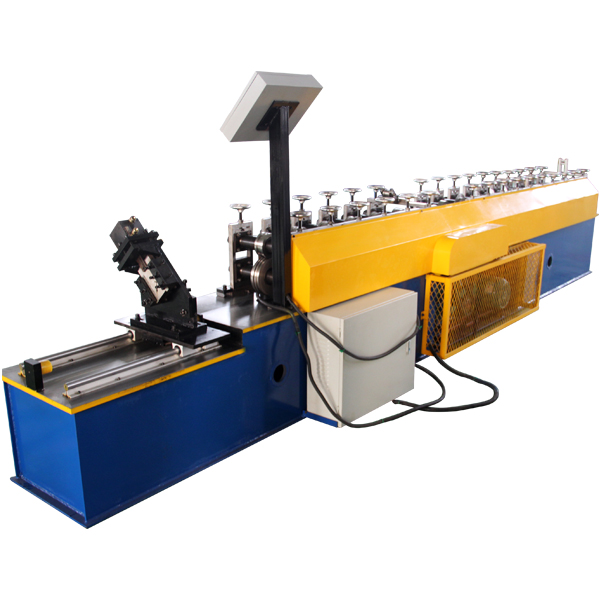

Ceiling T Bar Forming Machine details
Packaging details
Container packing of the line suitable for overseas shipping.
Free packaging for you;
Standard export packing: 20feet or 40 feet GP container; main false ceiling machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, the control box will be packed with carton box.
After Service
a. Two years guarantee for whole false ceiling machine.
b. 24 hours technical support by email or calling
c. If there is any problem found of the Ceiling T Bar Grids Forming Machine, we will repair it for free in one year.
