The finished product of C25 Roof roll forming machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc.
|
Roof roll forming machine parameters |
||
| 1 | Main motor power | 4kW, 3-phase or as your requests |
| 2 | Hydraulic motor power | 3kW |
| 3 | Hydraulic pressure | 10-12MPa |
| 4 | Voltage | 380V/3-phase/50Hz (or as your requirements) |
| 5 | Control system | PLC delta inverter |
| 6 | Mainframe | 300/350mm H-beam or 350mm |
| 7 | Backboard thickness | 16mm |
| 8 | Chain size | 1 Inch |
| 9 | Feeding material | color steel coils |
| 10 | Feeding thickness | 0.3-0.8mm |
| 11 | Feeding width | 1140mm |
| 12 | Effective width | 1050mm |
| 13 | Productivity | 0-15/min |
| 14 | Roll station | 13 roll steps (according to different design) |
| 15 | Roller diameter | 70mm (depends on different design) |
| 16 | Roller material | 45# steel |
| 17 | Cutter material | Cr12 |
| 18 | Cr-plating size | 0.05mm |
| 19 | Overall size | 6800*1400*1150mm |
| 20 | Total weight | 4.8 tons |
Components:
Manual un-coiler: 1 set
Guiding platform: 1 set
Coil strip leveler: 1 set
Main machine of roll forming: 1 set
Electric-motor: 1 set
Cutting device: 1 set
Hydraulic station: 1 set
PLC control: 1 set
Supporter table: 1 set

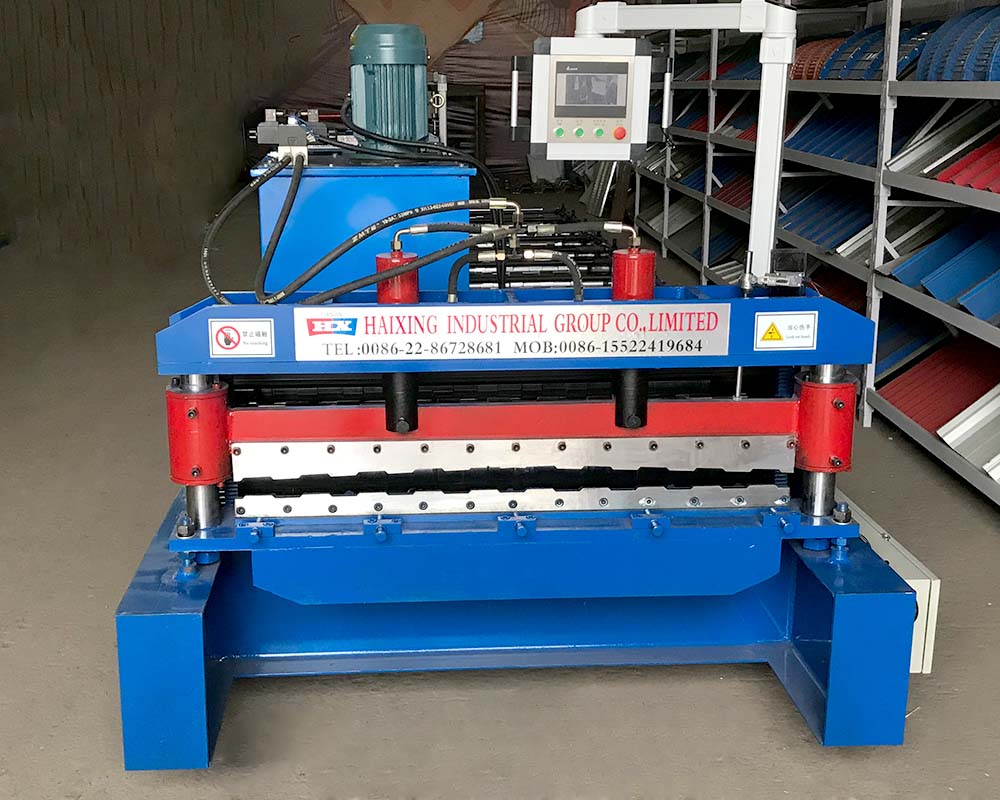

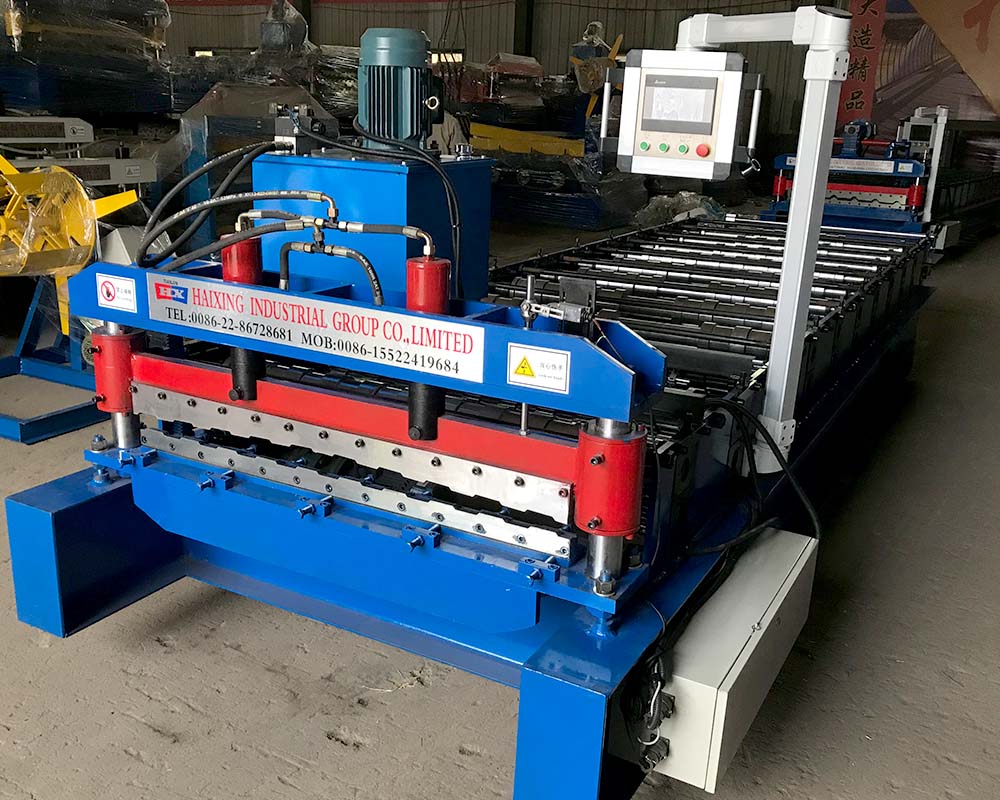

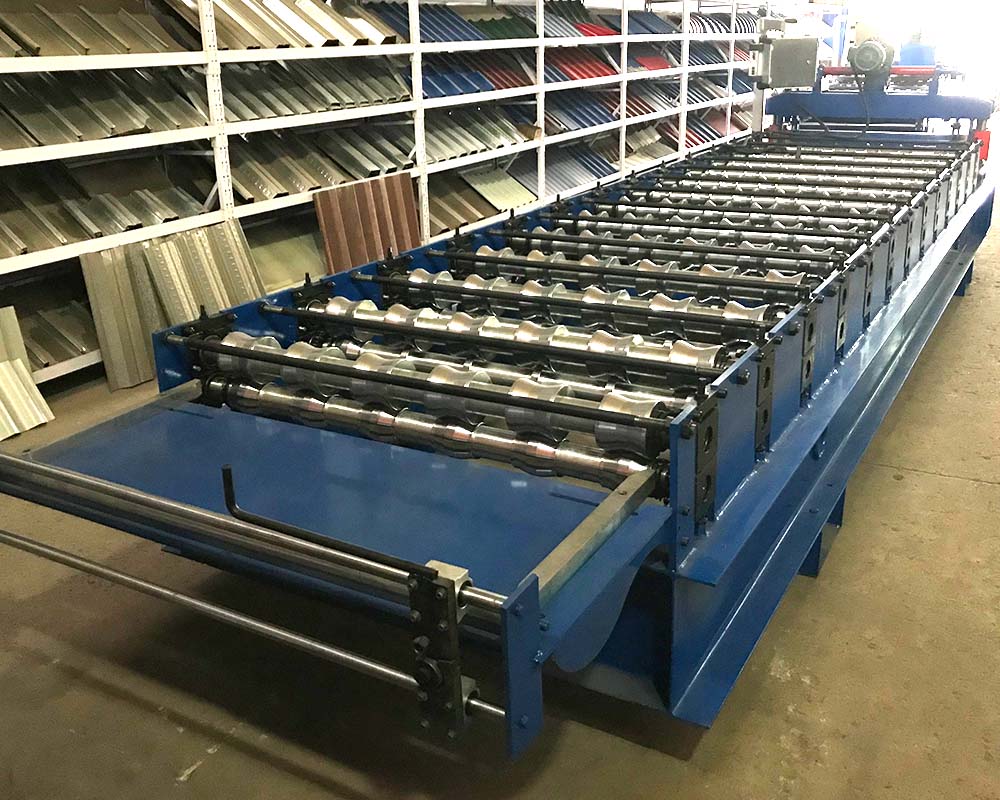

Machine details
Package and shipment details
Standard export packing: 1*40 GP container,main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.
The advantages of automatic roofing sheet roll forming machine:
1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
3.We can make and design will kinds of roll forming machine according to customer’s request.
