The c channel roll former c keel making machine is the main equipment for the production of light steel. It is formed by cold forming of steel or steel, and is rolled to produce light keels of various specifications.
|
Light steel keel roll forming machine parameters |
||
| 1 | Main motor power | 4kw/3 phase (or as your request) |
| 2 | Hydraulic motor power | 3kw |
| 3 | Hydraulic pressure | 10~12MPa |
| 4 | Voltage | 380V/3 phase/50HZ (or as your request) |
| 5 | Control System | PLC Delta /Panasonic/Siemens/ |
| 6 | Main Frame | 300/350mm H-Beam |
| 7 | Backboard Thickness | 17/20mm |
| 8 | Chain size | 1/2inch |
| 9 | Feeding material | color steel coils |
| 10 | Feeding thickness | 0.18~0.8mm |
| 11 | Feeding width | Better as your profile or from our design |
| 12 | Effective width | Better as your profile or from our design |
| 13 | Productivity | 0-3min |
| 14 | Roll station | 11~20 roll steps(according to different design) |
| 15 | Roller diameter | 75mm (according to different design) |
| 16 | Roller material | 45#steel |
| 17 | Cutter material | Cr12 |
| 18 | Cr-Plating size | 0.05mm |
| 19 | Overall size | 5000mm*1000mm*1500mm |
| 20 | Total weight | 2~12T |

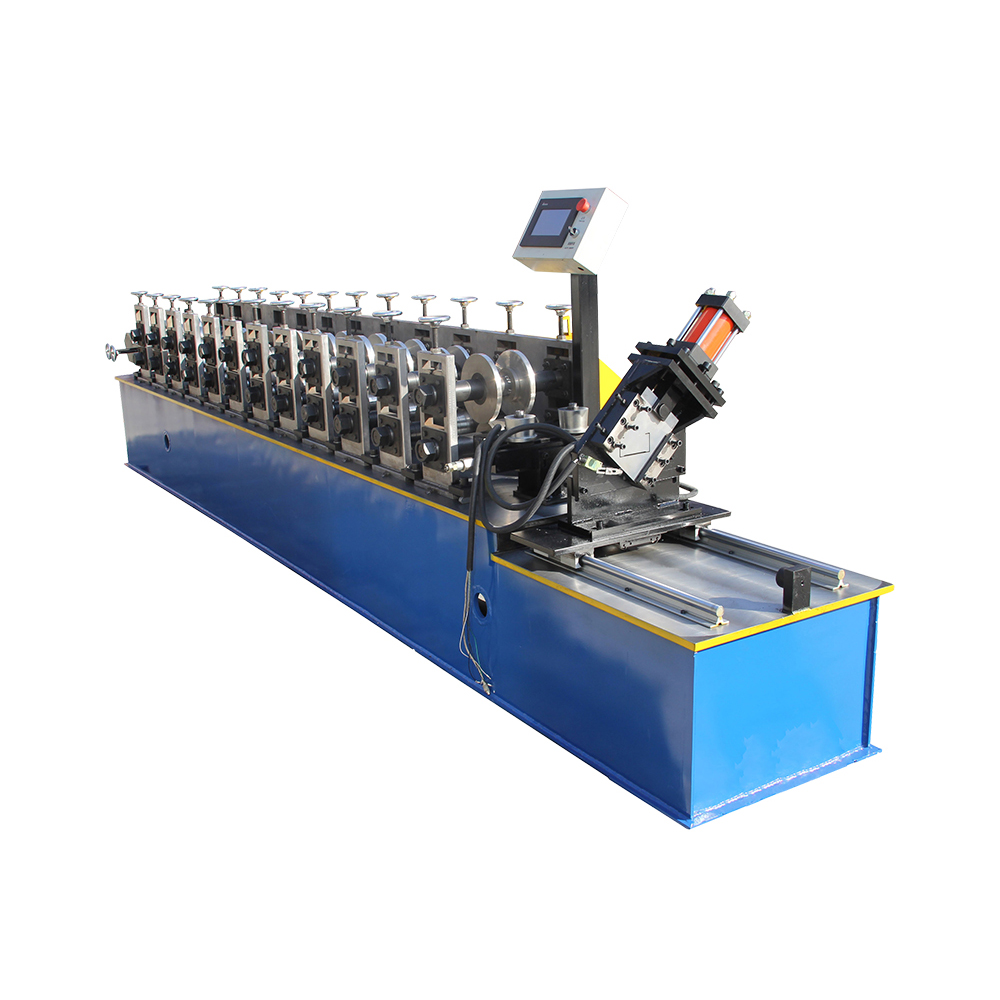

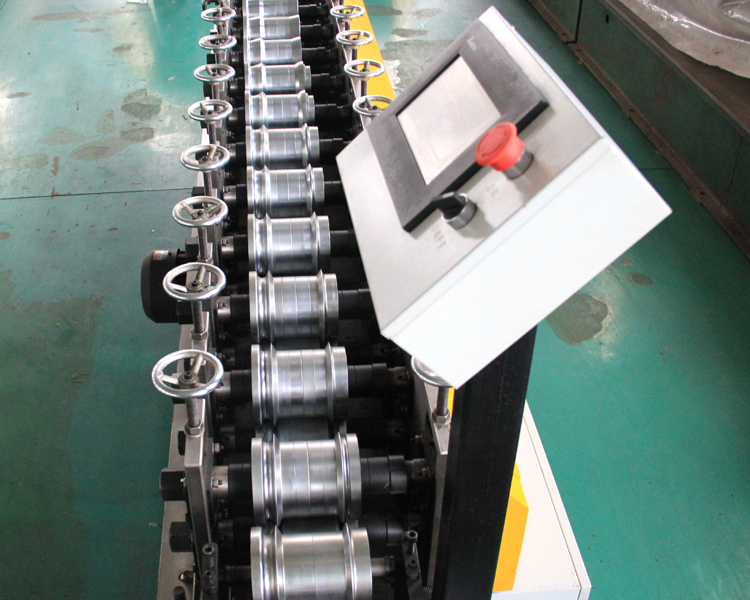

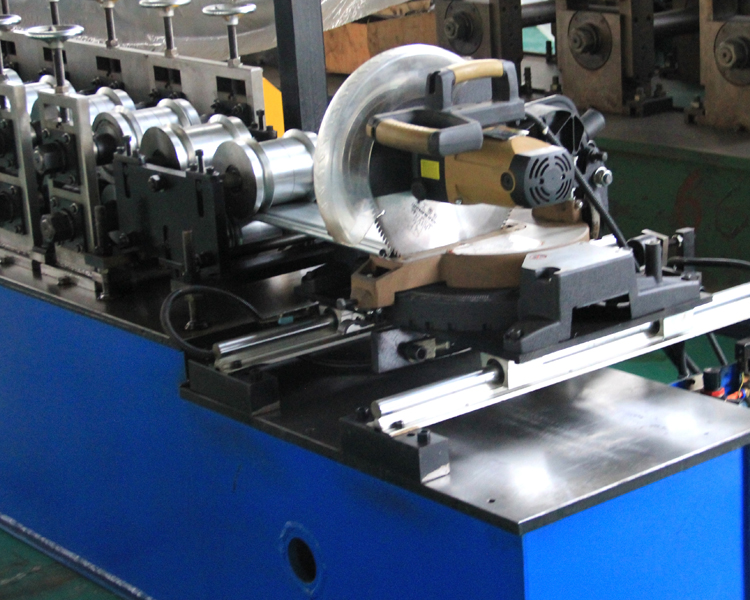

Ceiling c channel making machine picture display
Packaging Details：
1. Machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton box.
Terms:
1. Delivery: within 60 days after receiving the deposit.
2. Package: export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
Our Service Advantage
1. Professional: rich experience in product and export process!
2. Low price: Save your money from every part!
a. Low labor cost;
b. Convenient transportation;
c. Complete supporting industries.
