Haixing Industrial Group Co., Ltd. is the biggest and strongest in north China. Our automatic roll slitting machines are easy to operate and have high efficiency to Canada, South Korea, Prussia, Holland, Suriname, Sri Lanka, Malaysia, Vietnam, Nigeria,Tanzania, India, Mongolia, Armenia, Kazakhstan, Bolivia, Azerbaijan, etc.
The technical parameters of the machine are as follows:
| 1 | Suitable to process | PPGI, galvanized sheet |
| 2 | Thickness of raw material | Slitting: Max 0.8mmCutting: Max 2.0mm |
| 3 | Roller station | Up: 5 rollersDown: 6 rollers |
| 4 | Voltage | 380V,50HZ,3Phase |
| 5 | Main frame | 350 H beams |
| 6 | Side-wall thickness | 40mm |
| 7 | Diameter of shaft | ¢90mm |
| 8 | Chain size | 1 Inch |
| 9 | Motor power | 3kw(Siemens) |
| 10 | Touch screen/PLC | Siemens |
| 11 | Transmission | Gear transmission |
| 12 | Machine size | 2200x2000x2000m |
| 13 | Machine weight | About 2Tons |

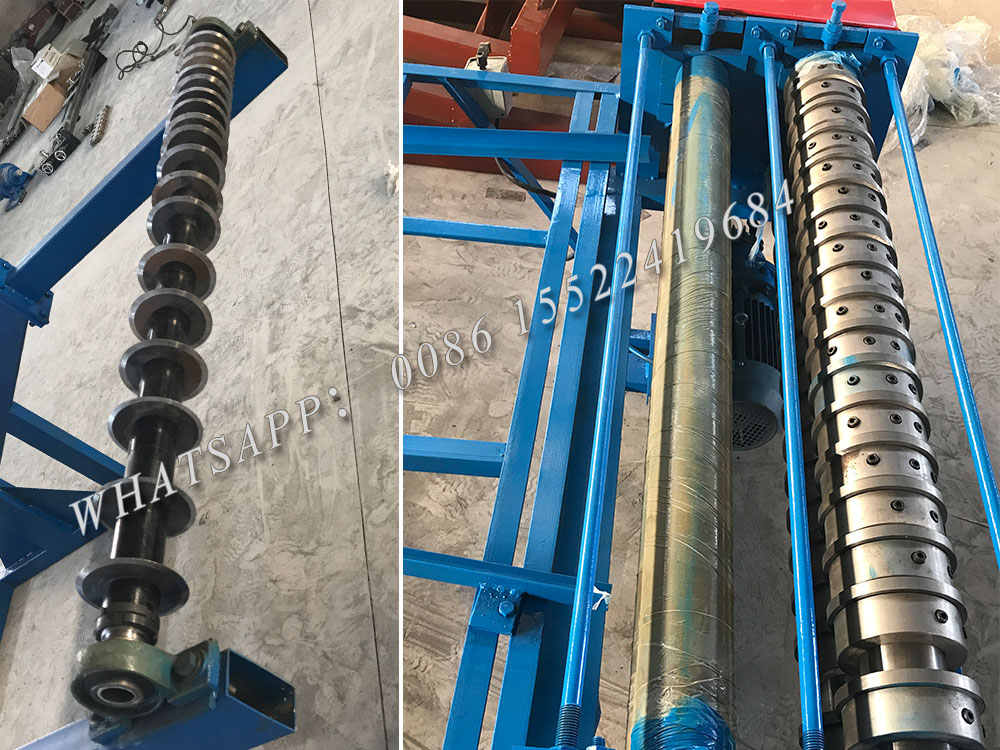

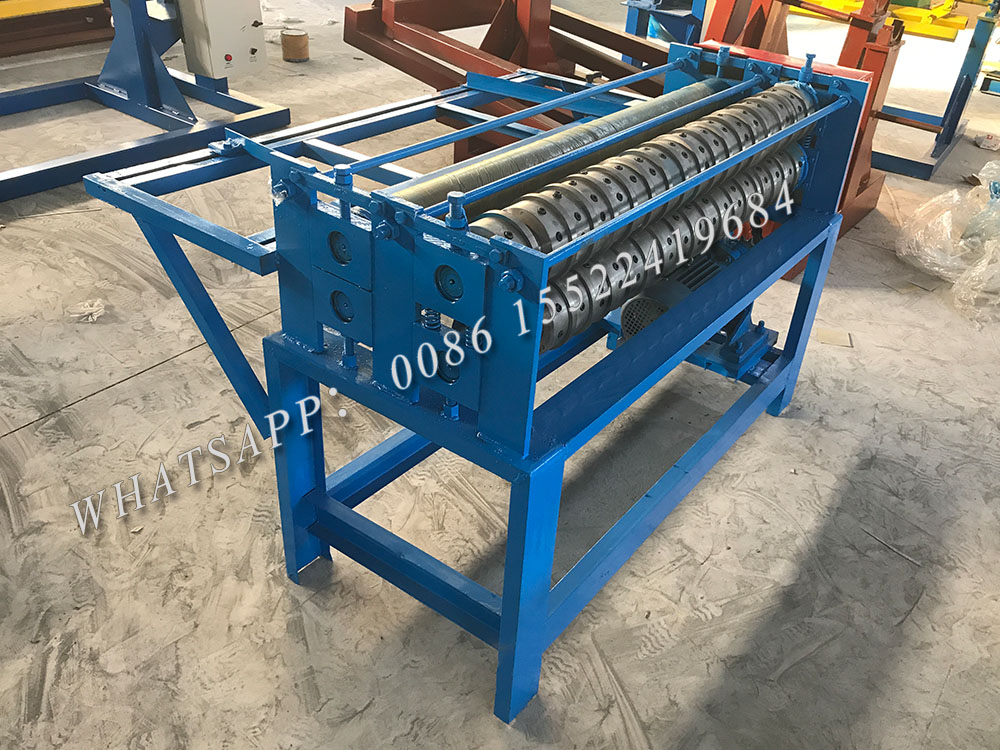

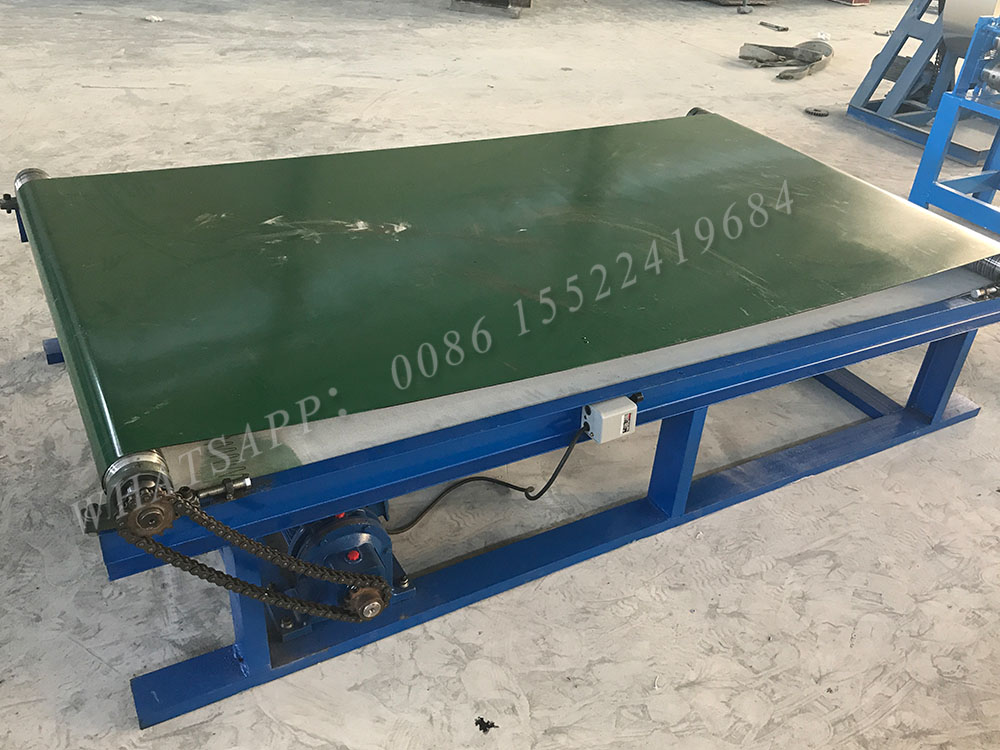

Machine details
Terms:
1. Delivery: within 60 days after receiving the deposit.
2. Package: export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
Our Service
1, We have good and professional team;
2, We accept any drawings or your samples to develop new product;
3, Any small problems will be solved at the most prompt time;
4,We always offer relative technical support,quick response, all your inquire will replied within 24 hours.
