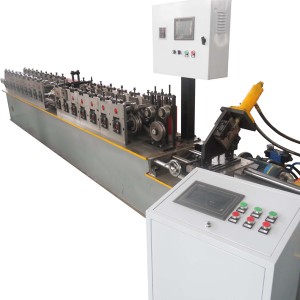

Automatic Main Tee Cross Making Machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Automatic Main Tee Cross Making Machine Forming Device Technical Parameter

    Name Specification
    Rollers for forming 16 Rows
    Roller material Cr12
    roller inner diameter Φ40mm
    roller outer diameter minΦ90mm
    heat treatment hardness HRC58-62
    Symmetry ≤0.05
    Motor power 3kw
    Transmission mode chain drive + gear transmission
    Side plate thickness 25mm
    Shaft material 45# steel
    Feeding positioning Manual positioning, flexible adjustment at both ends
    Control system PLC programming controller, with the touch screen automatic control system
    Stamp Die material SKD11
    Stamp Die heat treatment hardness HRC56-58

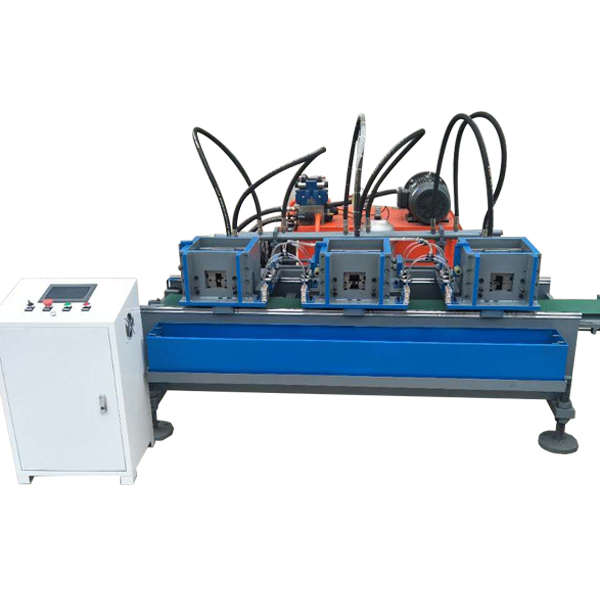

    Automatic Main Tee Cross Making Machine details

    T grid machine det1

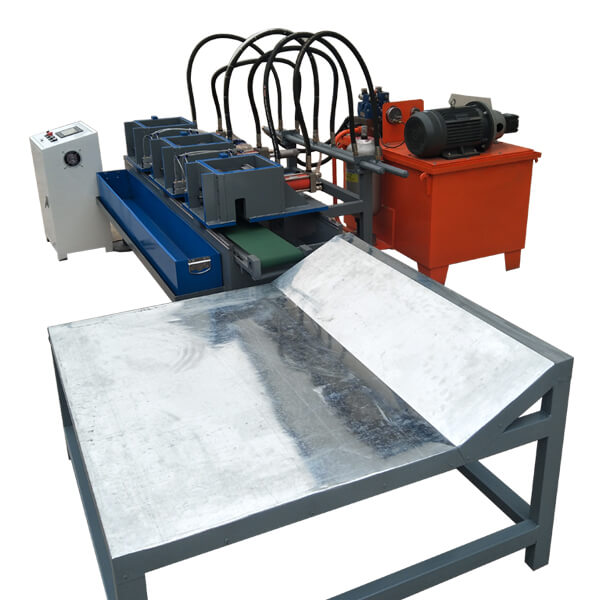

    Automatic Main Tee Cross Making Machine’s out table uses Stainless operation table, bottom base is welded with iron plate.

    Light Steel Keel Forming Machine Advantage

    1. Good quality: We have a professional designer and experienced engineer team. And the raw material and accessories we use are good.

    2.Good service: we provide technical support for the whole life of our machines.

    Automatic Main Tee Cross Making Machine Packaging details

    Container packing of the line suitable for overseas shipping.

    Free packaging for you;

    Standard export packing: 20feet or 40 feet GP container; main false ceiling machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, the control box will be packed with carton box.

    After Service

    a. Two years guarantee for whole false ceiling machine.

    b. 24 hours technical support by email or calling

    c. If there is any problem found of the Automatic Ceiling T Grid T Bar Machinery, we will repair it for free in one year.

    Company Information

    We have profuse designs with the series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source.

    Our first focus is the quality improvement and customer’s satisfaction, we have exported the products to Africa, South America, Russia, India, Pakistan, Southeast Asia, etc. the customers of domestic and foreign evaluate highly for our stable quality and cost-effective.

    We are waiting for you!

    FAQ

    Q: Do you sell only standard machines?

    A: No, most of our machines are built according to customers specifications, using top brand name components.

    Q: Can you make the machine according to my design or prototype?

    A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

    Q: How can we be assured that you will deliver us quality machine with spare parts?

    A:1. Customers to send the technical people to our factory for checking the quality.

    2. We can send the technicians to the buyer`s factory for the installation of the machine.

    3. Good aftersales-service, its free of charge during the warranty period.
