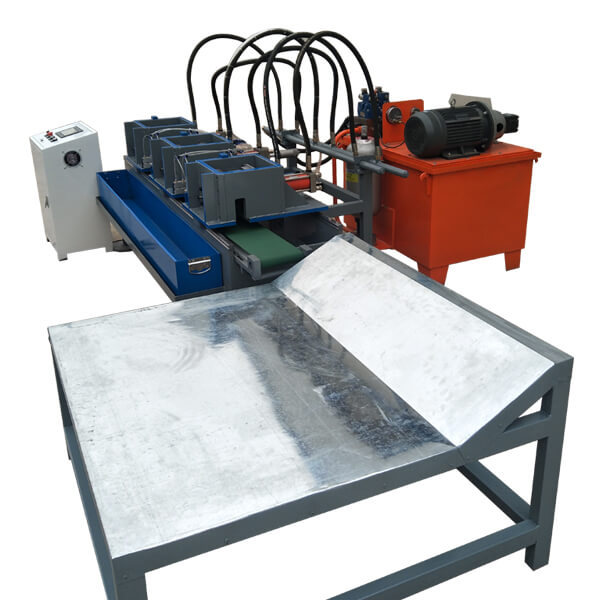

Auto Cross T Section Steel Grid Panel Roll Forming Machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Auto Cross T Section Steel Grid Panel Roll Forming Machine Quick Details

    Material Colored steel sheet, galvanized steel sheet, aluminum sheet
    Thickness of coil sheet 1.0-2.0mm
    Efficiency width 25/30mm
    Roller material High grade NO. 45 forged steel with 0.05mm hard chrome plating
    Shaft material High grade NO. 45 carbon wrought steel
    Cutting blade Cr12 mould steel with quenched treatment
    Diameter of shaft 70mm or as your requirement
    Main frame 300 H steel
    Forming steps 16 stations
    Productivity 30-35m/min
    Hydraulic station power 5.5 KW
    Hydraulic pressure 10-12MPa
    Appearance size 7700mm*1500mm*1500mm
    Hydraulic oil 40# hydraulic oil
    Electric tension 380V 50 Hz 3 Phase or as your requirement
    Cut Mode Hydraulic forming after cutting off
    Cutter materia Cr12 Heat Treatment
    Electronic control system PLC, Touch Screen, Encoding counter
    Color Blue, green or yellow or as your requirement
    Rolling material 45# steel,roller surfaces polishing, hard plating

    Auto Cross T Section Steel Grid Panel Roll Forming Machine Details

    U steel keel machine2 U steel keel machine8 U steel keel machine6

    Installation and training services:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

    B. Without visiting, we will send you user manual and video to teach you to install and operate.

    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

    Auto Cross T Section Steel Grid Panel Roll Forming Machine Advantage

    1. Good quality: We have a professional designer and experienced engineer team. And the raw material and accessories we use are good.

    2.Good service: we provide technical support for the whole life of our machines.

    FAQ

    Q: Are you a trading company or a factory?

    A: We are factory with the professional production team and service consciousness just for exporting various types of cold roll forming machines.

    Q: How long does it take to produce the machine?

    A: Generally speaking, the machine can be completed within 20~45 working days. But if you need machines urgently, we can do our best to save you time.

    Q: What can you do if the machine is broken?

    A: The warranty period of our machine is 14 months, if the damaged parts can not be repaired, we can send new parts to replace the damaged parts for free, but you need to pay the courier fee yourself. If after the warranty period, we can resolve the issue through negotiation, we provide technical support for the entire life cycle of the device.
