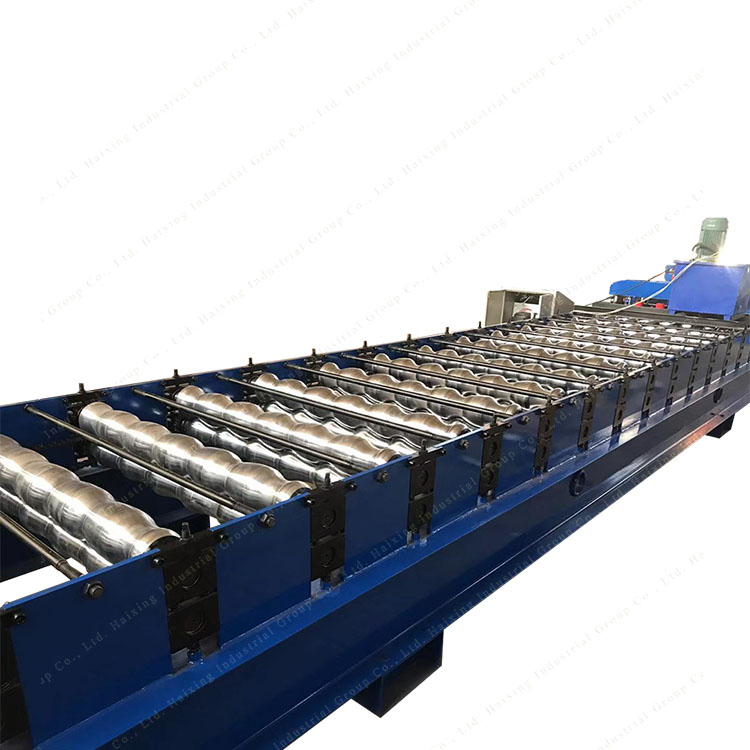

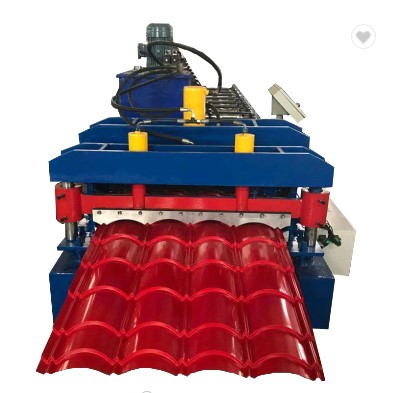

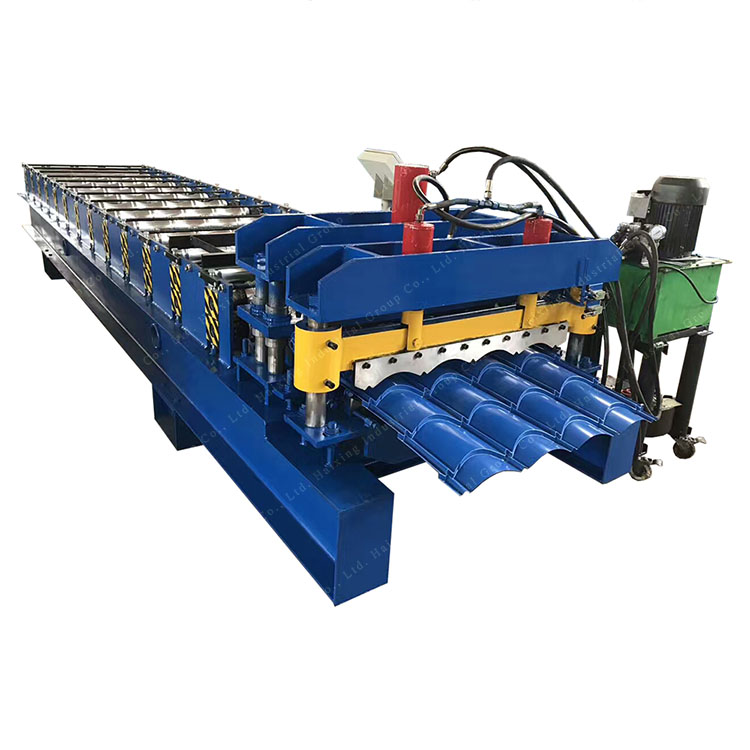

Roof roll forming machine parameters |
||
|
1 |
Main motor power |
4kW, 3-phase or as your requests |
|
2 |
Hydraulic motor power |
3kW |
|
3 |
Hydraulic pressure |
10-12MPa |
|
4 |
Voltage |
380V/3-phase/50Hz (or as your requirements) |
|
5 |
Control system |
PLC delta inverter |
|
6 |
Mainframe |
300/350mm H-beam or 350mm |
|
7 |
Backboard thickness |
16mm |
|
8 |
Chain size |
1 Inch |
|
9 |
Feeding material |
color steel coils |
|
10 |
Feeding thickness |
0.3-0.8mm |
|
11 |
Effective width |
according to different design |
|
12 |
Productivity |
0-15/min |
|
13 |
Roll station |
13 roll steps (according to different design) |
|
14 |
Roller diameter |
70mm (depends on different design) |
|
15 |
Roller material |
45# steel |
|
16 |
Cutter material |
Cr12 |
|
17 |
Cr-plating size |
0.05mm |
|
18 |
Overall size |
6800*1400*1150mm |
|
19 |
Total weight |
4.8 tons |
Components:
Manual decoiler: 1 set
Guiding platform: 1 set
Coil strip leveler: 1 set
Main machine of roll forming: 1 set
Electric-motor: 1 set
Cutting device: 1 set
Hydraulic station: 1 set
PLC control: 1 set
Supporter table: 1 set
